Step 2

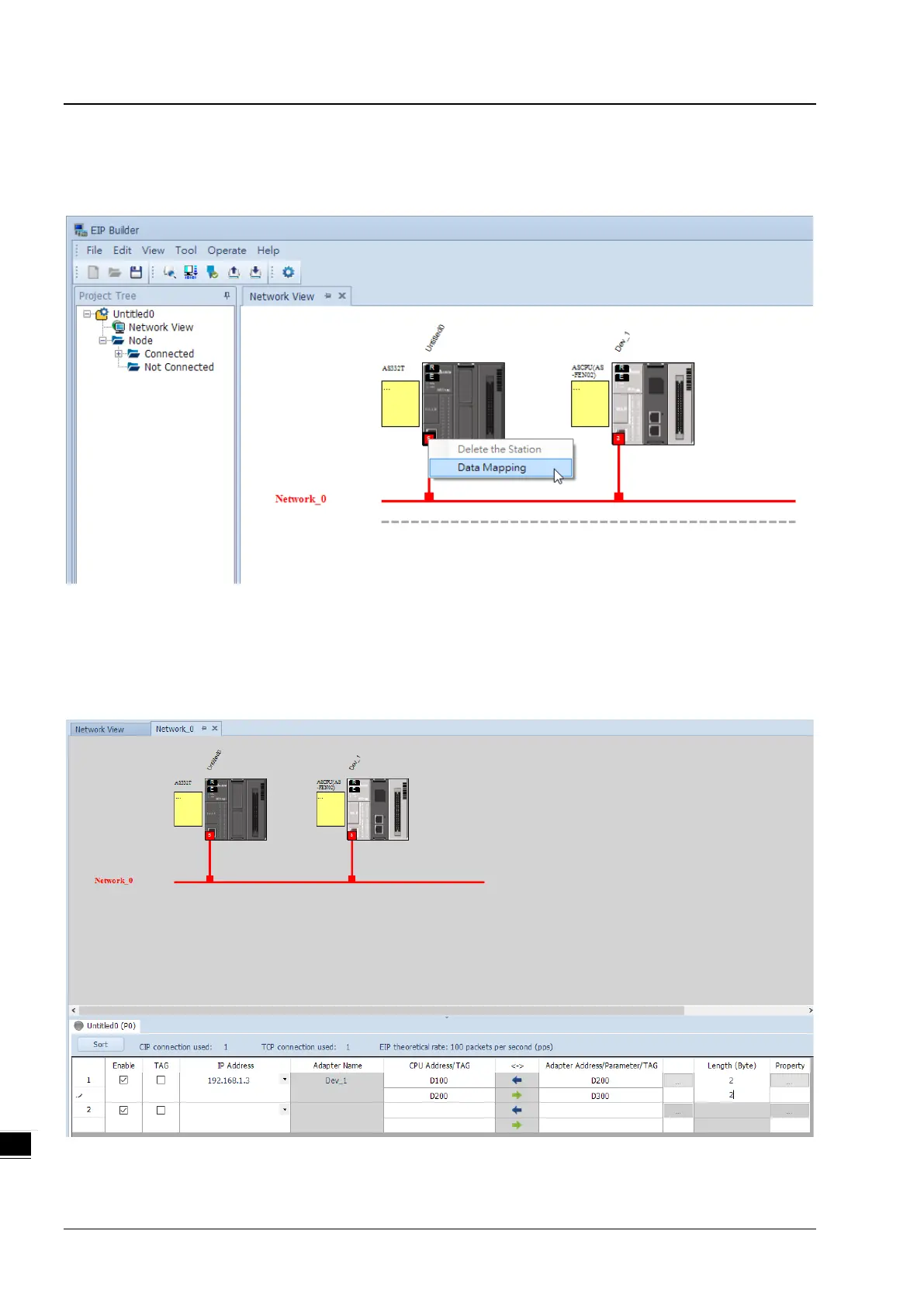

Right click the Scanner’s communication port (red spot) and select Data Mapping from the menu. Data mapping table
appears for editing.
Step 3
Editing the data mapping table. You can enter the starting register address and the data length for data mapping between
the scanner and adapter. The unit for data length is byte. As the below example shows the value in the scanner’s D200 is
written by the data from the adapter’s D300. Read data from the adapter’s D200 and store the data in the scanner’s
D100.

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
