Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-103
1
1

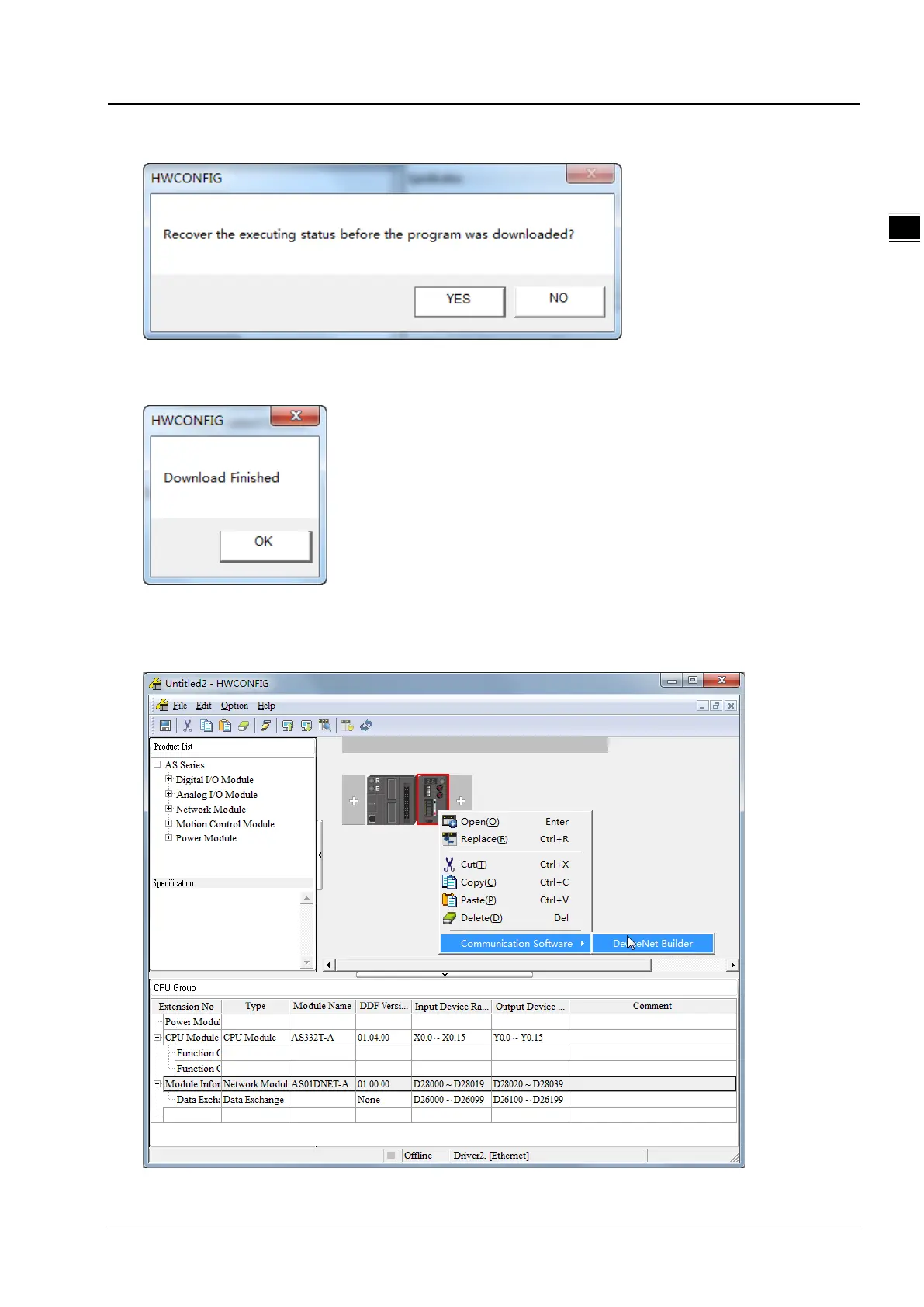

Meanwhile the following dialog box pops out. Click the Yes button.
11. The following dialog box appears to show that the download has been finished.
12. Return to the HWCONFIG window and right-click AS01DNET module to make the drop-down menu pop out. Select
Communication Software >> DeviceNet Builder from the menu.
