Delta ASDA-B2 Series User Manual

Chapter 6 Control Modes of Operation ASDA-B2
6-8 Revision May, 2018

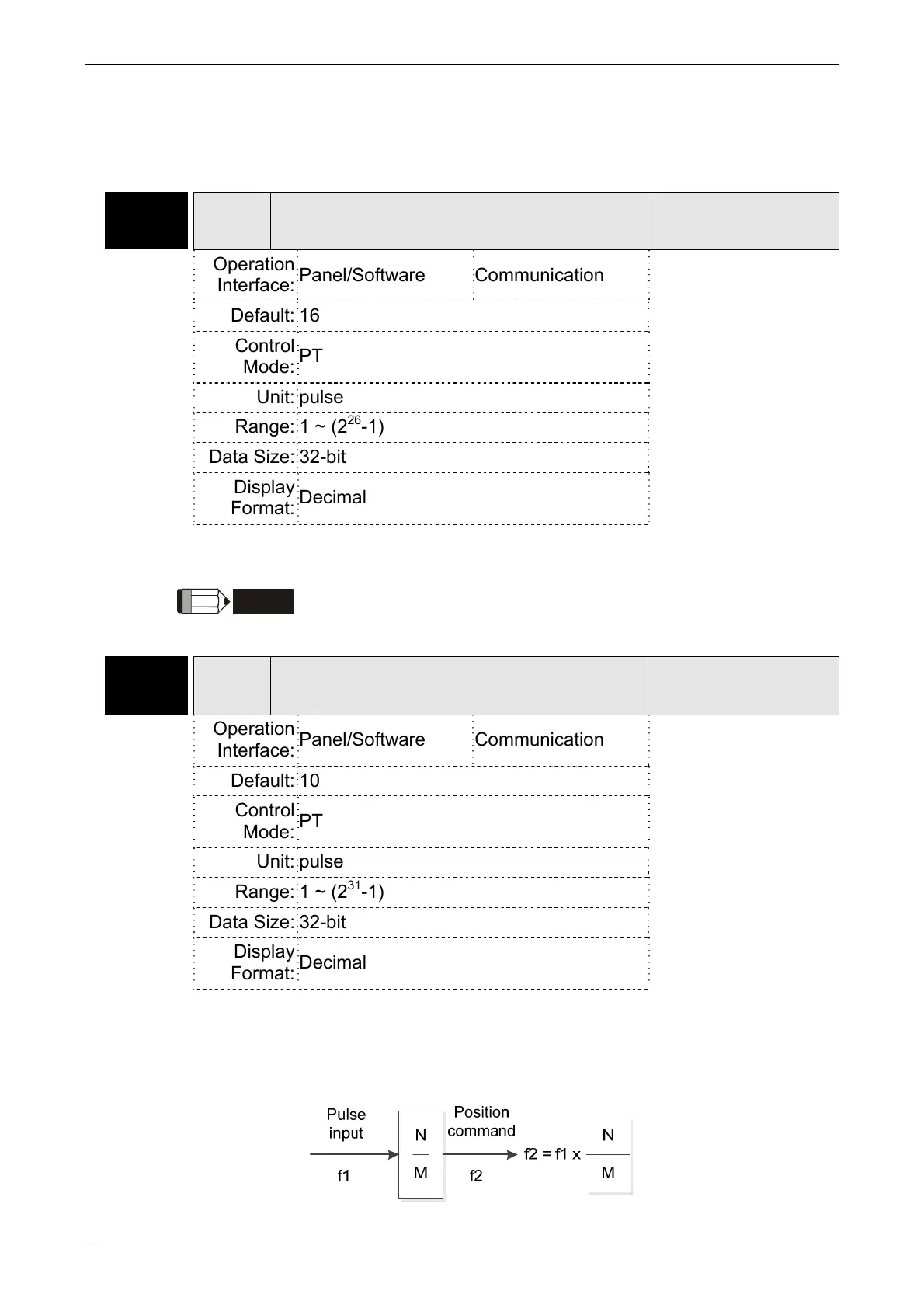

6.2.3 Electronic Gear Ratio
Related parameters:
P1-44▲
GR1 Electronic Gear Ratio (Numerator) (N1)
Address: 0158H
0159H
Operation
Interface:
Panel/Software Communication
Related Section:
Section 6.2.3
Default: 16
Control
Mode:
PT
Unit: pulse
Range: 1 ~ (2
26
-1)
Data Size: 32-bit
Display
Format:
Decimal
Settings:
Please refer to P2-60 ~ P2-62 for the setting of multiple gear ratio (numerator).
NOTE
PT mode, the setting value can be changed when Servo ON.
P1-45▲
GR2 Electronic Gear Ratio (Denominator) (M)
Address: 015AH
015BH
Operation
Interface:
Panel/Software Communication
Related Section:
Section 6.2.3
Default: 10
Control
Mode:
PT
Unit: pulse
Range: 1 ~ (2
31
-1)
Data Size: 32-bit
Display
Format:
Decimal
Settings: If the setting is wrong, the servo motor will easily have sudden
unintended acceleration.
Please follow the rules for setting:
The setting of pulse input:
