ASDA-B2 Chapter 3 Wiring
Revision May, 2018 3-27
3.3.3 Wiring Diagrams (CN1)
The valid voltage range of analog input command in speed and torque mode is -10V ~+10V.
The command value can be set via relevant parameters.

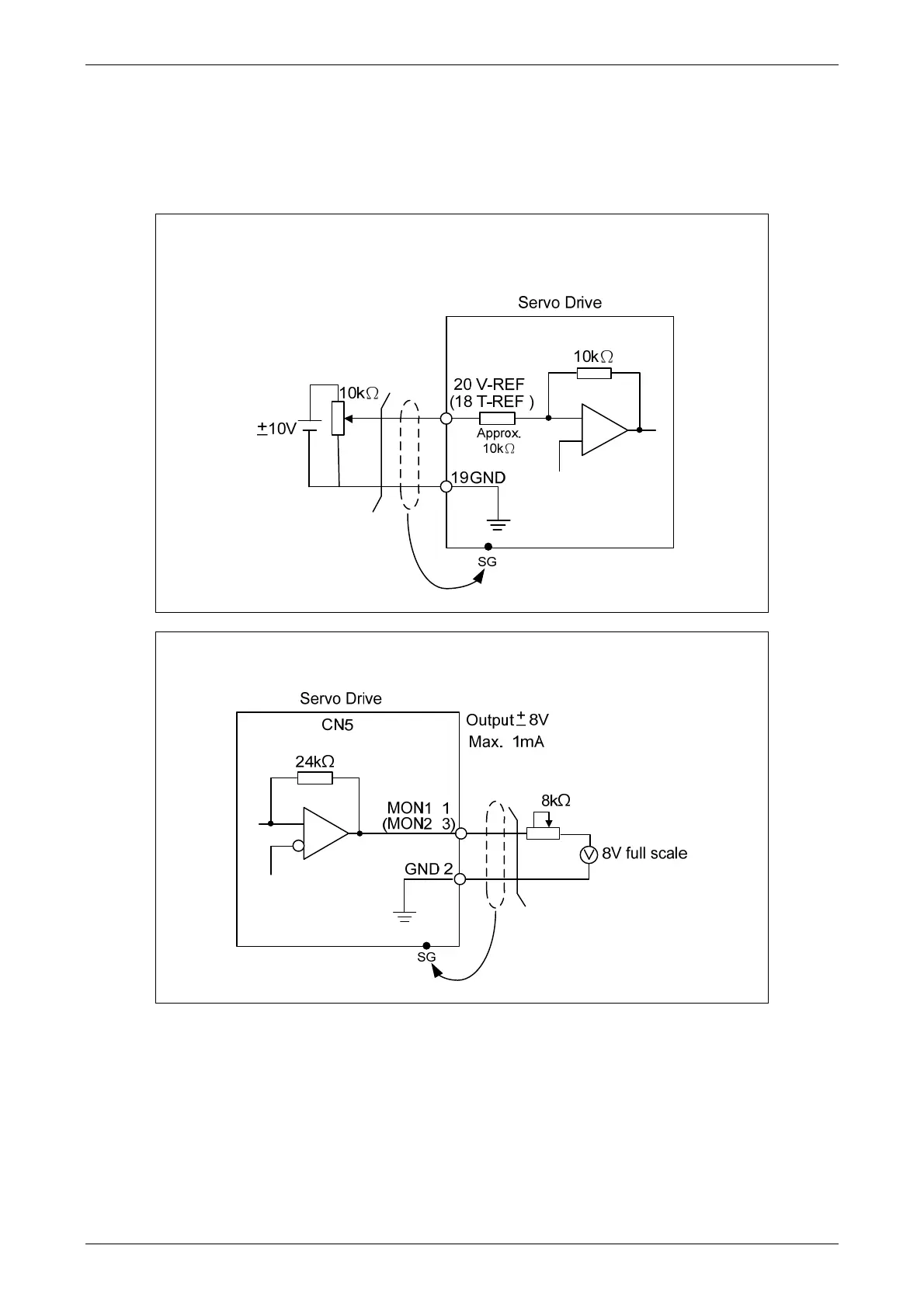

C1: Speed / Torque analog signal input
C2: Analog monitor output (MON1, MON2)
