ASDA-B2 Chapter 4 Panel Display and Operation
Revision May, 2018 4-3

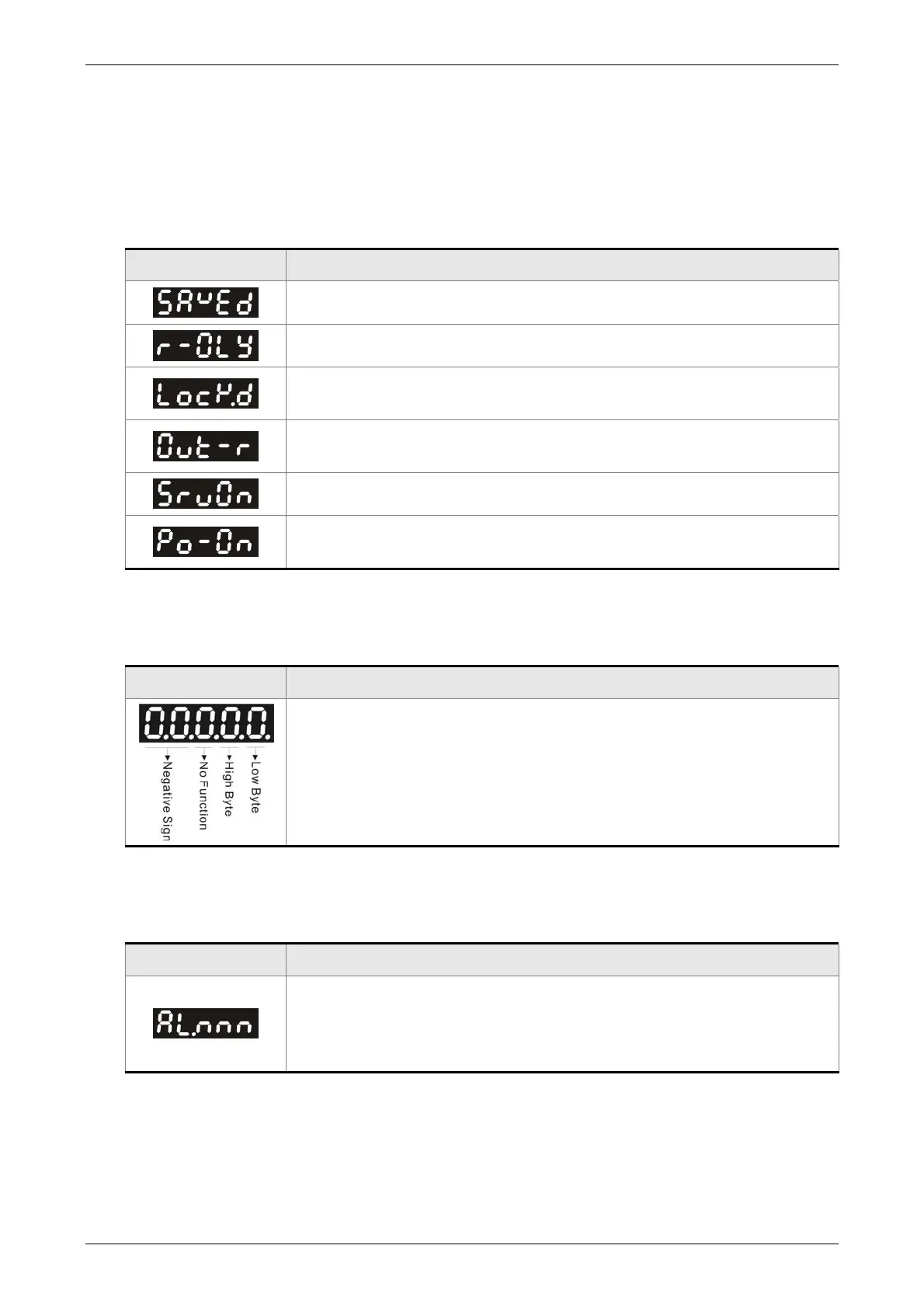

4.3 Status Display
4.3.1 Save Setting Display
When finishing editing parameter, press the SET Key to save the setting. The panel will
display the setting status according to the setting for a second.
Display Symbol Description
The setting value is saved correctly. (Saved)
Read-only parameter. Write-protected. (Read-Only)
Enter the wrong password or no password has been entered.
(Locked)
Incorrect setting value or enter the reserved setting value. (Out of
Range)
No entering is allowed when it is Servo ON. (Servo On)
Parameter will be effective after the servo drive is re-powered on.
(Power On)
4.3.2 Decimal Point
Display Symbol Description
High byte / low byte indication: When the data is displayed in
decimal 32 bits, it is for indicating the current high or low byte.
Negative sign: When the data is displayed in decimal format, the
two decimal points in the left represents the negative sign, no
matter it is showed in 16 or 32 bits. When it is showed in
hexadecimal format, it only shows positive sign.
4.3.3 Alarm Message
Display Symbol Description
When there is an error of the drive, it will show ‘AL’ as the alarm
sign and ‘nnn’ as the alarm code. For further explanation, please
refer to Chapter 7, P0-01, parameter description, or Chapter 9,
Troubleshooting.
