4 Product overview
Scope of delivery
Installation and Operation Manual for Solar Power Inverter M70A EU V1.1 EN 2020-02-20
10
4. Product overview

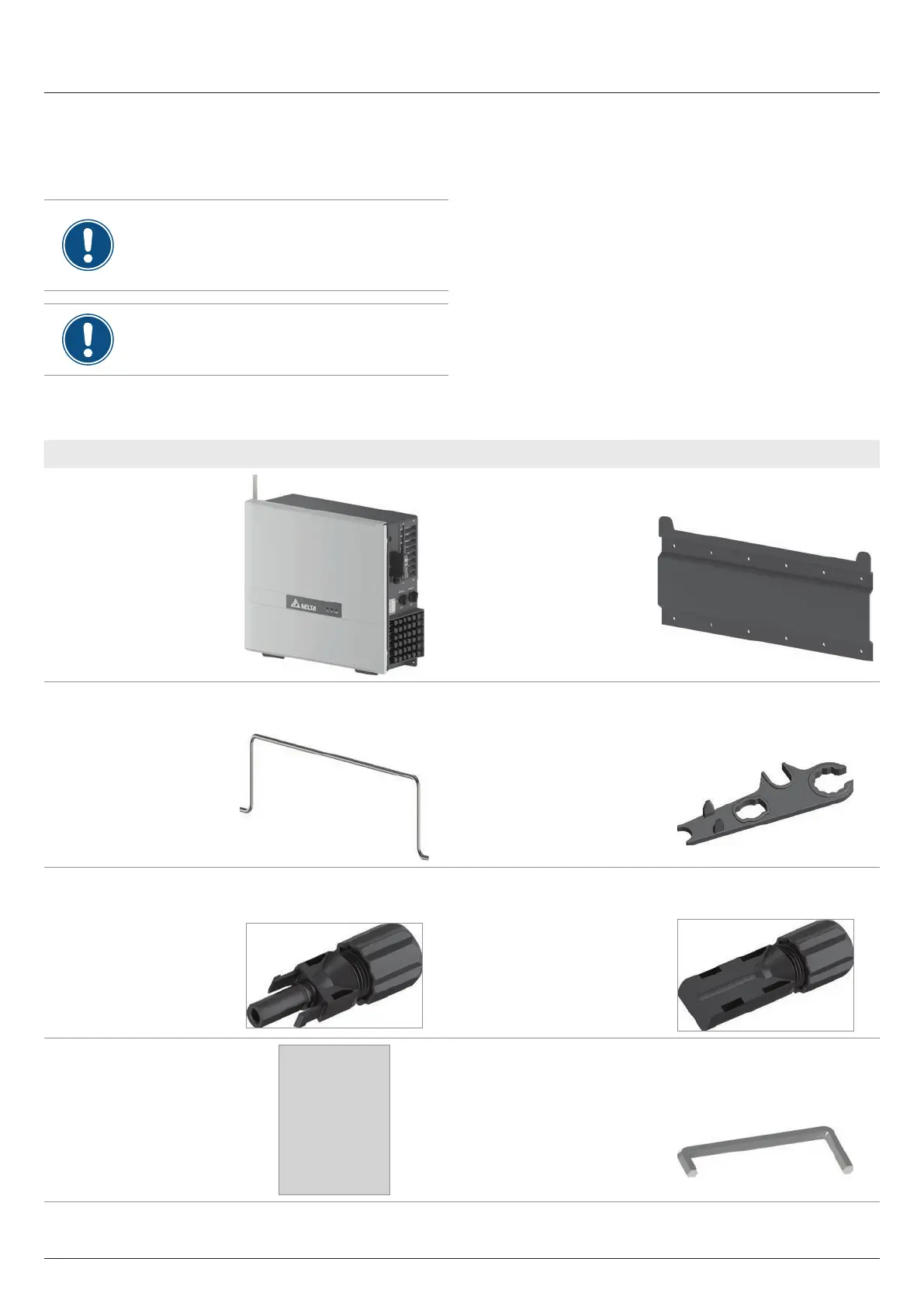

4.1 Scope of delivery
Check the delivery for completeness and all com-
ponents for damage before starting installation
work.
Do not use any damaged components.
Keep the packaging.
4.1.1 Inverter
Part Description Part Description
Inverter 1
Mounting plate 1
For mounting the inverter
Support bracket for
DC cables
6
For supporting the weight of the
DC cables
Mounting tool for DC
plug
2
For releasing the Amphenol H4
plugs from the DC connections of
the inverter
DC plug for DC+ 18
Amphenol plug H4 for 4/6 mm
2
(H4CFC4D●MS)
DC plug for DC– 18
Amphenol plug H4 for 4/6 mm
2
(H4CMC4D●MS)
Quick Installation
Guide
1
Allen key 1
For releasing the door screws and
securing the open door from slam-
ming shut.
