Installation and Operation Manual for Solar Power Inverter M70A EU V1.1 EN 2020-02-20
4 Product overview
DC-side components
4.5 DC-side components
4.5.1 DC connector panel

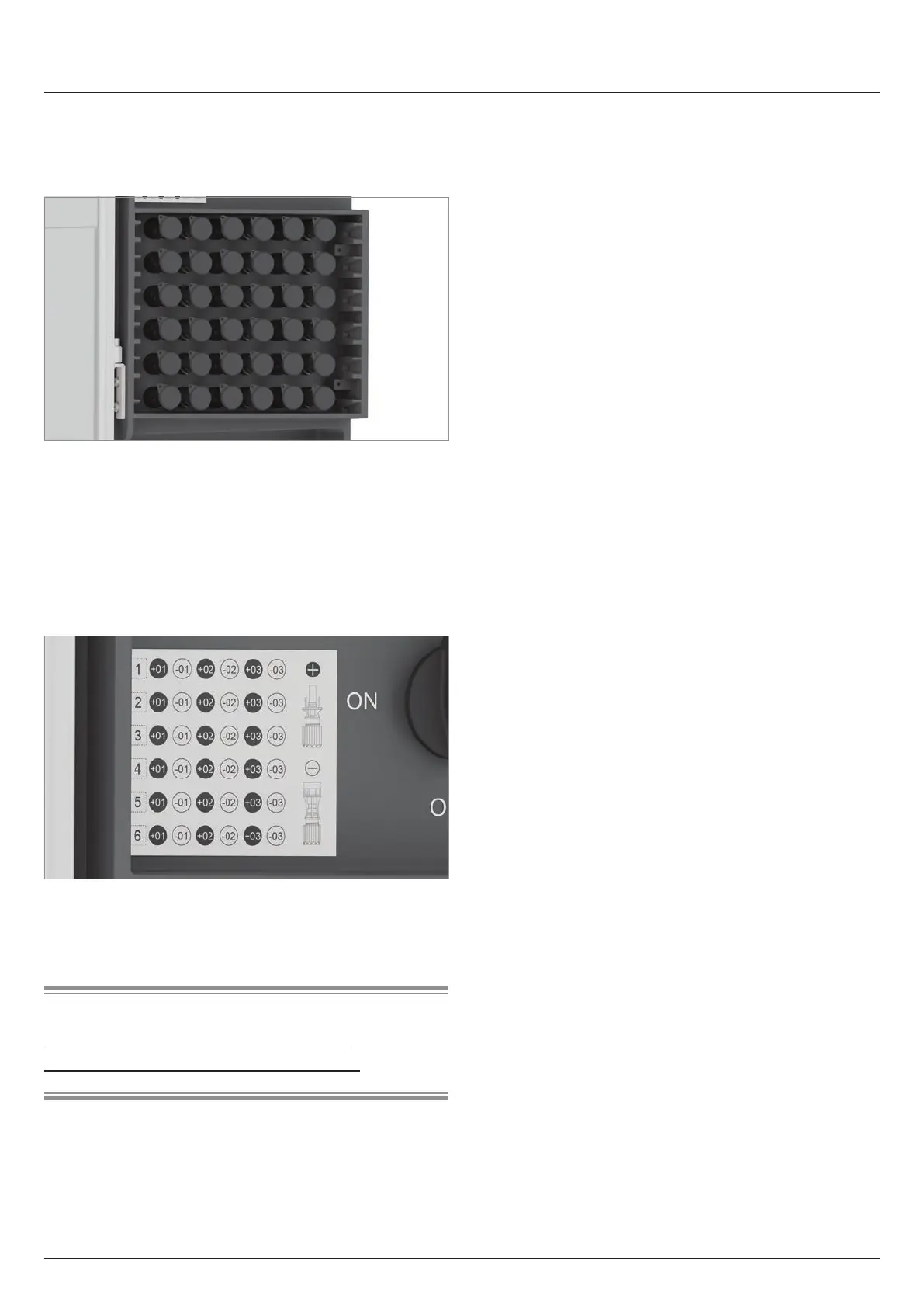

Fig. 4.6: Position of the DC terminal block
The DC connector panel has 18 pairs of DC connectors (6 MPP
trackers with 3 pairs of DC connectors each).
Plug type:
● DC+: Amphenol H4 for 4/6 mm
2
(Amphenol part number
H4CFC4D●MS)
● DC–: Amphenol H4 for 4/6 mm
2
(Amphenol part number
H4CMC4D●MS)
18 pairs of DC plugs are supplied in the scope of delivery.
Fig. 4.7: Label showing the assignment of each DC connector
The assignment of the individual DC connectors to the strings is
shown on a label.
Related topics
“5.5 Connecting the solar modules (DC)”, page 37
“7.11 Connecting the solar modules (DC)”, page 88
