10 Maintenance
Replacing the Sub-1G antenna
Installation and Operation Manual for Solar Power Inverter M70A EU V1.1 EN 2020-02-20
136

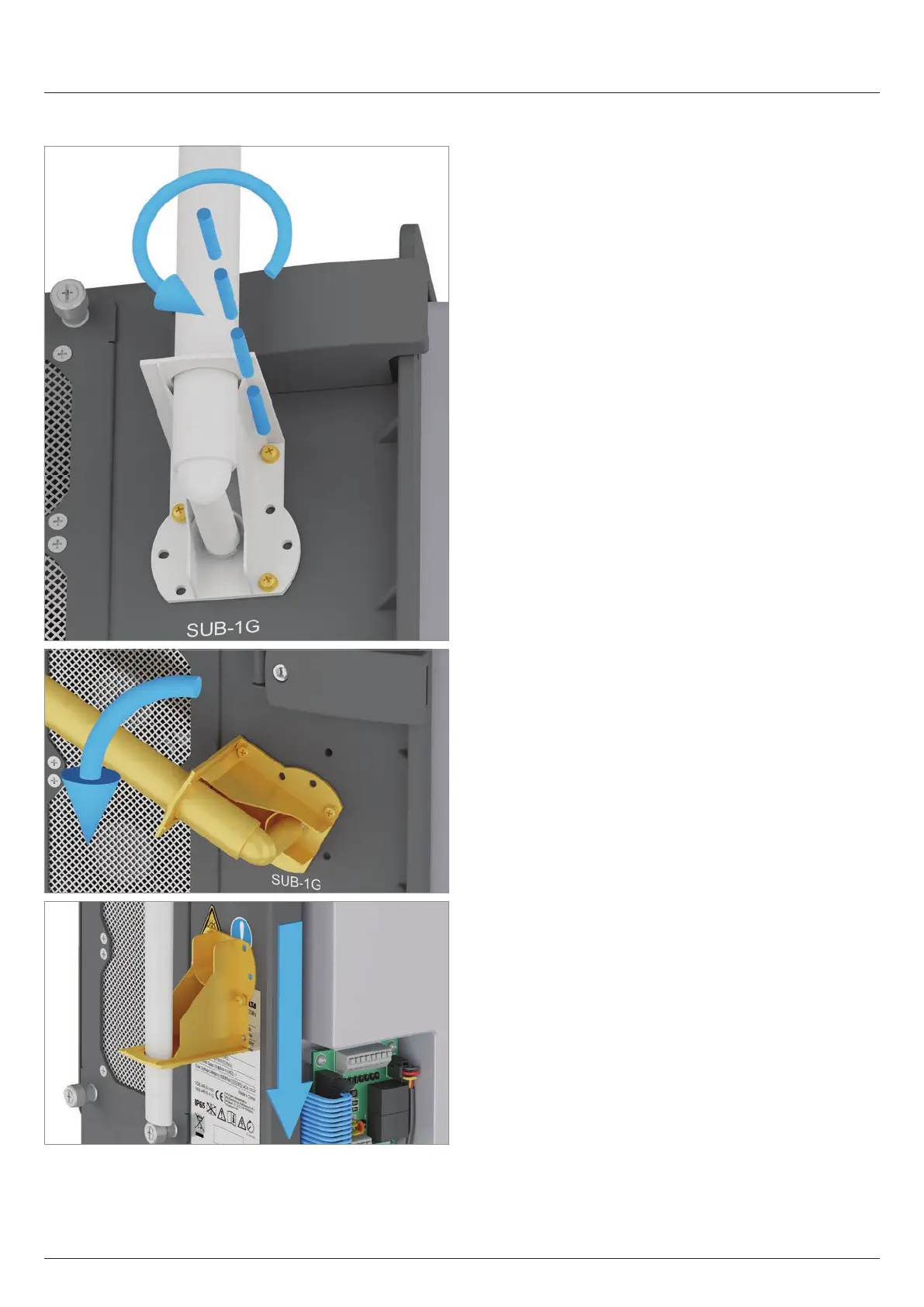

10.11 Replacing the Sub-1G antenna
1. Unscrew the mounting frame.
2. Rotate the mounting frame with the Sub-1G antenna
downward.
3. Pull the mounting frame downward.
