7 Installation
Connecting the solar modules (DC)
Installation and Operation Manual for Solar Power Inverter M70A EU V1.1 EN 2020-02-20
88
7.11 Connecting the solar modules (DC)

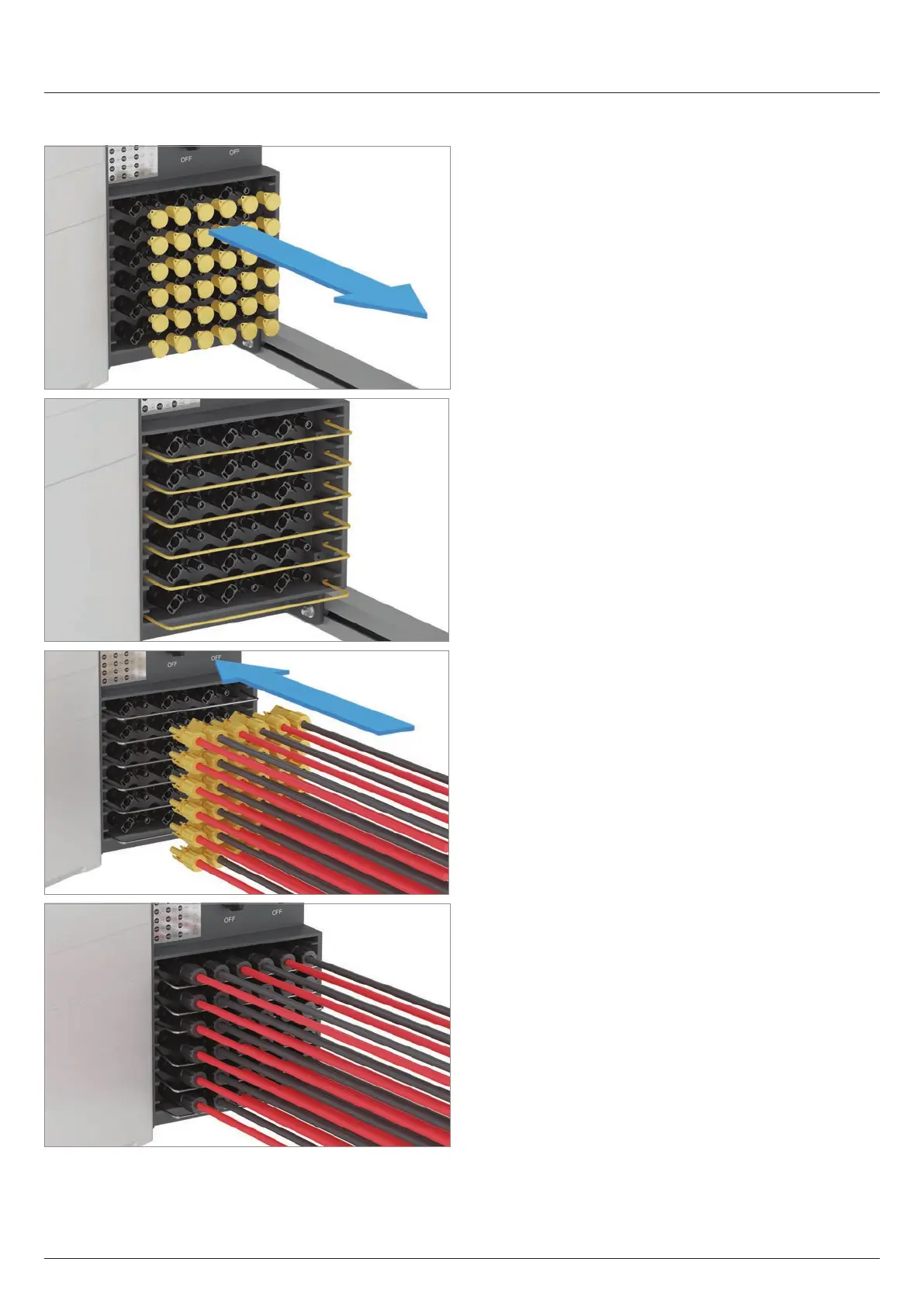

1. Pull out the cover caps of the DC connections.
2. Insert the metal brackets to support the DC cables.
3. Plug in the DC cables.
4. The illustration on the left shows how the wiring should
look when all DC connections are in use.
