7 Installation
Mounting the inverter
Installation and Operation Manual for Solar Power Inverter M70A EU V1.1 EN 2020-02-20
52

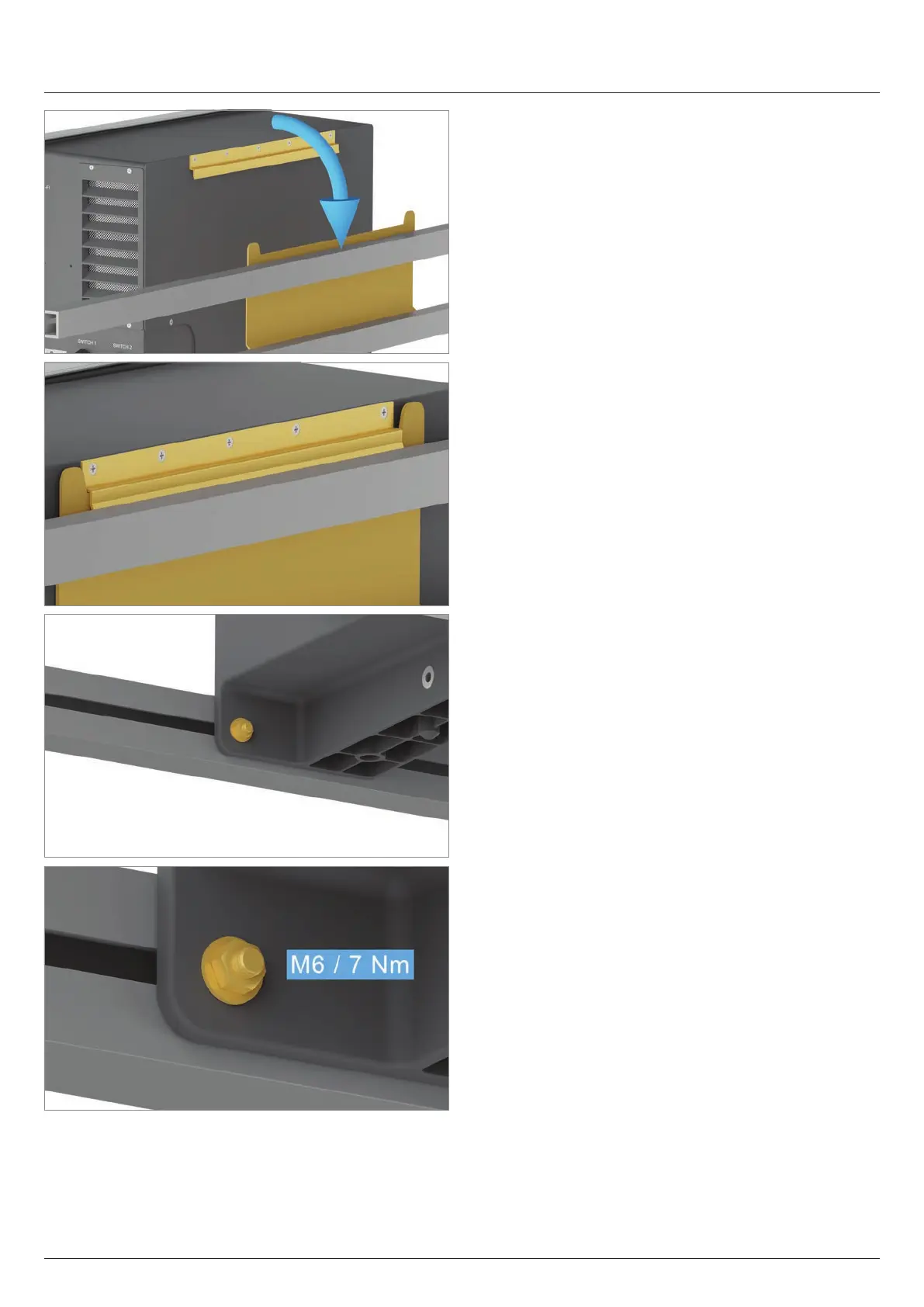

3. Mount the inverter on the mounting plate.
4. Check that the inverter hangs correctly on the mounting
plate.
5. Screw the lower left side of the inverter onto the wall or
mounting system using the M10 screw, spring washer and
washer.
