VFD-MS300/MH300 EtherNet/IP Communication Card CMM-EIP01
CMM-EIP01 Operation Manual
11

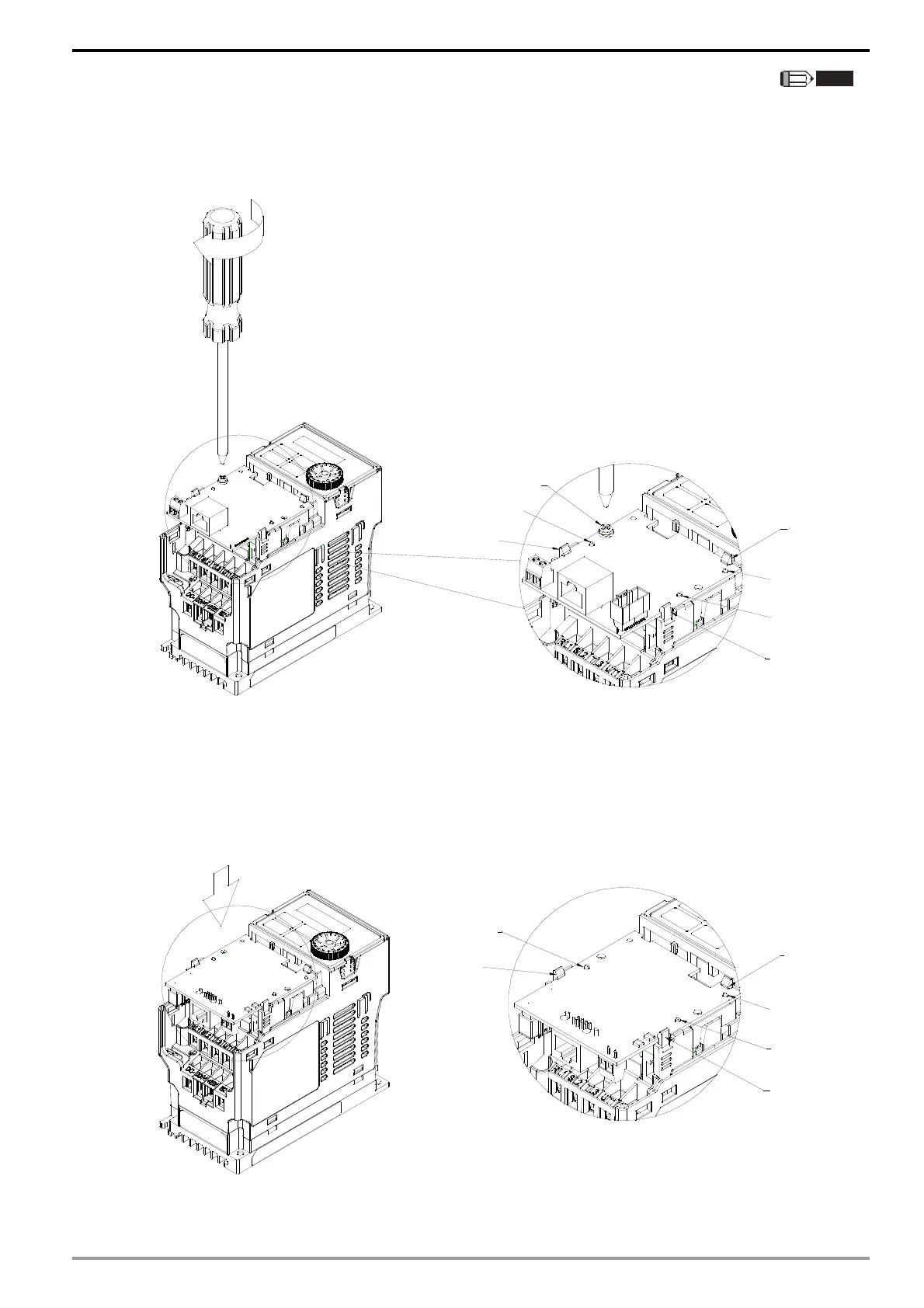

5. Wiring after the communication card fixed fitting is clipped with the holes (see
NOTE
).
Fasten the screw if the communication card maintains front mounting. Torque: 4~6
kg-cm / [3.5~5.2 lb-in.] / [0.39~0.59 Nm], do not close the front cover at this time.
(shown in Fig. 3) If close the front cover，please refer to the subsequent steps.
Fig. 3
6. After the wiring is completed, loosen the communication card of the front mounting，and
reverse-mounted, aim the three holes at the positioning pin, press the pin to clip the
holes with the communication card. (shown in Fig. 4)
Fig. 4
Torque:
4~6 kg-cm
[3.5~5.2 lb-in.]
[0.39~0.59 Nm]
Position pin
Position pin
Position pin
Clip
Clip
Clip
Clip
Position pin
Position pin
Position pin
Clip
Clip
