VFD-MS300/MH300 EtherNet/IP Communication Card CMM-EIP01
CMM-EIP01 Operation Manual
12

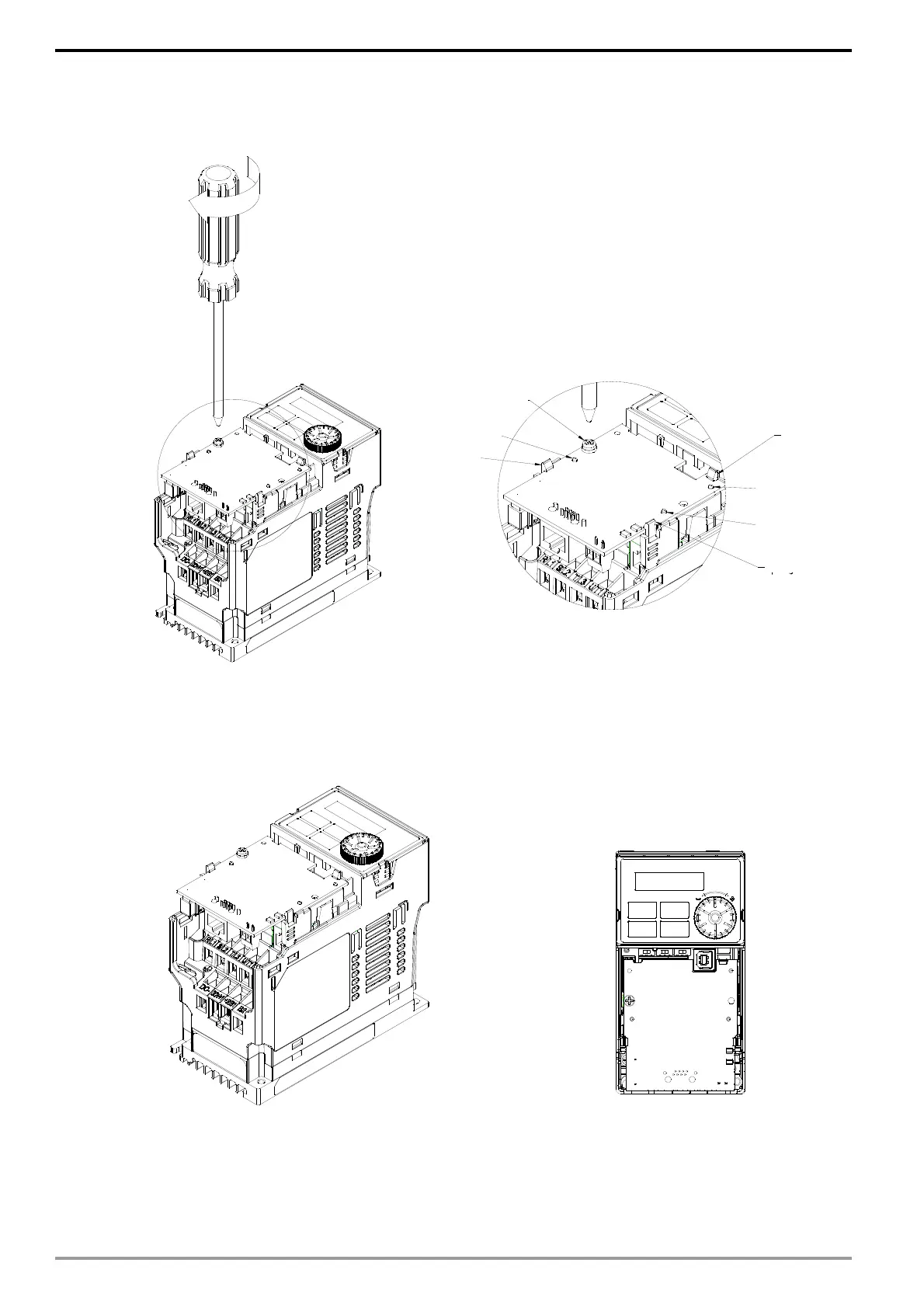

7. Fasten the screw after the communication card fixed fitting is clipped with the holes.
(shown in Fig. 5)
Fig. 5
8. Installation is completed. (shown in Fig. 6) The upper cover can be installed.
Fig. 6
Torque:
4~6 kg-cm
[3.5~5.2 lb-in.]
[0.39~0.59 Nm]
Clip
Position pin
Position pin
Position pin
Clip
Clip
