VFD-MS300/MH300 EtherNet/IP Communication Card CMM-EIP01
CMM-EIP01 Operation Manual
6
1.5.2 Supports services and CIP objects

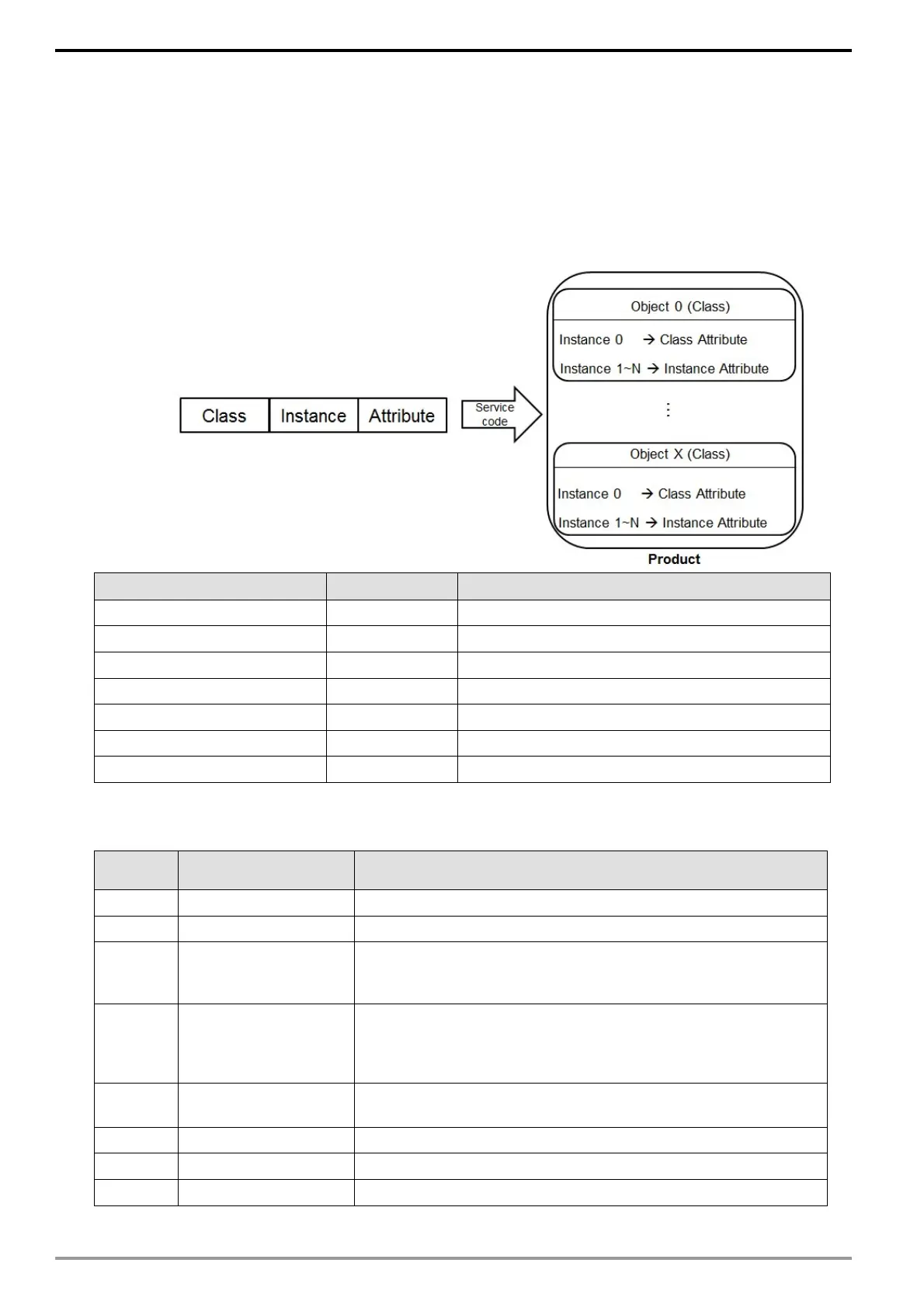

EtherNet/IP employs "Objects" as the collection of parameters. Each Object
defines its own parameters based on the structures of its Class, Instance, and Attribute.
In particular, Instance 0 defines the basic information of each Object such as its version
number and length. Instances 1 to N represent the parameter values required for each
device to establish a connection or obtain status information. User may access product
parameters via the service code supported by various Objects. Refer to the diagram
below:
EtherNet/IP objects supported by the product:
Name of element Class Code Element description
Identity Object 0x01
Device identification element
Message Router Object 0x02
Message route element
Assembly Object 0x04
Assembly element
Connection Manager Object 0x06
Connection management element
TCP / IP Interface Object 0xF5
For TCP / IP interface
EtherNet Link Object 0xF6
For EtherNet connection
VFD Data Object 0x300
AC drive control element
Refer to Appendix A for the descriptions of object elements.
1.5.3 CIP common status codes
Status
code
Status name
Definition
0x00 Success
Requested service has been successfully executed
0x01 Connection failure
Connected service has failed
0x04 Path segment error
Process node cannot identify the definition or syntax of a path
segment. When this error occurs, execution of the path program
will be terminated.
0x05
Path destination
unknown
The path is related to the category of an object, but the process
node does not cover or cannot identify the type or structure of the
element. When this error occurs, execution of the path program
will be terminated.
0x08 Service not supported
Requested service not supported by this object class, or service
not defined.
0x0E Attribute not settable
Received request to change an unmodifiable attribute
0x13 Not enough data
Unable to execute command due to insufficient data received
0x14 Attribute not supported
Requested attribute not supported
