Chapter 4 Parameters|VFD-VL
4-109
10-08
Encoder Slip Detection Time
Control
mode
VFPG SVC FOCPG FOCPM
Factory Setting: 0.5
Settings 0.0 to 10.0 sec
10-09
Encoder Stall and Slip Error Treatment
Control
mode
VFPG SVC FOCPG FOCPM
Factory Setting: 2
Settings 0 Warn and keep operating
1 Warn and RAMP to stop
2 Warn and COAST to stop
When the value of (rotation speed – motor frequency) exceeds Pr.10-07 setting, detection time
exceeds Pr.10-08 or motor frequency exceeds Pr.10-05 setting, it will start to accumulate time.
If detection time exceeds Pr.10-06, the encoder feedback signal error will occur. Refer to
Pr.10-09 encoder stall and slip error treatment.
10-10
Mode Selection for UVW Input
Control
mode
VFPG FOCPG TQCPG FOCPM
Factory Setting: 0
Settings 0 Z signal is at the falling edge of U-phase
1 Z signal is at the rising edge of U-phase

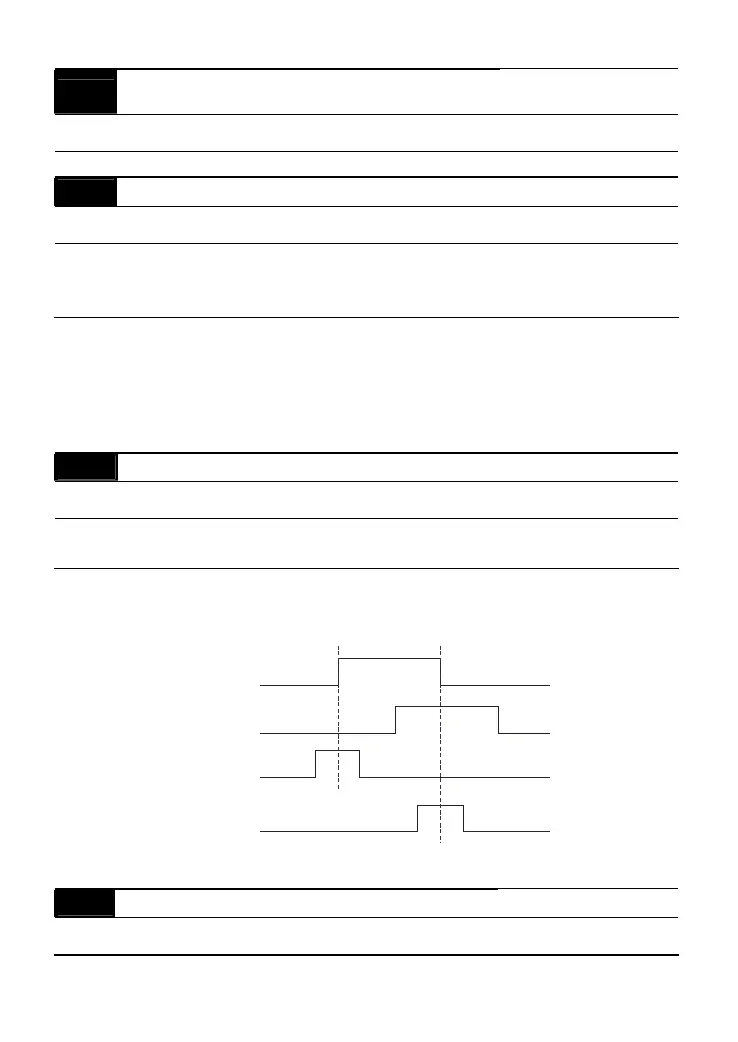

Setting 0: when the operation is U->V->W, Z signal is at the falling edge of U-phase.
Setting 1: when the operation is U->V->W, Z signal is at the rising edge of U-phase.
U
V
Pr.10-10=1
Pr.10-10=0
Z Signal
Z Signal
10-11
ASR (Auto Speed Regulation) Control (P) of Zero Speed
Control
mode
VF VFPG SVC FOCPG FOCPM
Factory Setting: 100.0
