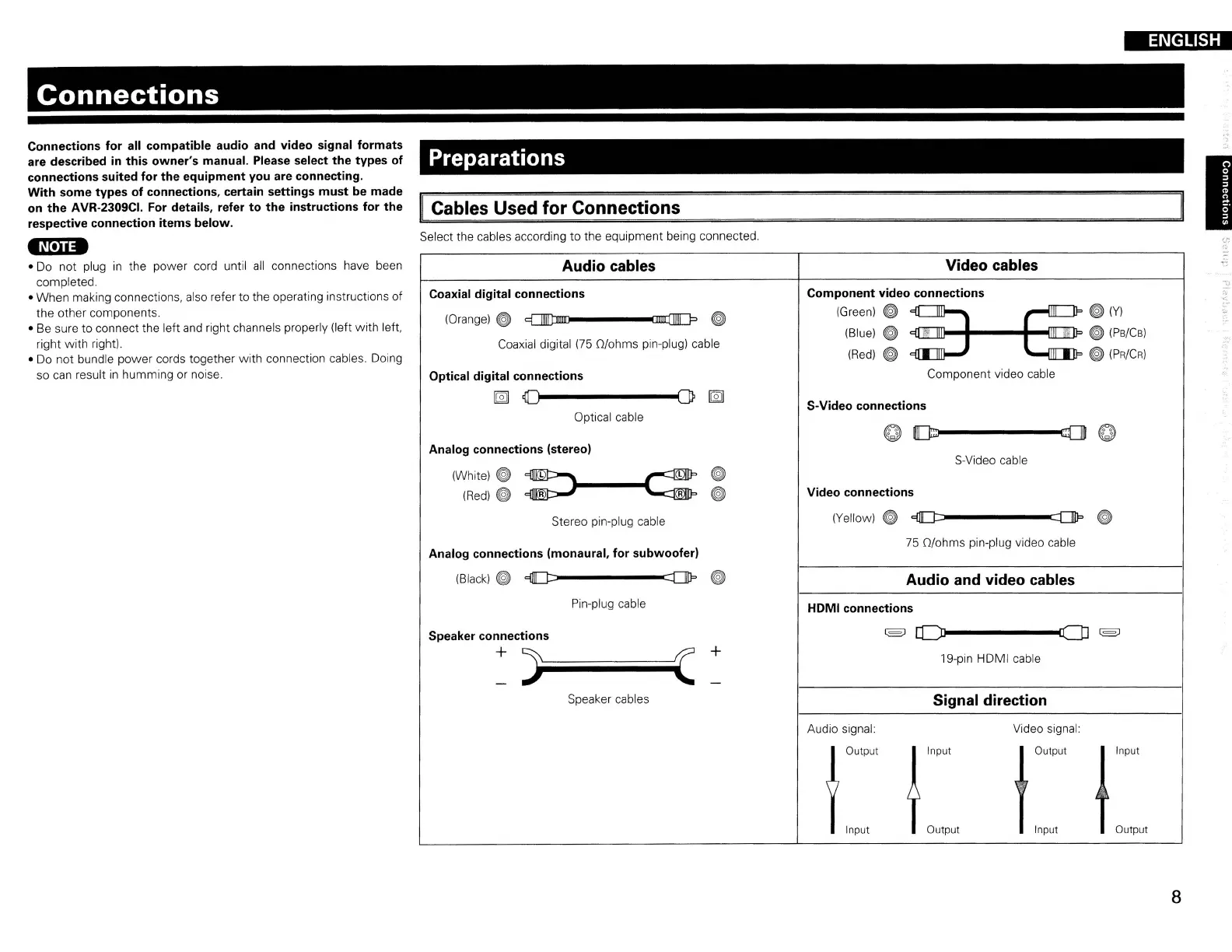

Connections
Connections for all compatible audio and video signal formats
are described
in
this owner's manual. Please select the types of
connections suited for the equipment you are connecting.
With some types of connections, certain settings must be made
on the AVR-2309CI. For details, refer
to
the instructions for the
respective connection items below.
-Nina
• Do not plug
in
the power cord until
all
connections have been
completed.
•
When
making connections, also refer to the operating instructions
of
the other components.
• Be sure to connect the left and right channels properly (left
with
left.
right
with
right).
• Do
not
bundle
power
cords together
with
connection cables. Doing
so can result
in
humming or noise.
Preparations
Cables Used for Connections
Select the cables according to the equipment being connected.
Audio cables
Coaxial digital connections
(Orange)~
~
~
Coaxial digital
(75
O/ohms pin-plug) cable
Optical digital connections
~
~~-------(JP
[g]
Optical cable
Video cables
Component video connections
(Green)
~
(Blue)
~
(Red)
~
Component video cable
S-Video connections
~(Y)
~
(Ps/Cs)
~
(PR/CR)
ENGLISH
I
Analog connections (stereo)
(White)
~
(Red)
~
~~
~
~
Stereo pin-plug cable
S-Video cable
Video connections
(Yellow)
~
e::tJ][J::::------::DIlP
~
Analog connections (monaural, for subwoofer)
(Black)
~
e::tJ][J::::------::D1J='
~
Pin-plug cable
75
O/ohms pin-plug video cable
Audio and video cables
HOMI connections
Speaker connections
+
)~Iiiiiiiiiiiiiii(
Speaker cables
+
(§J
rL)l-------CD
(§J
19-pin HDMI cable
Signal direction
Audio signal:
AOutput
flnput
j
Input
Youtput
Video signal:
Output
Input
J
Input
TOutput
8
To Next Page
