ENGLISH

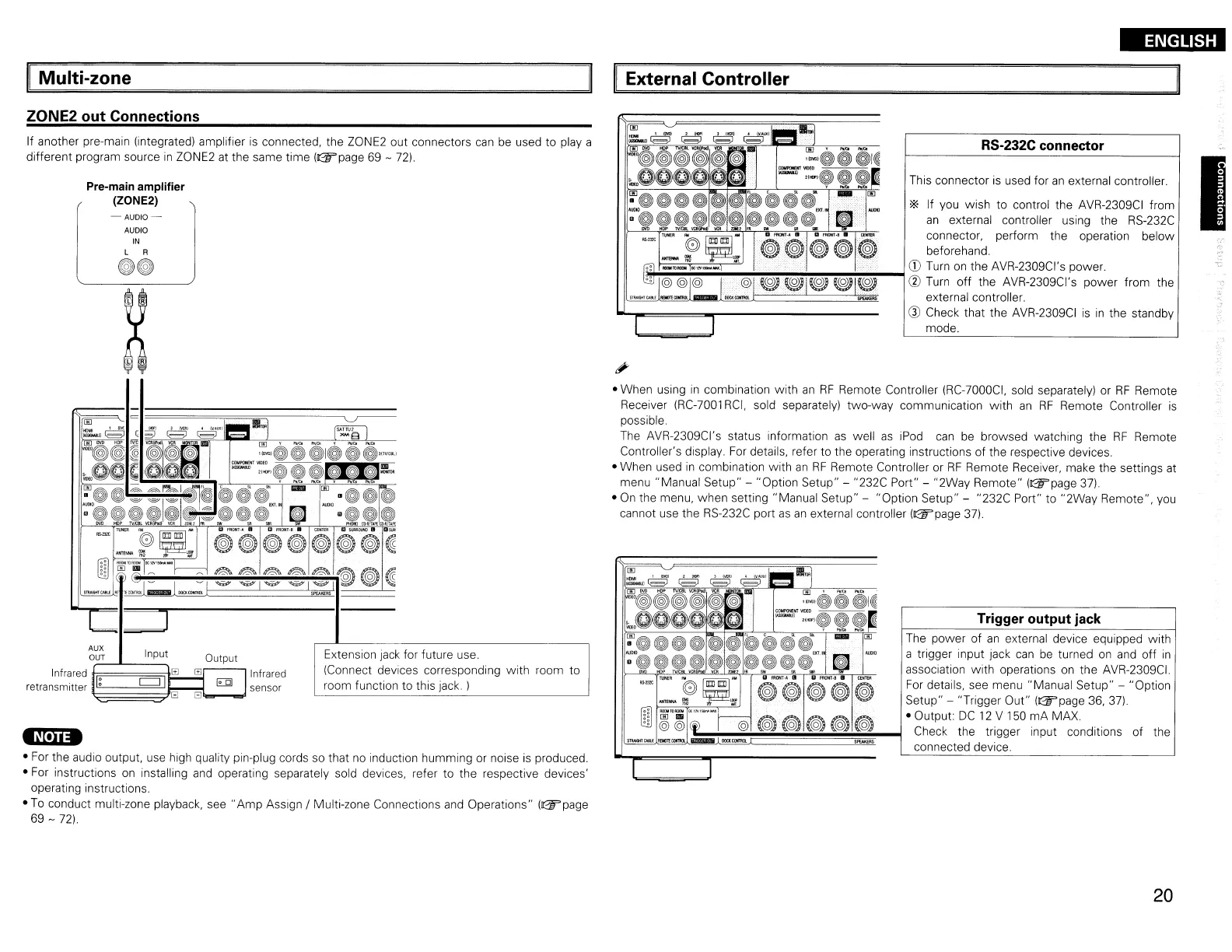

Multi-zone
External Controller
I
RS-232C connector
This connector
is
used for
an
external controller.
:>.::
If
you
wish to control the AVR-2309CI from
an
external controller using the
RS-232C
connector, perform the operation below
beforehand.
CD
Turn
on
the AVR-2309CI's power.
l!i!'i~~~~~@~~~@~
•..
~~o~~~o~~~.~~(g)~.~""'@
Turn
off the AVR-2309CI's power from the
external controller.
@ Check that the
AVR-2309CI
is
in
the standby
mode.
-AUDIO-
AUDIO
IN
L A
~~
Pre-main amplifier
(ZONE2)
ZONE2 out Connections
If another pre-main (integrated) amplifier
is
connected, the
ZONE2
out connectors
can
be
used to playa
different program source
in
ZONE2
at
the same time
(&page
69
-
72).
.~[.}j.
•
For
the audio output,
use
high quality pin-plug cords
so
that
no
induction humming
or
noise
is
produced.
•
For
instructions
on
installing
and
operating separately sold devices, refer to the respective devices'
operating instructions.
•
To
conduct multi-zone playback,
see"
Amp Assign / Multi-zone Connections
and
Operations" ((W'page
69
-
72)
AUX
°rU;T:;;;;;:~;I~np~u~t!!.....!!:Joutput
Infrared
tr
I±l [±l
retransmitter
rl:~~~c:::::J~~Im-f'il
EQ)
" G B
Infrared
sensor
Extension
jack
for future use.
(Connect devices corresponding with room to
room function to this
jack)
• When using
in
combination with
an
RF
Remote Controller
(RC-7000CI,
sold separately)
or
RF
Remote
Receiver
(RC-7001
RCI,
sold separately) two-way communication with
an
RF
Remote Controller
is
possible.
The
AVR-2309CI's status information
as
well
as
iPod
can
be
browsed watching the
RF
Remote
Controller's display.
For
details, refer to the operating instructions of the respective devices.
• When used
in
combination with
an
RF
Remote Controller
or
RF
Remote Receiver, make the settings
at
menu "Manual Setup" - "Option Setup" - "232C Port" - "2Way Remote" ((W'page
37)
.
•
On
the menu, when setting "Manual Setup" - "Option Setup" - "232C Port" to "2Way Remote",
you
cannot
use
the
RS-232C
port
as
an
external controller ((W'page
37).
Trigger output jack
The power of
an
external device equipped with
a trigger input jack
can
be
turned
on
and
off
in
association with operations
on
the AVR-2309CI.
For
details, see menu "Manual Setup" - "Option
Setup" - "Trigger Out" ((W'page
36,
37)
•
Output
DC
12
V
150
mA MAX.
Check the trigger input conditions of the
connected device.
20
To Next Page
