Denon AVR-2309CI

ENGLISH
I

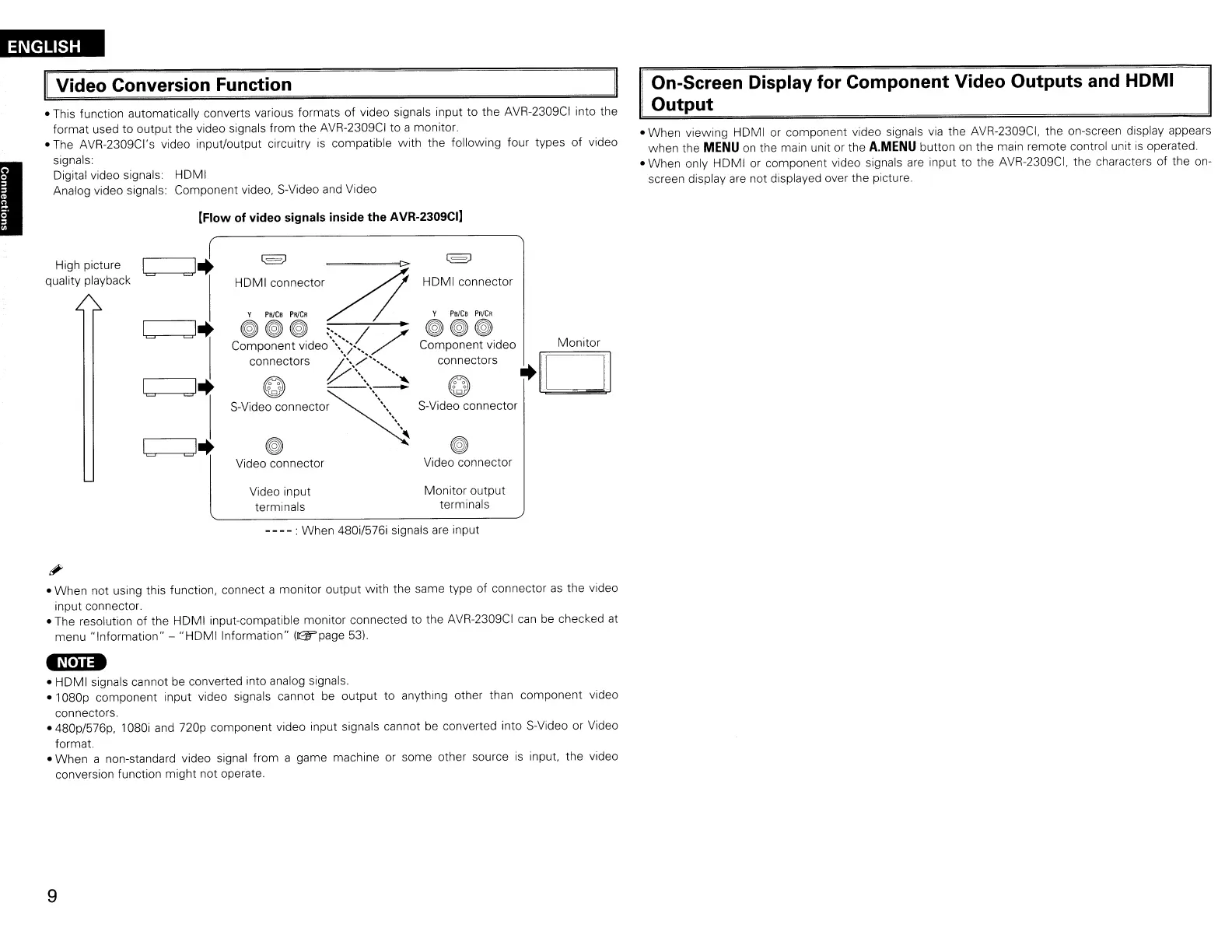

II Video Conversion Function
• This function automatically converts various formats of video signals input to the AVR-2309CI into the
format used to output the video signals from the AVR-2309CI to a monitor.
• The AVR-2309CI's video input/output circuitry
is compatible with the following four types of video
signals:
Digital video signals: HOMI
Analog video signals: Component video, S-Video
and Video
[Flow of video signals inside the AVR-2309CI]
On-Screen Display for Component Video Outputs and HDMI
VULJJut
• When viewing HOMI or component video signals via the AVR-2309CI, the on-screen display appears
when the
MENU on the main unit or the A.MENU button on the main remote control unit is operated.
• When only HOMI or component video signals
are input to the AVR-2309CI, the characters of the on-
screen display are not displayed over the picture.
High picture
I~ I"
quality playback "=-,-------.:==-' I
r--1
J
1
I~ J1
o-I=---'='''
l§l c>
HOMI connector /11
Y PB/C8 PRiCR / /
GGG ::" / ·
Component video '<>" /
connectors j"',/"'"
~ V"~,"~ "'",
~ ---.~
S·V;d" ,oo"otO~
G
Video connector
Video input
terminals
HOMI connector
Y PB/C8 PRiCR
GGG
Component video Monitor
connectors
.0'.1 ' ...
o . !
S-Video connector
G
Video connector
Monitor output
terminals
- - - - : When 480i/576i signals are input
• When not using this function, connect a monitor output with the same type of connector
as the video
input connector.
• The resolution of the HOMI input-compatible monitor connected to the AVR-2309CI
can be checked at
menu "Information" -
"HOMllnformation" (I(ff'page 53).
IN,U.
• HOMI signals cannot be converted into analog signals.
• 1080p component input video signals cannot
be output to anything other than component video
connectors.
• 480p/576p, 1080i and
nop component video input signals cannot be converted into S-Video or Video
format.
• When a non-standard video signal from a game machine or some other source
is input. the video
conversion function might not operate.
9
