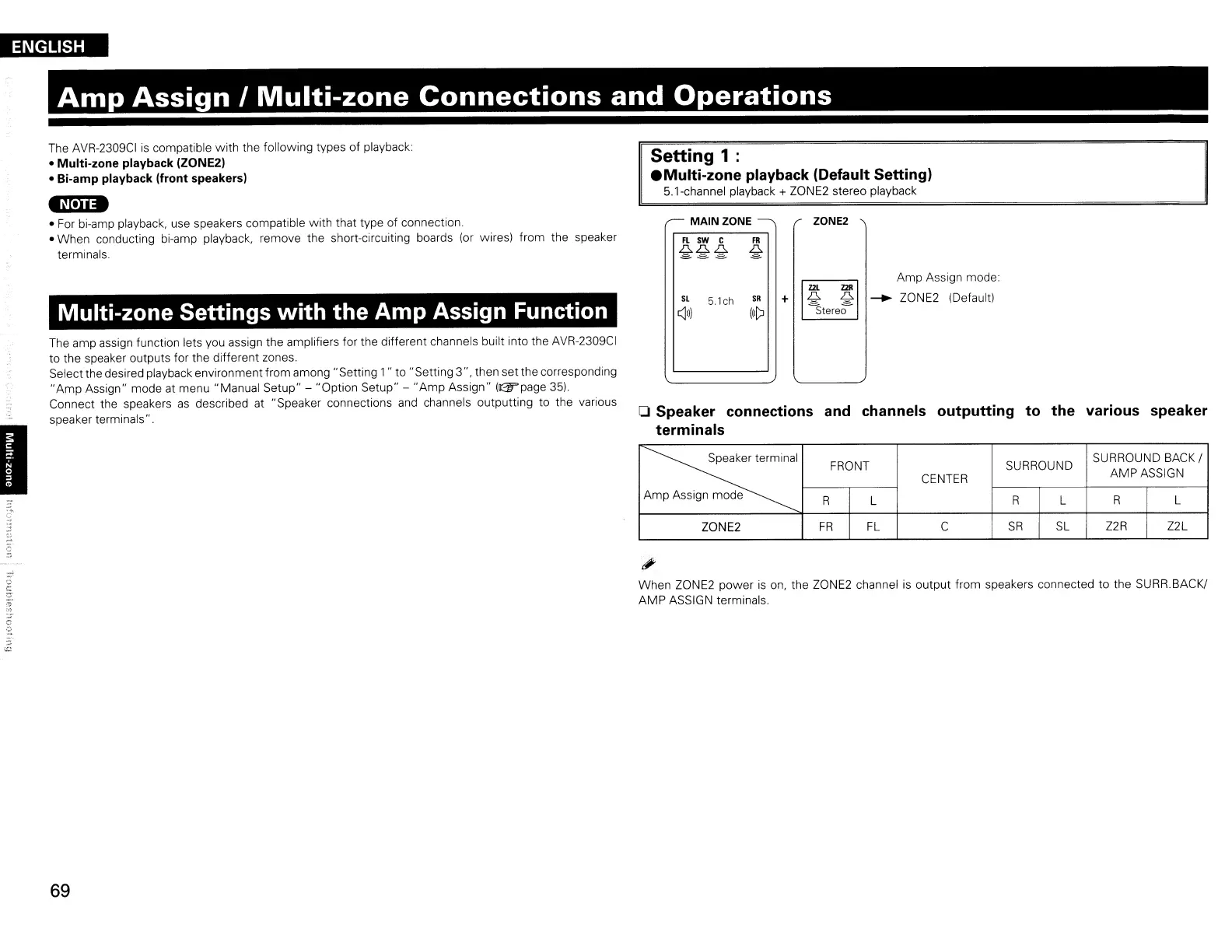

ENGLISH
Amp
Assign
I
Multi-zone
Connections
and
Operations
Setting 1 :
.Multi-zone
playback (Default Setting)
5.1-channel playback + ZONE2 stereo playback
The AVR-2309CI
is
compatible
with
the following types of playback:
• Multi-zone playback (ZONE2)
• Bi-amp playback (front speakers)
-n·u.
•
For
bi-amp playback, use speakers compatible with that type of connection.
• When conducting bi-amp playback, remove the short-circuiting boards (or wires) from the speaker
terminals.
Multi-zone Settings
with
the Amp Assign Function
~
MAIN
ZONE
SL
5.1ch
SR
+
c:J11)
(1
1
[>
ZONE2
Amp Assign mode:
--..
ZONE2 (Default)
I
The amp assign function lets you assign the amplifiers for the different channels built into the AVR-2309CI
to the speaker outputs for the different zones.
Select the desired playback environmentfrom
among"
Setting 1" to "Setting
3",
then set the corresponding
"Amp
Assign" mode at menu "Manual Setup" - "Option Setup" -
"Amp
Assign"
(D2W'page
35).
Connect the speakers
as
described at "Speaker connections
and
channels outputting to the various
speaker terminals".
69
o Speaker connections and channels outputting to the various speaker
terminals
~
FRONT
SURROUND
SURROUND
BACK
/
CENTER
AMP
ASSIGN
Amp Assign mode
R
L
R
L R L
ZONE2
FR
FL
C
SR
SL
Z2R
Z2L
When ZONE2 power
is
on,
the ZONE2 channel
is
output from speakers connected
to
the SURR.BACKi
AMP ASSIGN terminals.
