ENGLISH

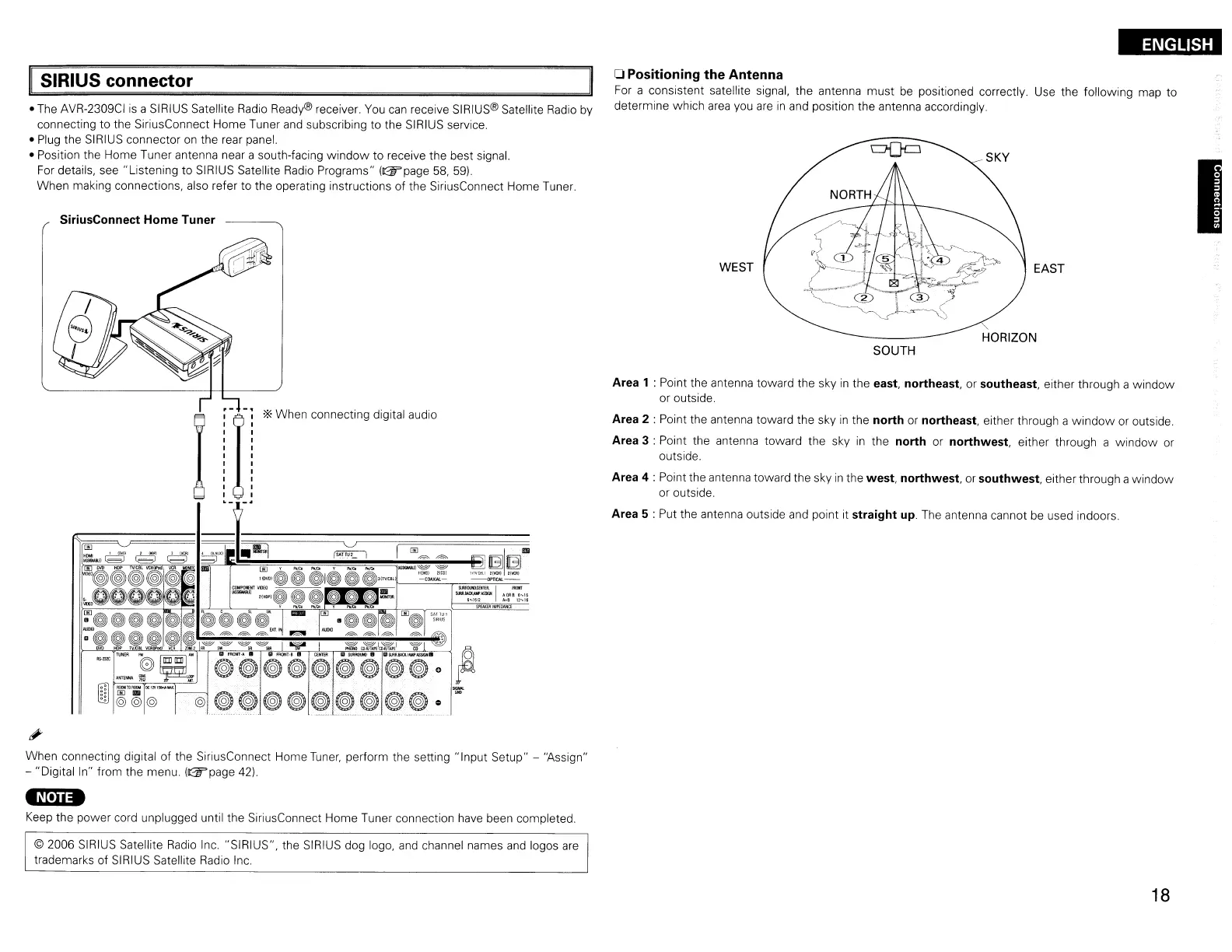

oPositioning the Antenna
For
a consistent satellite signal, the antenna must be positioned correctly. Use the following map to
determine which
area
you
are
in
and
position the antenna accordingly.
Area 1 : Point the antenna toward the sky
in
the east, northeast,
or
southeast, either through a window
or outside.
Area 2 : Point the antenna toward the sky
in
the north
or
northeast, either through a
window
or outside.
Area 3 : Point the antenna toward the sky
in
the north
or
northwest, either through a
window
or
outside.
Area 4 : Point the antenna toward the sky
in
the west, northwest,
or
southwest, either through a window
or outside.
Area 5 : Put the antenna outside and point it straight
up.
The antenna cannot be used indoors.
I
EAST
"
HORIZON
SOUTH
WEST
~1:.~=7:::
.........
...,
'*
When connecting digital audio
:"'1~~~~~~~~-,g~l,i·
--om>c-
SiriusConnect Home Tuner
• The AVR-2309CI
is
a SIRIUS Satellite Radio Ready® receiver.
You
can
receive SIRIUS® Satellite
Radio
by
connecting to the SiriusConnect Home Tuner and subscribing to the SIRIUS service.
•
Plug
the SIRIUS connector on the rear panel.
• Position the Home Tuner antenna near a south-facing
window
to receive the best signal.
For
details, see "Listening to SIRIUS Satellite
Radio
Programs"
(&page
58,59).
When making connections, also refer to the operating instructions of the SiriusConnect Home Tuner.
II
SIRIUS connector
When connecting digital
of
the SiriusConnect Home
Tuner,
perform the setting "Input Setup" - "Assign"
- "Digital In" from the menu.
(&page
42)
.
•
Nei
••
Keep the power cord unplugged until the SiriusConnect Home Tuner connection
have
been completed.
© 2006
SIRIUS
Satellite
Radio
Inc. "SIRIUS", the SIRIUS dog logo,
and
channel names
and
logos
are
trademarks of SIRIUS Satellite Radio Inc.
18
