ENGLISH

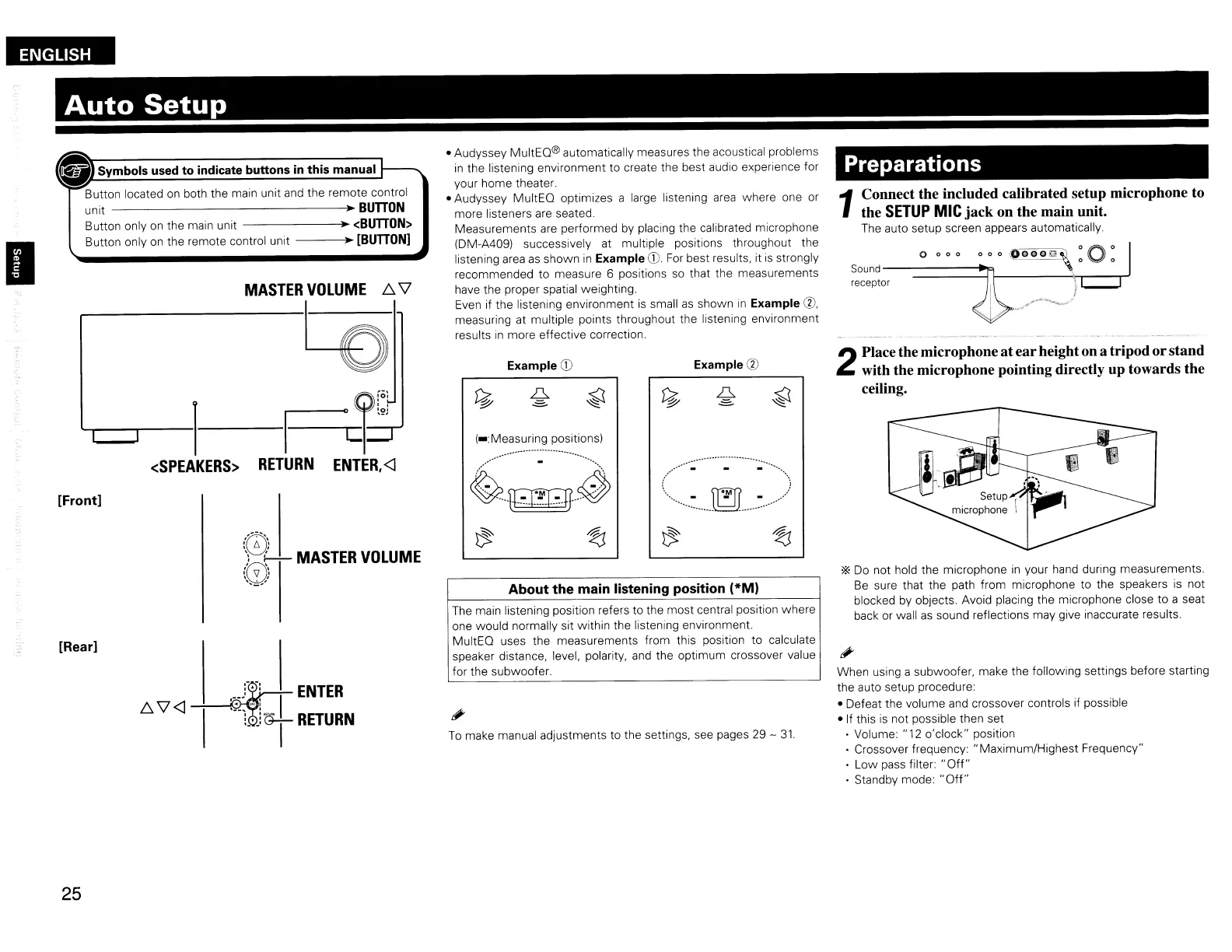

Auto
Setup
To
make manual adjustments to the settings, see pages 29 -
31.
About the main listening position
(*Ml
*Do not hold the microphone
in
your hand during measurements.
Be
sure that the path from microphone to the speakers is not
blocked by objects. Avoid placing the microphone close to a seat
back
or
wall
as
sound reflections may give inaccurate results.
Sound
--====:::!:f1
receptor
!-----4;,.....----,,...J
I
..
-~--..."
Preparations
1
Connect the included calibrated setup microphone to
the
SETUP
MIC
jack on the main unit.
The
auto setup screen appears automatically.
o
000
When using a subwoofer, make the following settings before starting
the auto setup procedure:
• Defeat the volume and crossover controls if possible
•
If
this
is
not possible then set
· Volume: "12 o'clock" position
· Crossover frequency: "Maximum/Highest Frequency"
·
Low
pass filter:
"Off"
· Standby mode:
"Off"
2
Placethe microphoneat ear heighton a tripod orstand
with the microphone pointing directly up towards the
ceiling.
Example
0
...
.........
:,.
- .
"\
i.
: J];ll :
/!
Example
U)
(-:Measuring positions)
~""lEJ!G]'
OM
......
/~
~.
__
.-
..
~
=--====
The main listening position refers to the most central position where
one would normally sit within the listening environment.
MultEO uses the measurements from this position to calculate
speaker distance, level, polarity,
and
the optimum crossover value
for the subwoofer.
• Audyssey MultEO® automatically measures the acoustical problems
in
the listening environment to create the best audio experience for
your home theater.
• Audyssey MultEO optimizes a large listening
area
where one or
more listeners
are
seated.
Measurements
are
performed by placing the calibrated microphone
(DM-A409) successively at multiple positions throughout the
listening area
as
shown
in
Example U).
For
best results, it
is
strongly
recommended to measure 6 positions
so
that the measurements
have the proper spatial weighting.
Even
if the listening environment
is
small
as
shown
in
Example
0,
measuring at multiple points throughout the listening environment
results in more effective correction.
MASTER
VOLUME
/:::,.
\l
to
L.,------,.-j-Fci=i::
<SPEAKERS>
RETURN
ENTER,
<I
&Symbols used
to
indicate buttons in this manual
Button located
on
both the main unit and the remote control
unit ..
BUTTON
Button only
on
the main unit •
<BUTTON>
Button only on the remote control unit ..
[BUTTON)
[Rear)
[Front)
I
25
