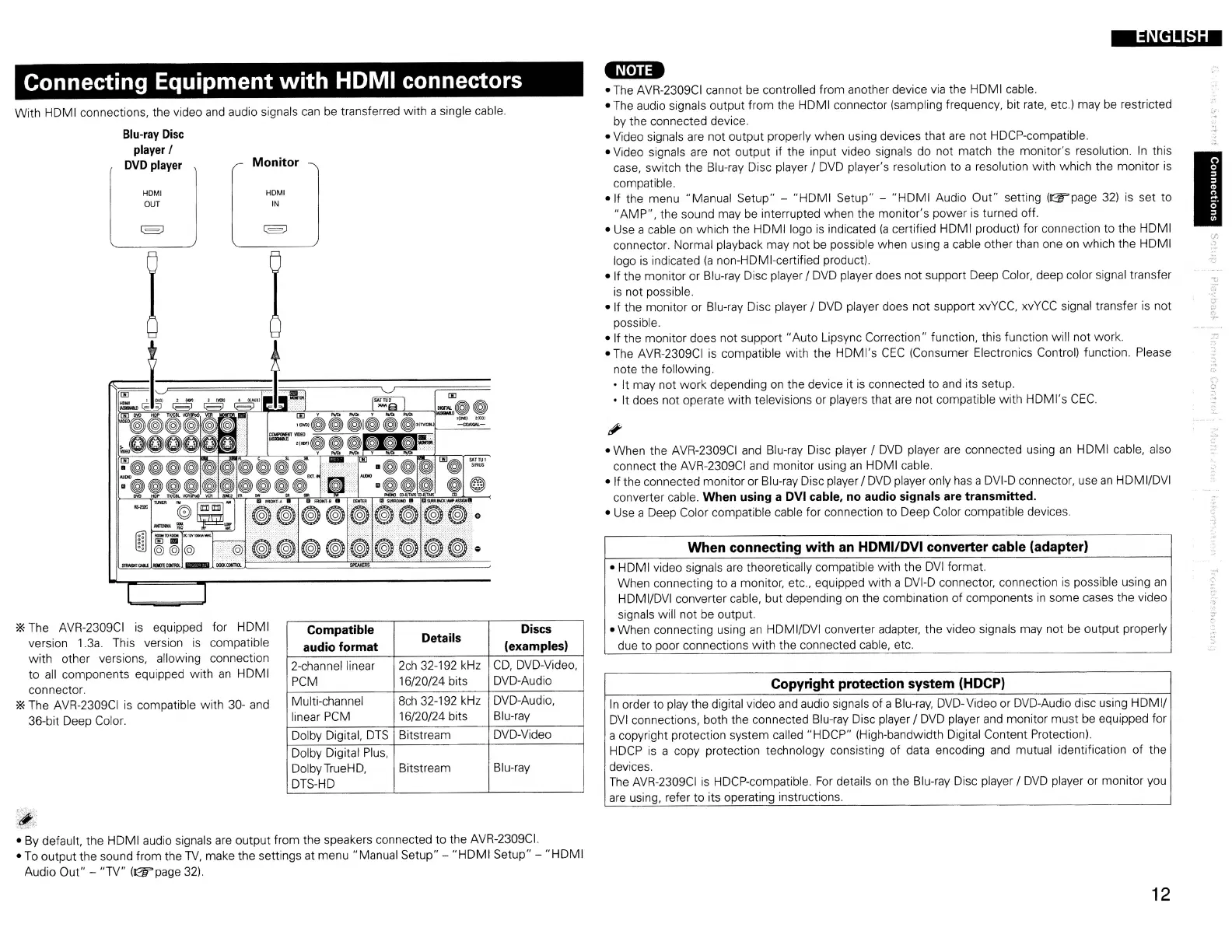

Connecting Equipment
with
HDMI connectors
[J
Monitor
HOMI
IN
~
~
::Jt;.
• By default, the HDMI audio signals
are
output from the speakers connected to the AVR-2309CI.
• To output the sound from the
TV,
make the settings at menu "Manual Setup" -
"HDMI
Setup" -
"HDMI
Audio
Out"
-
"TV"
(Gr'page
32).
f.
-.
I
• HDMI video signals are theoretically compatible with the
DVI
format.
When connecting to a monitor, etc., equipped with a DVI-D connector, connection
is
possible using
an
HDMI/DVI converter cable, but depending
on
the combination
of
components
in
some cases the video
signals will not be output.
• When connecting using
an
HDMI/DVI converter adapter, the video signals may not
be
output properly
due to poor connections
with
the connected cable, etc.
When connecting
with
an
HDMI/DVI
converter cable (adapter)
Copyright protection system (HDCP)
In
order to play the digital video
and
audio signals of a Blu-ray, DVD- Video or DVD-Audio disc using
HDMI/
DVI
connections, both the connected Blu-ray Disc player /
DVD
player
and
monitor
must
be equipped for
a copyright protection system
called"
HDCP" (High-bandwidth Digital Content Protection).
HDCP
is
a copy protection technology consisting of data encoding and mutual identification
of
the
devices.
The AVR-2309CI
is
HDCP-compatible.
For
details
on
the Blu-ray Disc player /
DVD
player or monitor you
are using, refer to its operating instructions.
-nln-
• The AVR-2309CI cannot be controlled from another device
via
the HDMI cable.
• The audio signals output from the HDMI connector (sampling frequency, bit rate, etc.) may be restricted
by the connected device.
• Video signals are not output properly when using devices that are not HDCP-compatible.
• Video signals are not output if the input video signals do not match the monitor's resolution.
In
this
case, switch the Blu-ray Disc player /
DVD
player's resolution to a resolution with which the monitor
is
compatible.
·If
the menu "Manual Setup" -
"HDMI
Setup" -
"HDMI
Audio
Out"
setting
(Gr'page
32)
is
set to
"AMP",
the sound may
be
interrupted when the monitor's power
is
turned off.
• Use a cable
on
which the HDMI logo
is
indicated
(a
certified HDMI product) for connection to the HDMI
connector. Normal playback may not be possible when using a cable other than one
on
which the HDMI
logo
is
indicated
(a
non-HDMI-certified product).
• If the monitor or Blu-ray Disc player /
DVD
player does not support Deep Color, deep color signal transfer
is
not possible.
• If the monitor or Blu-ray Disc player /
DVD
player does not support xvYCC,
xvYCC
signal transfer
is
not
possible.
• If the monitor does not
support"
Auto Lipsync Correction" function, this function will not work.
• The AVR-2309CI
is
compatible with the HDMI's
CEC
(Consumer Electronics Control) function. Please
note the following.
• It may not work depending
on
the device it
is
connected to
and
its setup.
• It does not operate
with
televisions or players that are not compatible with
HDMl's
CEC.
• When the AVR-2309CI
and
Blu-ray Disc player /
DVD
player are connected using
an
HDMI cable, also
connect the AVR-2309CI
and
monitor using
an
HDMI cable.
• If the connected monitor or Blu-ray Disc player /
DVD
player only
has
a DVI-D connector, use
an
HDMI/DVI
converter cable.
When using a DVI cable, no audio signals are transmitted.
• Use a Deep Color compatible cable for connection to Deep Color compatible devices.
Compatible
Details
Discs
audio
format
(examples)
2-channel linear
2ch
32-192 kHz
CD,
DVD-Video,
PCM
16/20/24 bits
DVD-Audio
Multi-channel
8ch
32-192 kHz
DVD-Audio,
linear PCM 16/20/24 bits
Blu-ray
Dolby Digital,
DTS
Bitstream
DVD-Video
Dolby Digital
Plus,
DolbyTrueHD, Bitstream
Blu-ray
DTS-HD
With
HDMI connections, the video
and
audio signals
can
be transferred with a single cable.
Blu-ray
Disc
player
/
l
DVD
player
J
HOMI
OUT
~
~
*The AVR-2309CI
is
equipped for HDMI
version 1.3a. This version
is
compatible
with
other versions, allowing connection
to
all
components equipped with
an
HDMI
connector.
*The AVR-2309CI
is
compatible with 30- and
36-bit Deep Color.
