ENGLISH

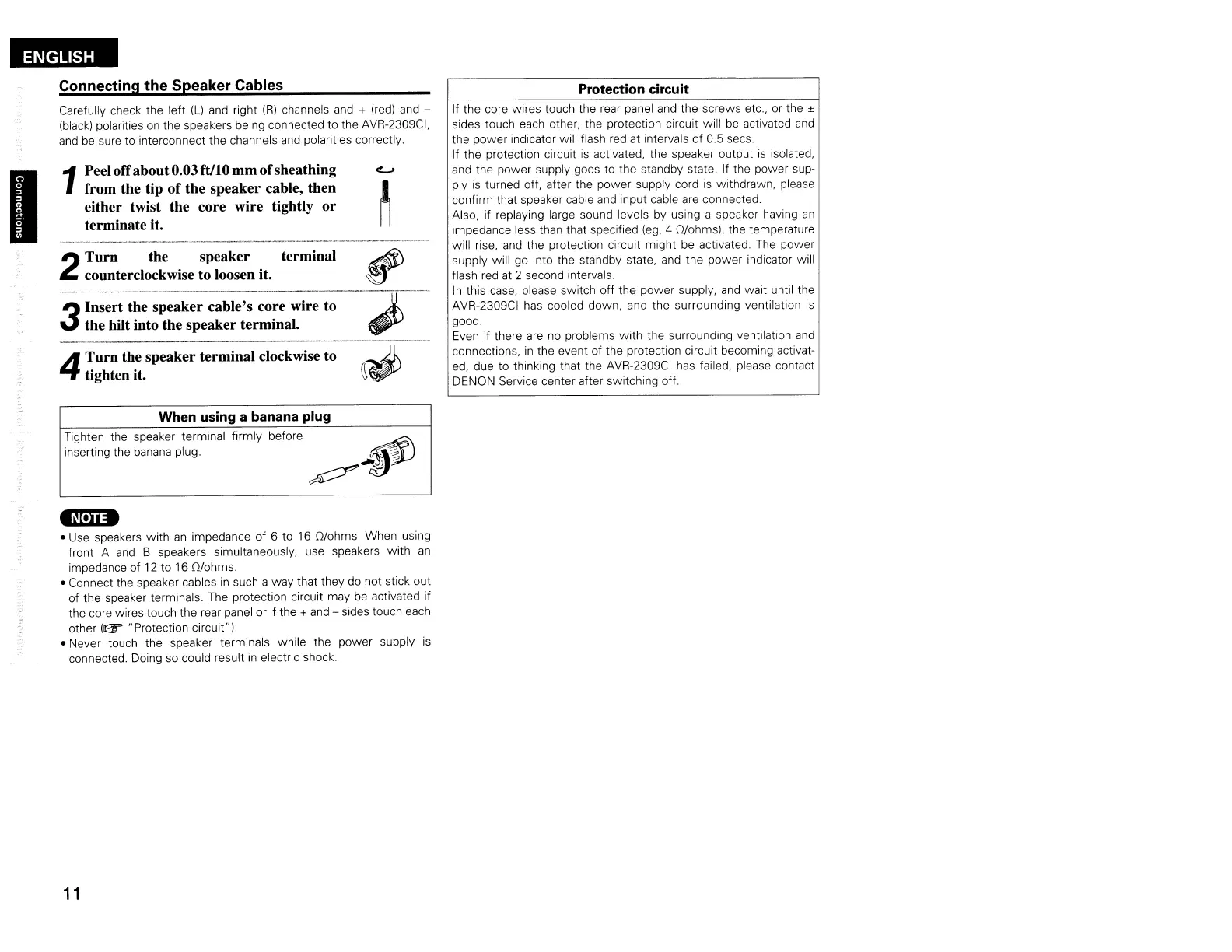

Connecting the Speaker Cables
Protection circuit
2
Turn the speaker terminal
counterclockwise to loosen it.
4
Turn the speaker terminal clockwise to
tighten it.
3
Insert the speaker cable's core wire to
the hilt into the speaker terminal.
If the core wires touch the rear panel
and
the screws etc., or the ±
sides touch each other, the protection circuit will be activated
and
the power indicator will flash red at inteNals of 0.5 secs.
If the protection circuit
is
activated, the speaker output
is
isolated,
and
the power supply goes to the standby state. If the power sup-
ply
is
turned off, after the power supply cord
is
withdrawn, please
confirm that speaker cable
and
input cable
are
connected.
Also, if replaying large sound levels by using a speaker having
an
impedance less than that specified
(eg,
4 O/ohms!. the temperature
will rise,
and
the protection circuit might be activated. The power
supply will go into the standby state, and the power indicator will
flash red at 2 second intervals.
In
this case, please switch off the power supply,
and
wait until the
AVR-2309CI has cooled down, and the surrounding ventilation
is
good.
Even if there
are
no
problems
with
the surrounding ventilation
and
connections,
in
the event of the protection circuit becoming activat-
ed, due to thinking that the AVR-2309CI has failed, please contact
DENON Service center after switching off.
,
~
._-------
~
Carefully check the left (Ll
and
right
(R)
channels
and
+ (red)
and
-
(black)
polarities on the speakers being connected to the AVR-2309CI,
and
be
sure to interconnect the channels and polarities correctly.
1
Peel offabout0.03ftJI0 mm
of
sheathing
from the tip
of
the speaker cable, then
either twist the core wire tightly or
terminate it.
I
When using a banana plug
Tighten the speaker terminal firmly before
~
inserting the banana plug.
~""
"3;
~J\
;>
~~
-Nei
••
Use speakers with
an
impedance of 6 to
16
O/ohms. When using
front A
and
B speakers simultaneously, use speakers with
an
impedance
of
12
to 16 O/ohms.
Connect the speaker cables
in
such a way that they do not stick out
of the speaker terminals. The protection circuit may
be
activated if
the core wires touch the rear panel or if the +
and
- sides touch each
other
(Gf'
"Protection circuit").
Never touch the speaker terminals while the power supply is
connected. Doing so could result
in
electric shock.
11
