ENGLISH

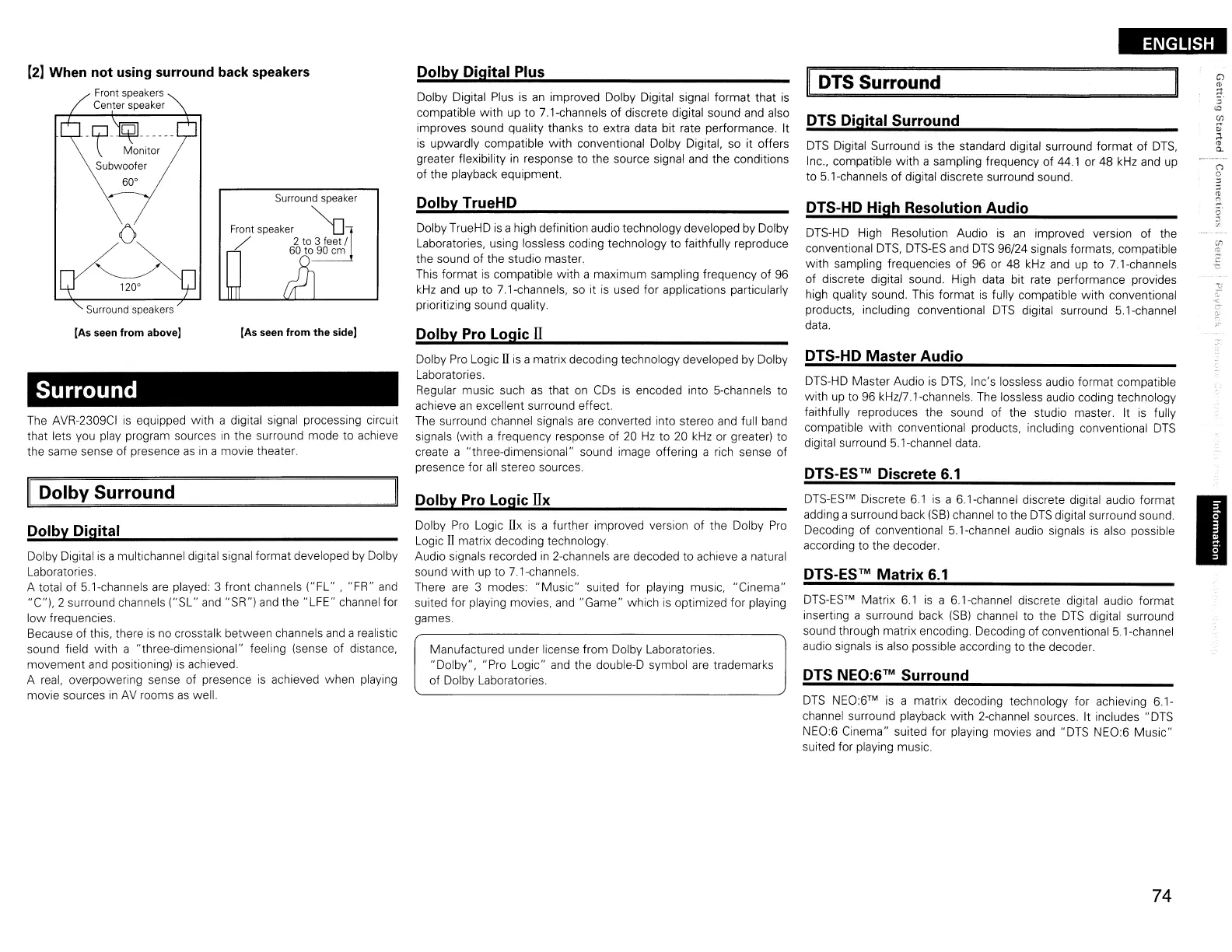

[2] When
not
using surround back speakers
DTS Digital Surround
DTS-HD High Resolution Audio
DTS-HD
High Resolution Audio
is
an
improved version of the
conventional
DTS,
DTS-ES
and
DTS
96/24 signals formats, compatible
with sampling frequencies of 96 or 48
kHz
and
up
to 7.1-channels
of discrete digital sound. High data bit rate performance provides
high quality sound. This format
is
fully compatible with conventional
products, including conventional
DTS
digital surround 5.1-channel
data.
DTS
Digital Surround
is
the standard digital surround format of
DTS,
Inc., compatible
with
a sampling frequency of
44.1
or 48
kHz
and
up
to 5.1-channels of digital discrete surround sound.
~
DTS Surround
Dolby Pro Logic
II
Dolby TrueHD
Dolby Digital
Plus
is
an
improved Dolby Digital signal format that
is
compatible with up to 7.1-channels of discrete digital sound
and
also
improves sound quality thanks to extra data bit rate performance.
It
is
upwardly compatible with conventional Dolby Digital,
so
it offers
greater flexibility
in
response to the source signal
and
the conditions
of the playback equipment.
Dolby TrueHD
is
a high definition audio technology developed by Dolby
Laboratories, using lossless coding technology
to faithfully reproduce
the sound of the studio master.
This format
is
compatible with a maximum sampling frequency of
96
kHz
and
up to 7.1-channels, so it
is
used for applications particularly
prioritizing sound quality.
Dolby Digital Plus
[As
seen from the side)
Surround speaker
Front speaker
~
/
2 to 3
feet!
60 to 90
em
120
0
o
Su
rround speakers
[As seen from above]
Surround
The
AVR-2309CI
IS
equipped with a digital signal processing circuit
that lets you play program sources
in
the surround mode to achieve
the same sense of presence
as
in
a movie theater.
Dolby Surround
Dolby Digital
Dolby Digital
is
a multichannel digital signal format developed
by
Dolby
Laboratories.
A total of 5.1-channels
are
played: 3 front channels ("FL" , "FR"
and
"C"), 2 surround channels ("SL"
and
"SR")
and
the "LFE" channel for
low frequencies.
Because of this, there
is
no
crosstalk between channels
and
a realistic
sound field with a "three-dimensional" feeling (sense of distance,
movement
and
positioning)
is
achieved.
A
real,
overpowering sense of presence
is
achieved when playing
movie sources
in
AV
rooms
as
well.
Dolby
Pro
Logic II
is
a matrix decoding technology developed by Dolby
Laboratories.
Regular music such
as
that
on
CDs
is
encoded into 5-channels to
achieve
an
excellent surround effect.
The surround channel signals
are
converted into stereo
and
full
band
signals (with a frequency response of
20
Hz
to
20
kHz
or greater) to
create a "three-dimensional" sound image offering a
rich
sense of
presence for
all
stereo sources.
Dolby Pro Logic
IIx
Dolby
Pro
Logic IIx
is
a further improved version of the Dolby
Pro
Logic II matrix decoding technology.
Audio signals recorded
in
2-channels
are
decoded to achieve a natural
sound with
up
to 7.1-channels.
There
are
3 modes:
"Music"
suited for playing music, "Cinema"
suited for playing movies,
and
"Game" which
is
optimized for playing
games.
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic"
and
the double-D symbol
are
trademarks
of Dolby Laboratories.
DTS-HD
Master
Audio
DTS-HD
Master Audio
is
DTS,
Inc's lossless audio format compatible
with
up
to
96
kHz/7.1-channels. The lossless audio coding technology
faithfully reproduces the sound of the studio master.
It
is
fully
compatible with conventional products, including conventional
DTS
digital surround 5.1-channel data.
DTS-ES™
Discrete
6.1
DTS-ESTM
Discrete
6.1
is
a 6.1-channel discrete digital audio format
adding a surround back
(SB)
channel to the
DTS
digital surround sound.
Decoding of conventional 5.1-channel audio signals
is
also possible
according to the decoder.
DTS-ESTM
Matrix
6.1
DTS-ESTM
Matrix
6.1
is
a 6.1-channel discrete digital audio format
inserting a surround back
IS
B)
channel to the
DTS
digital surround
sound through matrix encoding. Decoding of conventional 5.1-channel
audio signals
is
also possible according to the decoder.
DTS
NEO:6™
Surround
DTS
NEO:6™
is
a matrix decoding technology for achieving 6.1-
channel surround playback with 2-channel sources.
It
includes"
DTS
NEO:6 Cinema" suited for playing movies
and
"DTS NEO:6 Music"
suited for playing music.
I
74
