Denon AVR-3808CI Service Manual

11
AVR-3808CI / AVR-3808 / AVC-3808
Please refer to "EXPLODED VIEWS(3/3) (BACK PANEL UNIT)" for the disassembly method of each P.W.B included in Back panel unit.
Backpanelunit の各基板のはずしかたは "EXPLODEDVIEWS(3/3)(BACKPANELUNIT)" を参照してください。
3. Radiator unit
Please refer to "EXPLODED VIEWS(3/3) (RADIATOR UNIT)" for the disassembly method of each P.W.B included in Radiator unit.
Radiatorunit の各基板のはずしかたは "EXPLODEDVIEWS(3/3)(RADIATORUNIT)" を参照してください。
4. Power unit
Please refer to "EXPLODED VIEWS(1/3) (MAIN UNIT)" for the disassembly method of each P.W.B included in Power unit.
Powerunit の各基板のはずしかたは "EXPLODEDVIEWS(1/3)(MAINUNIT)" を参照してください。
5. Trans
Please refer to "EXPLODED VIEWS(1/3) (MAIN UNIT)" for the disassembly method of Trans.
Trans のはずしかたは "EXPLODEDVIEWS(1/3)(MAINUNIT)" を参照してください。

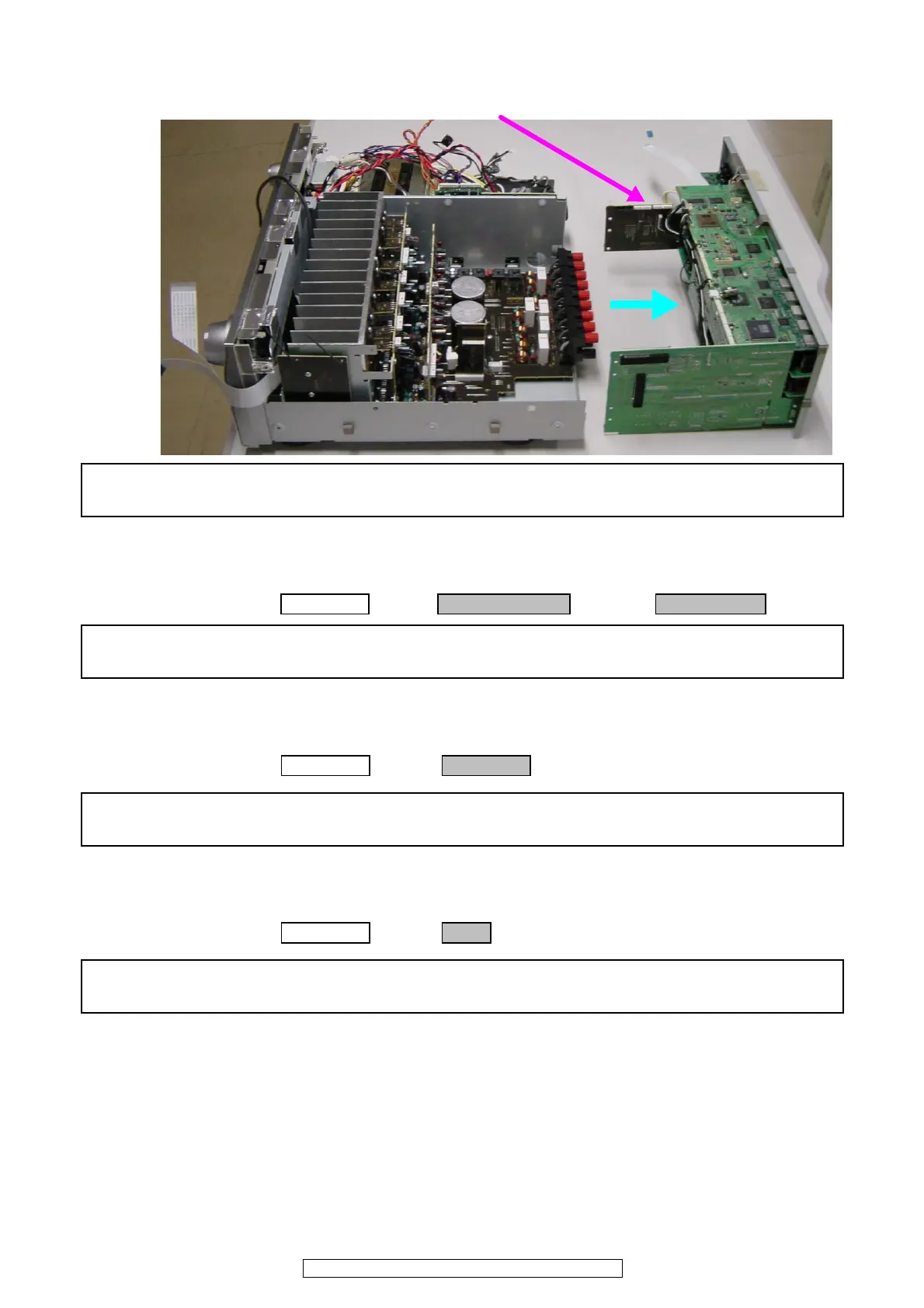

【Picture M】 Q3Back panel unit
proceeding (手順): Top cover → Back panel unit → Radiator unit
proceeding (手順): Top cover → Power unit
proceeding (手順): Top cover →Trans
