Denon AVR-3808CI Service Manual

16
AVR-3808CI / AVR-3808 / AVC-3808

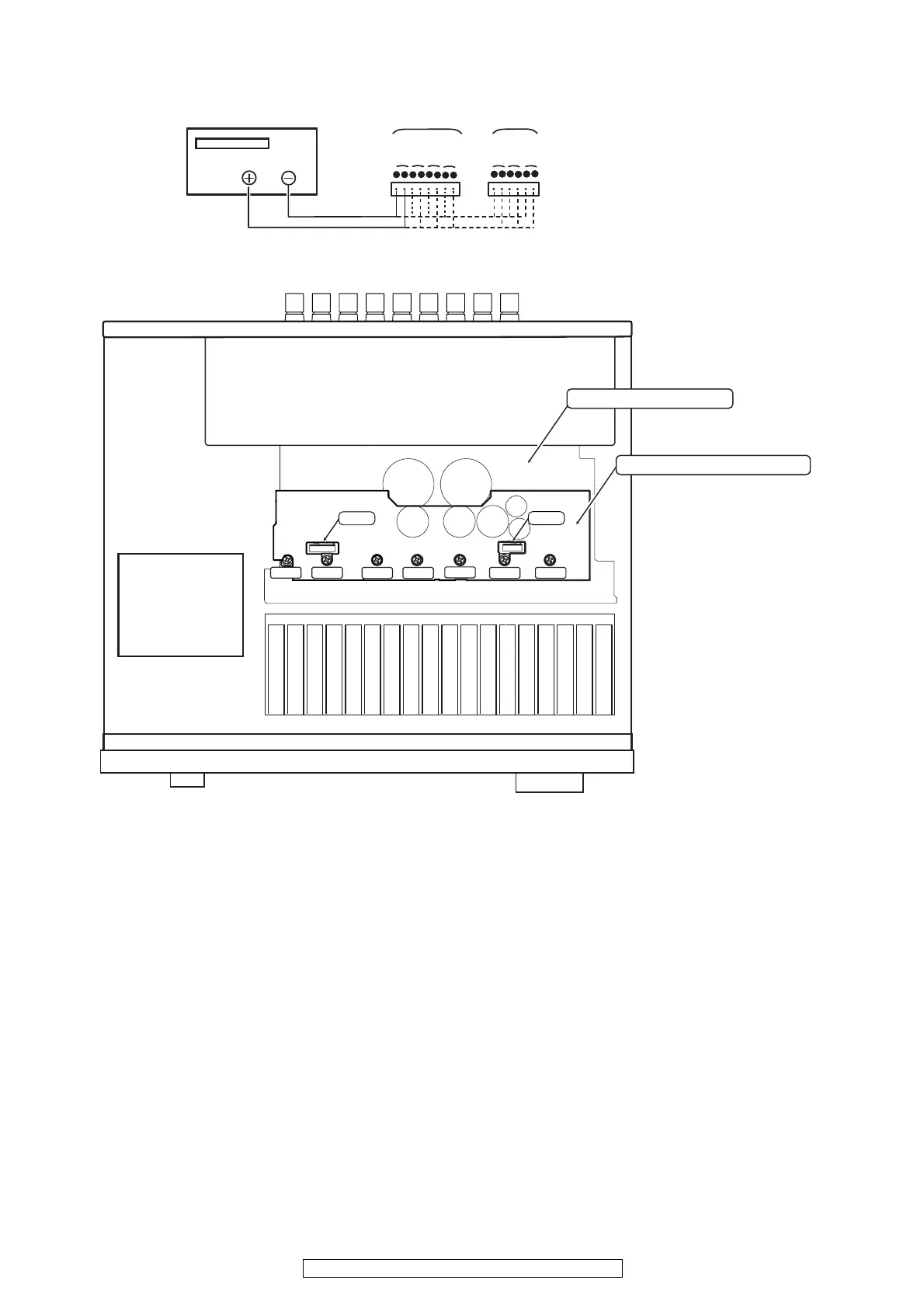

The adjustment volume and connection terminal of 1U-3806-
1 (POWER AMP Unit)P.W.B. under 1U-3802-2 (P.SUPPLY-
1 Unit)P.W.B..
Insert an adjustment driver / connection terminal from an ad-
justment aperture of 1U-3802-2(P.SUPPLY-1 Unit)P.W.B..
SL ch FR ch
FL ch
SR ch
TP101
Cch
SBR ch
SBL ch
TP102
Audio Section
DC Voltmeter
VR106
SBR ch
SBL ch
VR103
FR ch
VR102
SR ch
VR101
VR105
SL ch
Cch
VR104
FL ch
VR107
TP101
TP102
1U-3806-1 POWER AMP Unit
1U-3802-2 POWER SUPPLY-1 Unit
1U-3806-1(POWERAMPUnit) 基板の調整ボリュームと接続
端子は 1U-3802-2(P.SUPPLY-1Unit) 基板の下に有ります。
1U-3802-2(P.SUPPLY-1Unit) 基板の調整孔から調整ﾄﾞﾗｲﾊﾞｰ /
接続端子を挿入してください。
