Denon AVR-3808CI Service Manual

9
AVR-3808CI / AVR-3808 / AVC-3808
2. Back panel unit
(1) Disconnect the connector wires and unscrew a screw. ( コネクタワイヤーとねじをはずす。)
(2) Disconnect the P-SUPPLY-1 UNIT. (P-SUPPLY-1UNIT をはずす。)
proceeding (手順): Top cover → Back panel unit

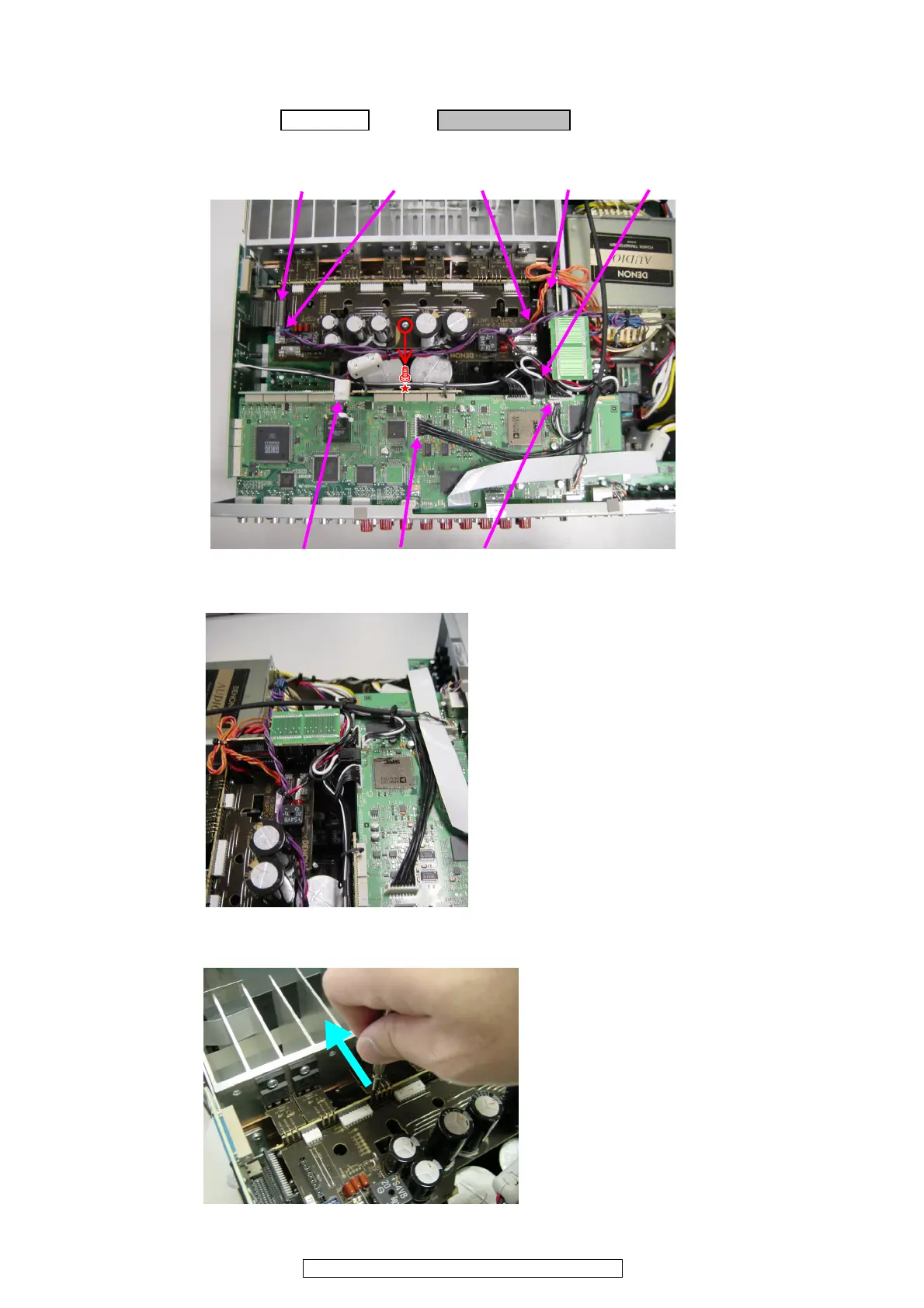

【Picture G】
eCX028
rCY821
iCY421 oSCREW(★)
yCX033 uCW192 tCX027wCX034qCW191
【Picture H】
< attention of assembling (組立のご注意)>
※ Fix the wiring of the wire like this photograph.
( この写真のようにワイヤーの配線を整えてください。)
【Picture I】
