Denon AVR-3808CI - A. Video Unit Schematic Diagram

215 pages

To Next Page

To Previous Page

87654321

AVR-3808CI / AVR-3808 / AVC-3808

SCHEMATIC DIAGRAMS (17/37)

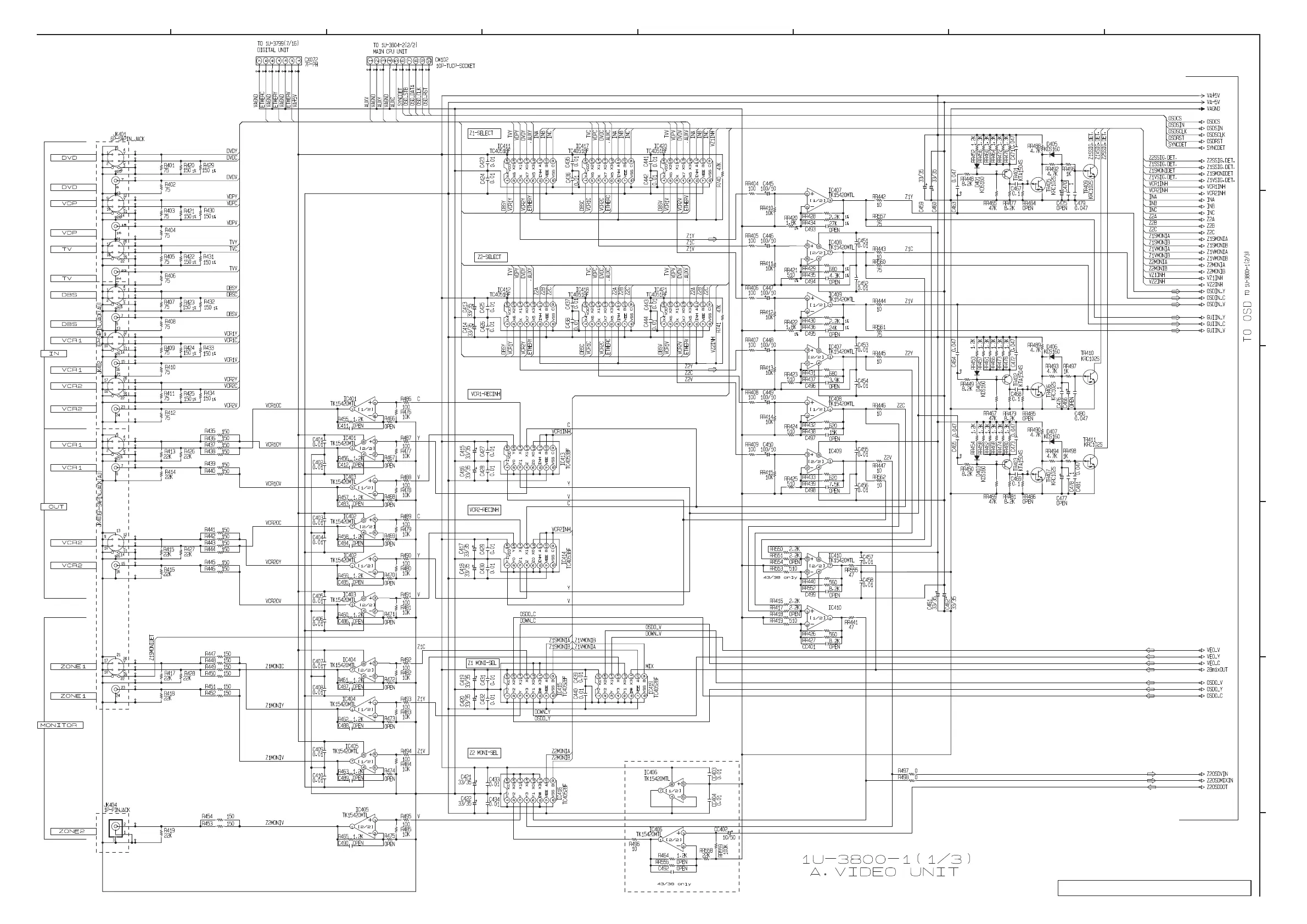

1U-3800 A. VIDEO UNIT(1/6)

1U-3800-1 A. VIDEO UNIT(1/3)
