Denon AVR-3808CI

To Next Page

To Previous Page

87654321

AVR-3808CI / AVR-3808 / AVC-3808

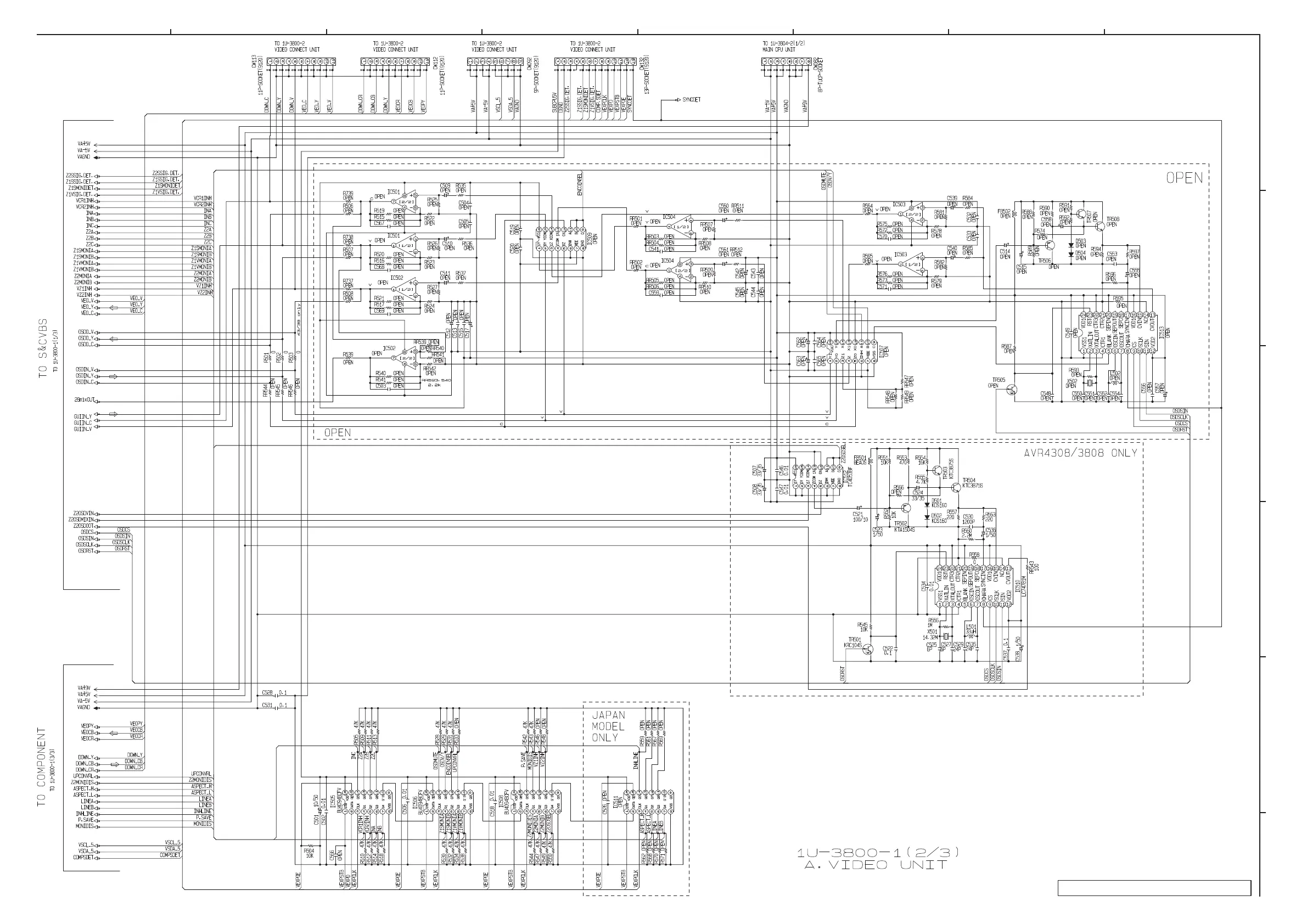

SCHEMATIC DIAGRAMS (18/37)

1U-3800 A. VIDEO UNIT(2/6)

1U-3800-1 A. VIDEO UNIT(2/3)
