Denon AVR-3808CI Service Manual

8
AVR-3808CI / AVR-3808 / AVC-3808

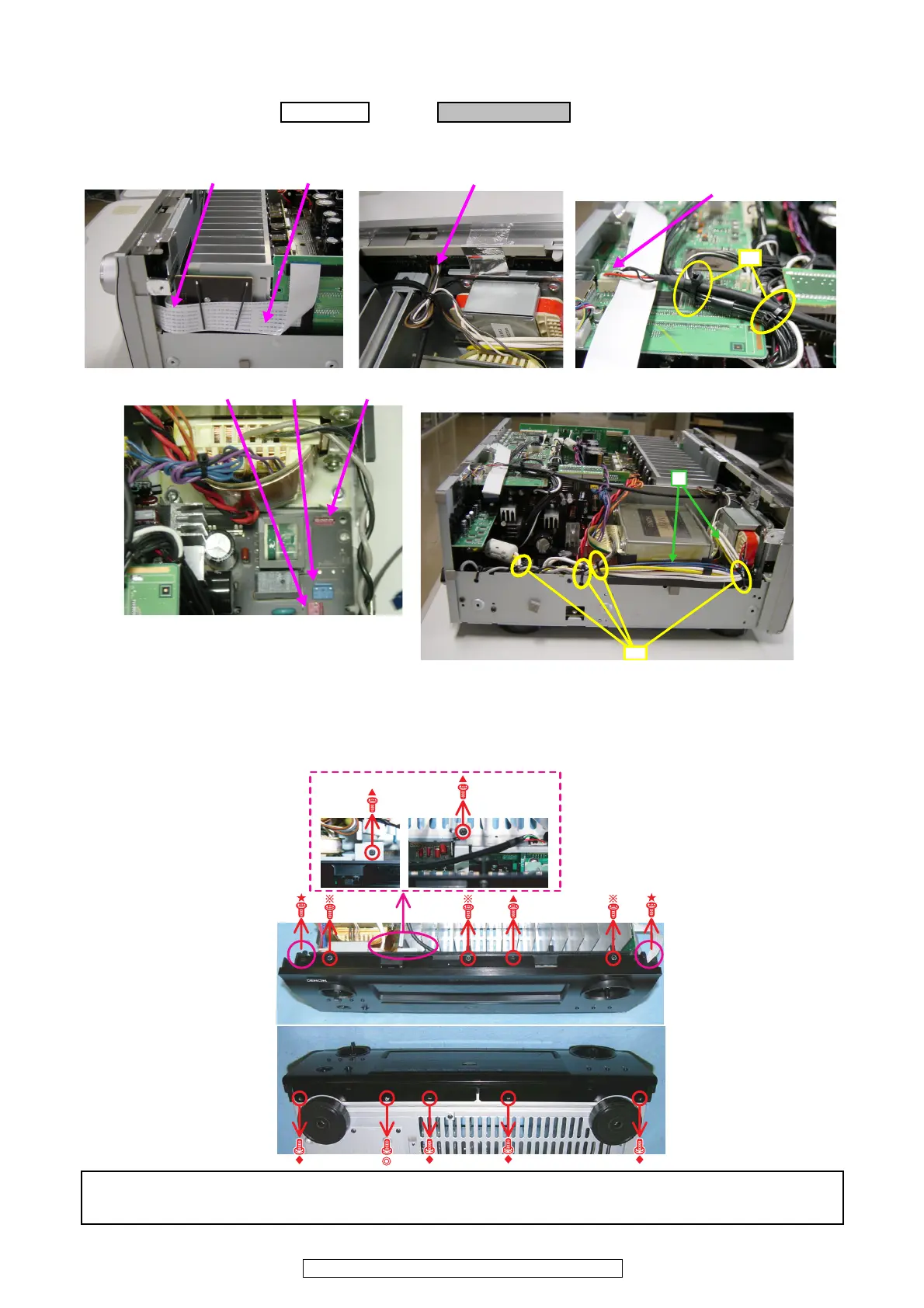

1. Front panel unit
(1) Disconnect the connector wires. ( コネクターワイヤーをはずす。）
< attention of assembling( 組立のご注意 )>
※ The wire of "A" not having slack. ("Ａ" 部のワイヤーにたるみがないこと )
(2) Remove the screws. ( ねじをはずす。)
Please refer to "EXPLODED VIEWS(2/3) (FRONT PANEL UNIT)" for the disassembly method of each P.W.B included in Front panel unit.
Frontpanelunit の各基板のはずしかたは "EXPLODEDVIEWS(2/3)(FRONTPANELUNIT)" を参照してください。
proceeding (手順): Top cover → Front panel unit
【Picture A】 qCX251 wCX271
【Picture B】 eCX963
【Picture C】 rCY053
cut
【Picture D】 tCX046yCX025uCX022
【Picture E】
cut
A
Top view
Bottom view
【Picture F】 qSCREW(▲) wSCREW(※) eSCREW(★) rSCREW(◎) tSCREW(◆)
