Denon AVR-3808CI Service Manual

69
AVR-3808CI / AVR-3808 / AVC-3808

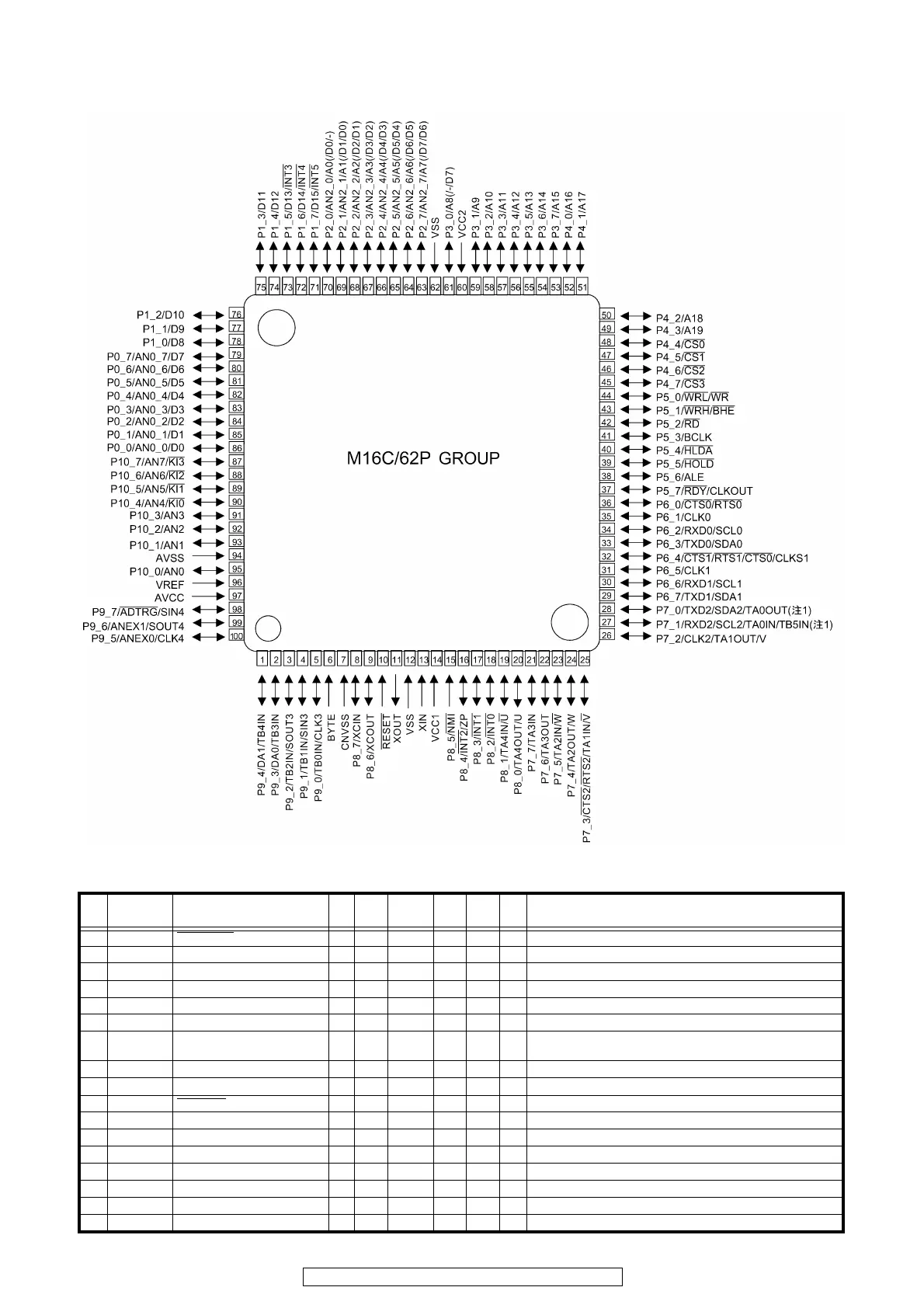

M3062LFGPGP (DI: IC951)
M3062LFGPGP Terminal Function
Pin PinName Symbol I/O Type Det
Op
(Int.)
Op
(Ext.)
Res
Function
1 P94/TB4 FPGAWRITE OC - - - Z AUDIOFPGArewritecontrol(ACTIVE"L")
2P93/TB3 DIRCE O C - - - Z DIRcontrolpin(LC89057W-VF4A)
3P92/SOUT3DIRDIN O C - - - Z DIRcontrolpin(LC89057W-VF4A)
4P91/SIN3 DIRDOUT I - Lv - Eu Z DIRcontrolpin(LC89057W-VF4A)
5 P90/CLK3 DIRCLK O C - - - Z DIRcontrolpin(LC89057W-VF4A)
6 BYTE BYTE - - - - - - GND(Ext.databusbitwidthswitching,16bit:L)
7CNVCS CNVSS - - - - Ed -
"Single-chip/Micro-processormodeswitching(Normalsingle-chip:L,
Rewritebootprogramstart:Hinputset)"
8P87 VERST O C - - Ed Z Videoencoderreset(ADV7320)
9P86 VDRST O C - - Ed Z Videoencoderreset(ADV7430)
10 RESET SUBRESET I- Lv -EuL Resetinput
11 XOUT X1 O - - - - - Oscillatorconnection
12 VSS VSS - - - - - - GND
13 XIN X2 I - - - - - Oscillatorconnection
14 VCC VCC - - - - - - +3.3V
15 P85/NMI NMI I - - - - - Notused(FixedtoH)
16 P84/INT2 CECIN I - E ↓ &L - Eu Z CEC-Dsignalinputpin(SII9185)
17 P83/INT1 ACKSIMO I - E ↓ &L - Ed Z MAIN-SUBμcomcomm.Controlinputpin
