ELECTROVAP MC2 STEAM BATH

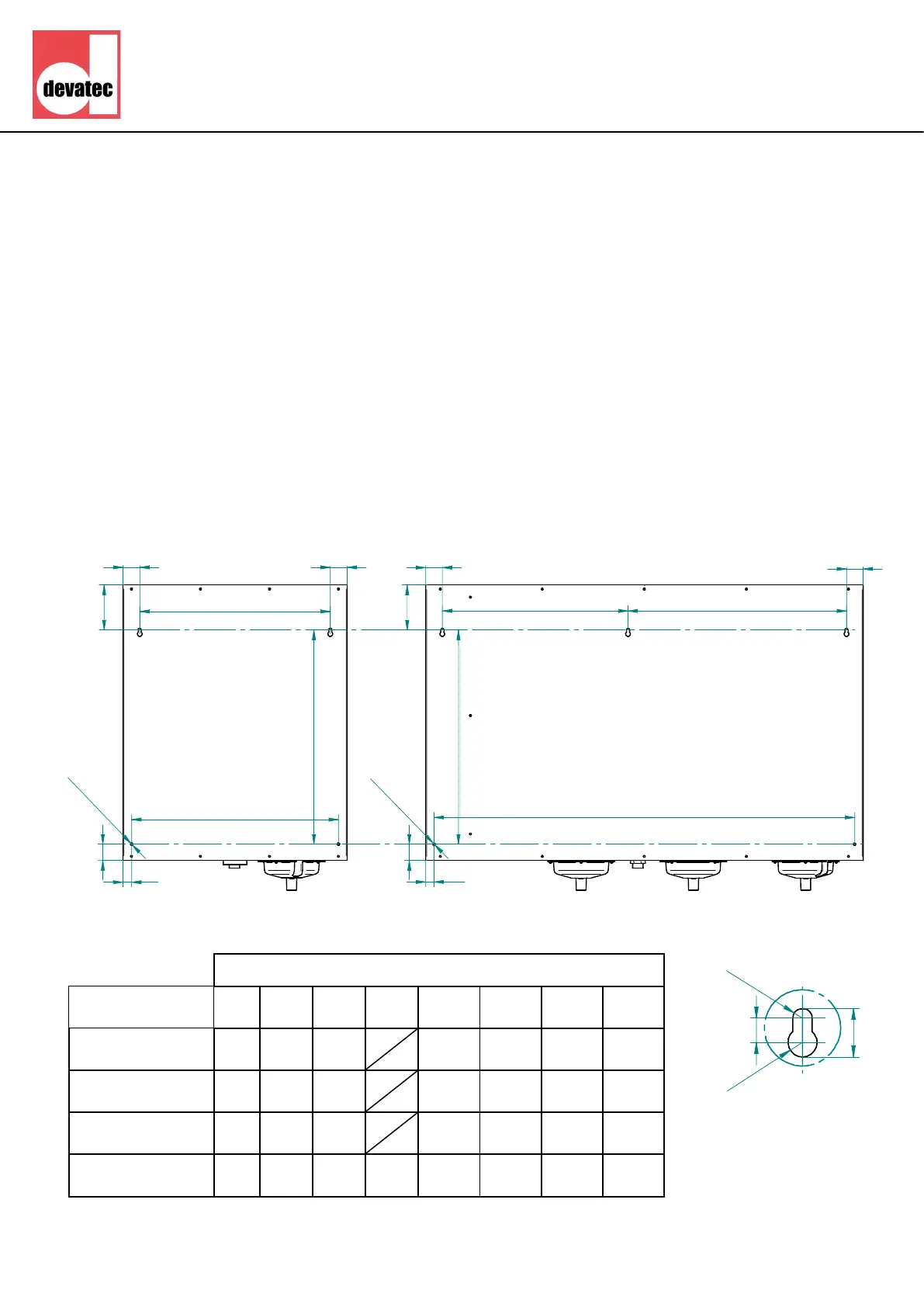

Installation - Step 1
Nota :
Use installation equipment and material appropriate to the surface on which the unit
should be hanged .
The dimensions mentioned underneath are for cabinets without doors.
A
DETAIL A
R
4
R
6
10
20
Drilling distances in mm
Model A B C D E F G H
ELMC 1 SM CYL
21 110 425 40 21 425 385
ELMC 1 LG CYL
41 110 467 40 21 507 525
ELMC 2 CYL
41 110 760 40 21 800 525
ELMC 3 CYL
41 110 455 535 40 21 1030 525
40
507
1030
467
41
110 110
41
40
21
41
41
455 535
O
6
2 x
O
6
2 x
A
A
A
A
B
B
C
C
D
G
G
F
E
E
21
F
52
5
H
52
5
H
Method:
Mark and drill the mounting holes for 6 mm screws (s.a. the drilling distance table) :
ELMC 1 & 2 cylinders : 4 mounting screws - ELMC 3 cylinders : 5 mounting screws
Insert pegs in holes and the upper screws. Allow about 10 mm for hanging the cabinet.
Hang the cabinet and level it vertically and horizontally. Screw up the upper screws and
then screw up the lower screws.
Détail
fixation haut
Installation on wall
ELMC 1 & 2 CYL ELMC 3 CYL
• CYL= Cylinder
• SM CYL = small cylinder, LG CYL = large cylinder (s.a. electrical table)
Detail of
hanging hole
