ELECTROVAP MC2 STEAM BATH
Installation - Step 3
Steam from the cylinder enters the hammam via a steam distribution nozzle. This nozzle is
made of material designed to prevent scalding. In order to obtain optimum performance of your
generator, it is recommended that these instructions be adhered to as far as possible.
There are two steam inlet diameters available : Ø 25 mm and Ø 40 mm

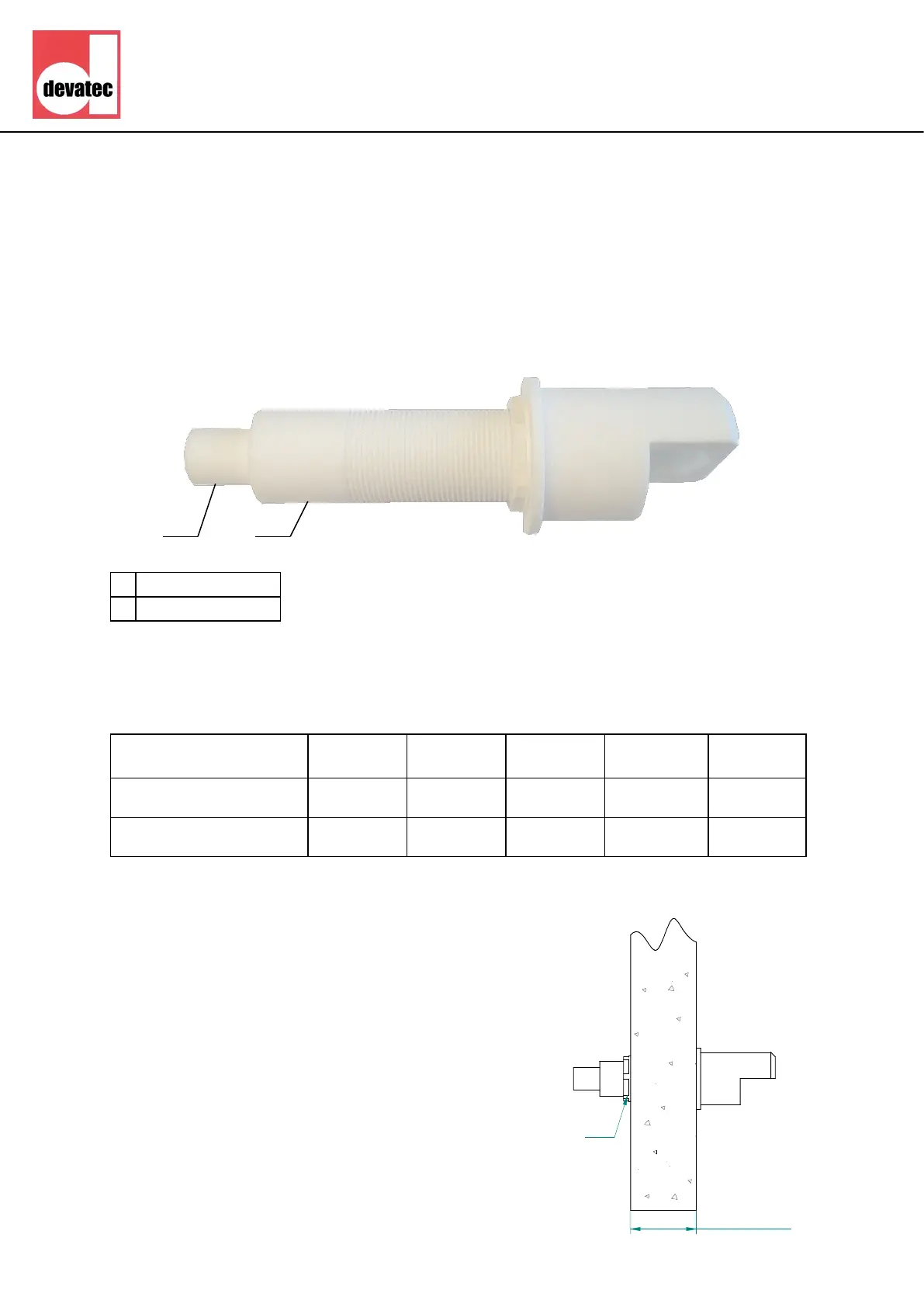

STEAM DISTRIBUTION NOZZLE
ELMC model 1 SM CYL 1 LG CYL 2 CYL 3 CYL
10 single
phase
Number of steam nozzle(s) 1 1 2 3 1
Steam inlet diamenter Ø 25mm Ø 40mm Ø 40mm Ø 40mm Ø 25mm
Steam nozzle selection table
The number of distribution nozzles and the diameters depend on the steam generator model.
1 Steam inlet Ø 25mm
2 Steam inlet Ø 40mm
• SM CYL = small cylinder, LG CYL = large cylinder (s.a. electrical tables)
1
2
Wall installation
• The installation wall should be no thicker
than 90 mm.
• Bore a hole of Ø 41mm
• Insert the nozzle body in the hole
• And tighten the 1"1/2 nut to secure the
nozzle on wall
