ELECTROVAP MC2 STEAM BATH
Installation - Step 4
Condensate draining
The following drawing shows the water draining connections that should be made.
1. The devatec supplied steam hose should be used :
ELMC 1 cylinder : 1m Ø25mm hose with 1 hose clamp (supplied).
ELMC 2 cylinders : 1m + 1.2m Ø25mm hose with 2 clamps (supplied).
ELMC 3 cylinders : 1m + 1.2m + 1.8m Ø25mm hose with 3 clamps (supplied).
These hoses are designed to be connected to the draining system. Regular replacement is
recommended.
2. If rigid piping is used, it must be heat (100°C) and pressure resistant PVC material and have a 60
mm wide diameter.
3. The discharge hose must be free from any obstacle. It is recommended that each steam cylinder
has its own drain pipe and tank arrangement.
4. Use water tanks with a lid that have water collecting facilities.
5. A funnel can also be used but it should be offset from the underside of the unit to prevent any
steam and/or condensation from getting into the cabinet. The installation of a siphon (as per the
draining hose) is recommended and arrangements for holding water spilling should also be made.
6. CAUTION : keep a minimum pitch of 10° for both the draining hose of the generator and for
general drain pipe (s.a. picture 1).

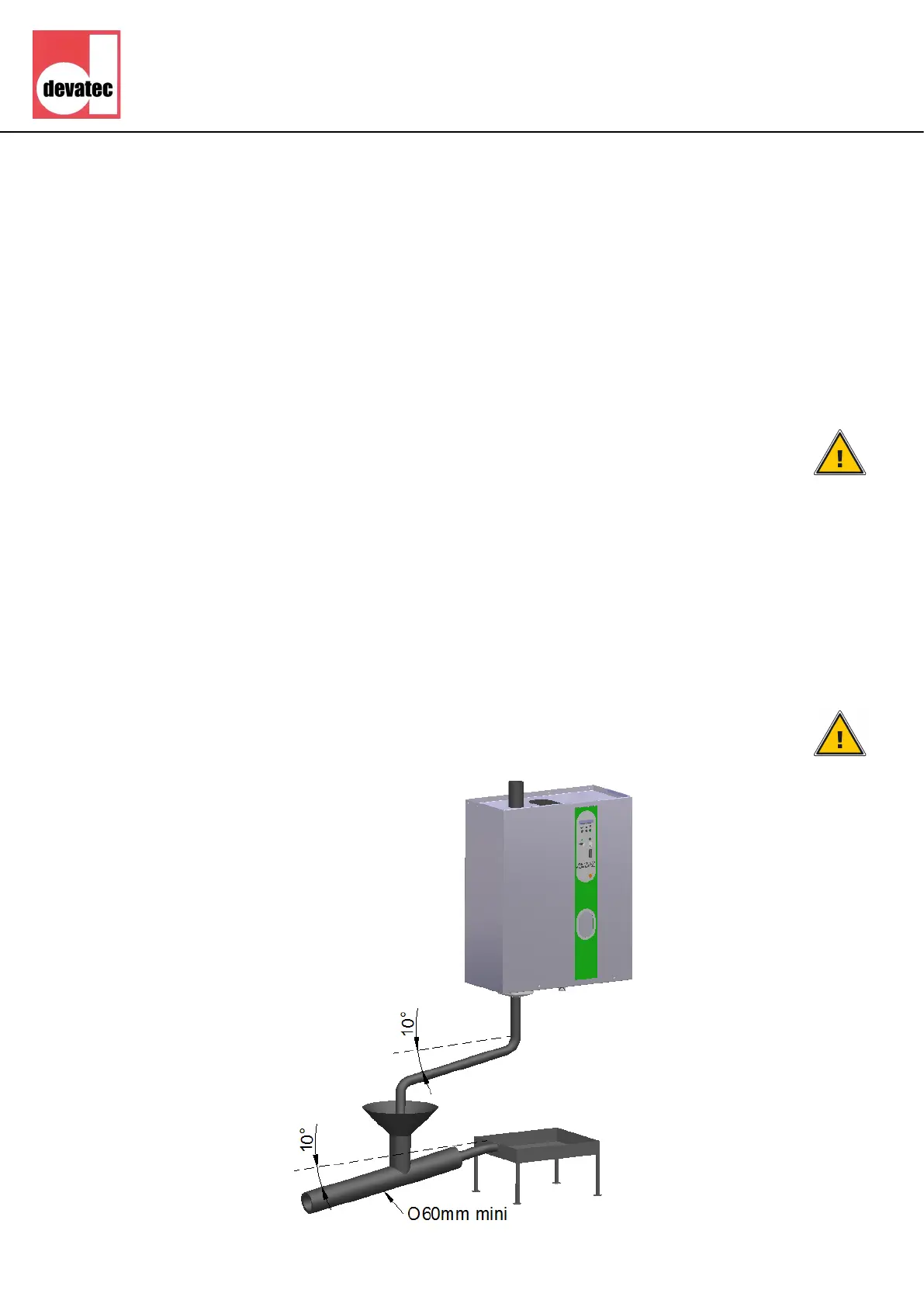

Fig.1
