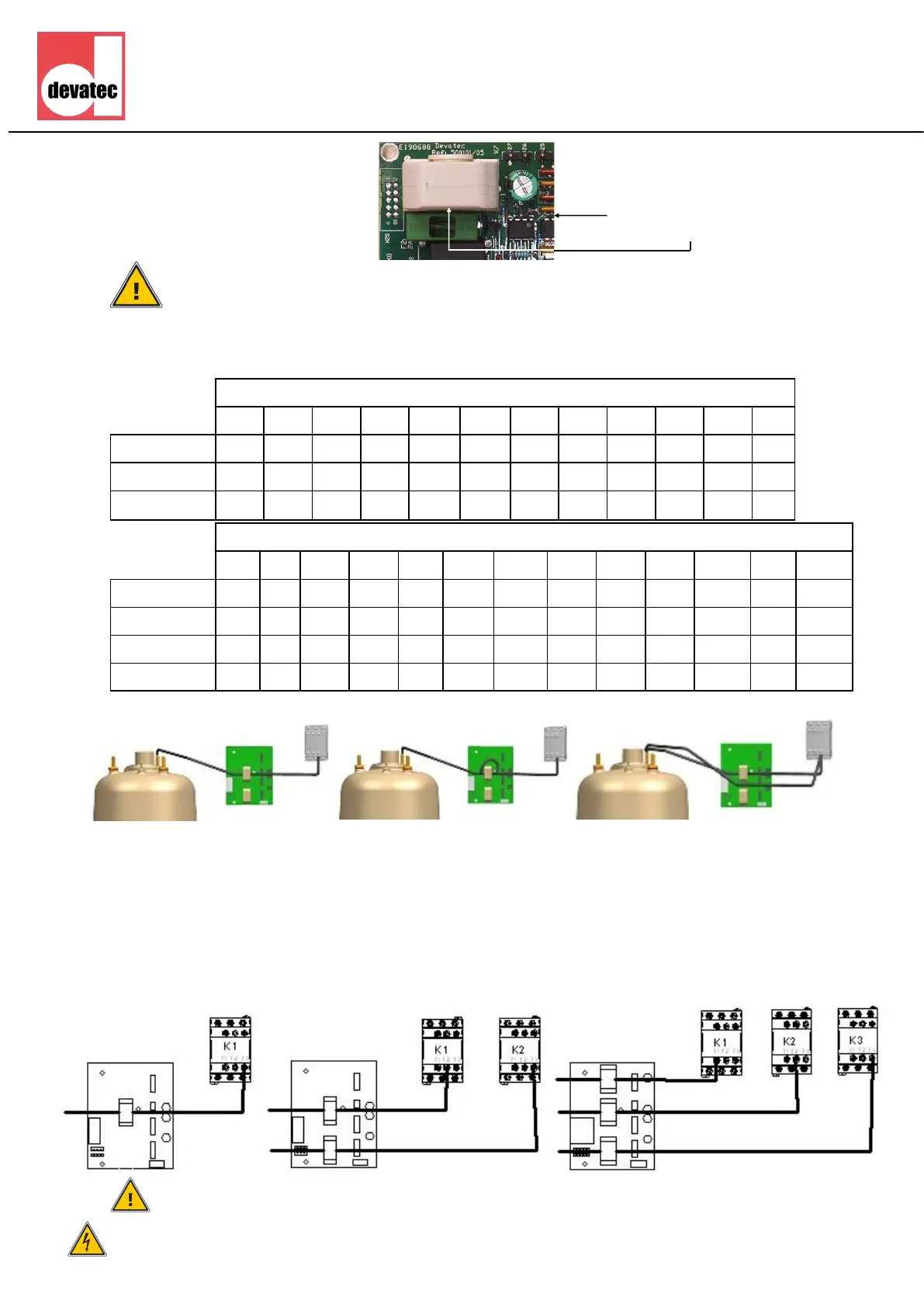

ELECTROVAP MC2 STEAM BATH
Maintenance - PCB replacement
ALL WORKS CONCERNED WITH ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A SKILLED AND QUALIFIED PERSONNEL
When the PCB or a power cable is replaced, it is essential for correct operation to use the
method of wiring appropriate to your exact model of humidifier.
For steam generators with multiple cylinders, wire up each corresponding Torroidal Trans-
former with relevant method.
Method n°2
Method n°3
Transformer of intensity (TI)
Main board ref: 500102
Power cable hole in
transformer
The power cable is once run
through and looped over the
torroidal transformer and back
through the transformer hole. Fix
the cable into the contactor.
Use the specialised split power cable.
Run one of the power cable cores
once through the torroidal
transformer then into the contactor.
Run the second power cable core
directly to the contactor.
ELMC 40 to 60
ELMC 70 to 90
TORROIDAL TRANSFORMER WIRING METHOD
CONNECTING THE TI POWER CABLE INTO THE CONTACTOR
ElectroVap MC2 from 380V to 690V
5 8 10 15-2 20 30 30HC 40 50 60 60HC 90 90HC
Nb of phases 3 3 3 3 3 3 3 3 3 3 3 3 3
Method n°1 X X X X X
Method n°2 X
Method n°3 X X X X X X X
ElectroVap MC2 from 208V to 230V
5 5 8 10 10_2 15-2 20 30 40 50 60 70
Nb of phases 1 3 3 3 1 3 3 3 3 3 3 3
Method n°1 X X X X
Method n°3 X X X X X X X X
ELMC 5 to 30
The power cable is run once
through the torroidal transformer,
then into the contactor.
The power cable identified with a brown sticker must be connected into the T1 terminal of the contactor.
Method n°1
