Devatec ELECTROVAP MC2 - Humidifier Component Parts; ELMC 5-30 Humidifier Component Overview

9 Pictures for illustrating purposes only
ELECTROVAP MC2 STEAM BATH
Humidifier component parts
20
15
5
6
17
21
18
19
16
8
14
11
13
10
12
9
24
22
23
7
2
3
3
1
1 Steam hose
2 Water feed hose 12x16mm
3 Hose clamp 16x25mm
4 Overflow water hose 18x22m
5 On/off rocker switch
6 Stand-by lamp
7 Grommet
8 Drain cup (upper)
9 Water inlet valve
10 LCD display board
11 Remote information board (option)
12 Power contactor
13 Main circuit board
14 Filling cup
15 Drain valve
16 Cylinder strainer
17 Steam cylinder
18 Stainless steel electrode plate
19 High water level electrode
20 High water level electrode cable
21 Electrode live power cable
22 Cylinder water feed hose 18x22 mm
23 Flexible water feed hose 3/4” F
24 Hose clamp 12x22 mm

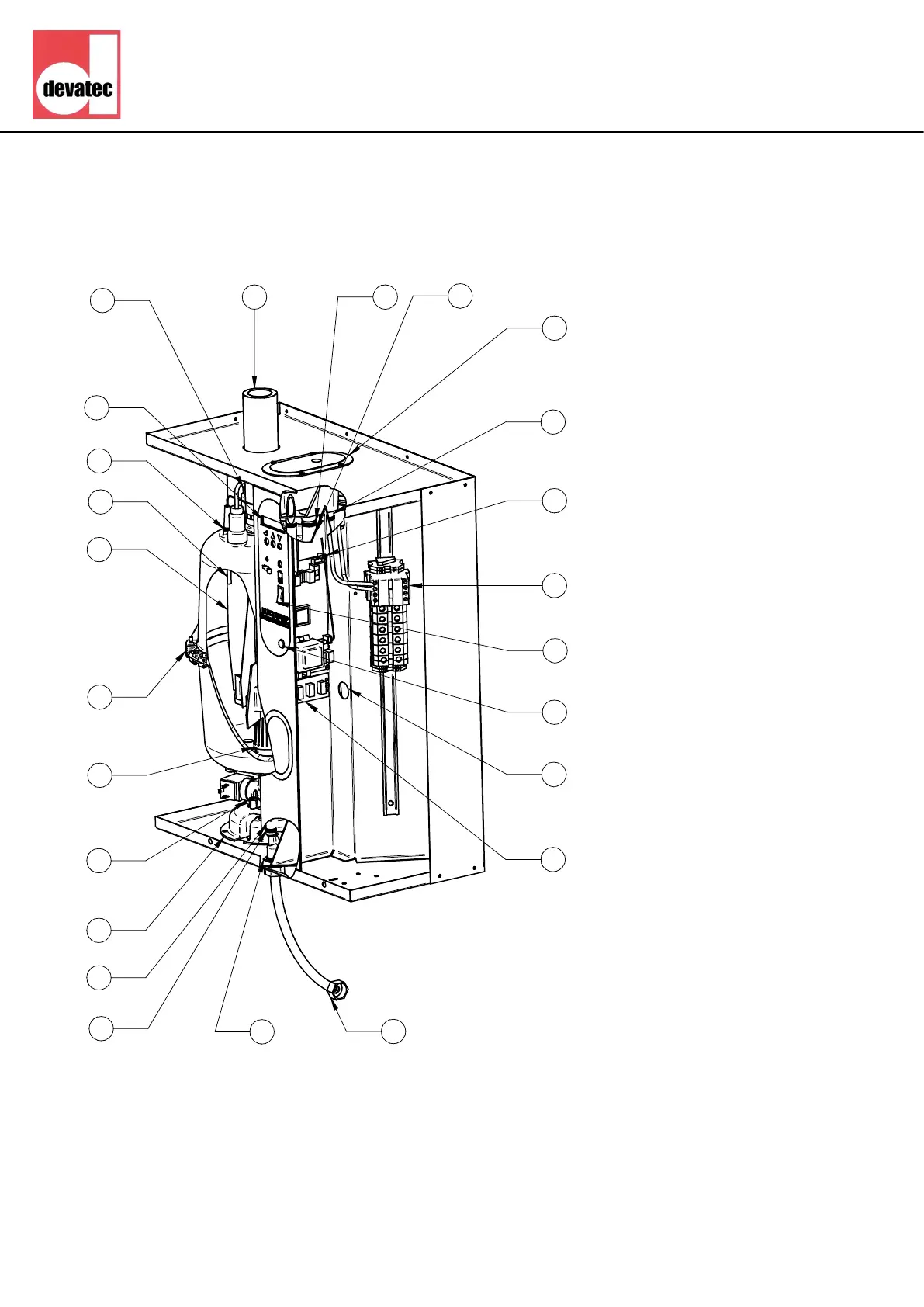

ELMC 5-30 humidifier split view
