ELECTROVAP MC2 STEAM BATH
Installation - Step 6

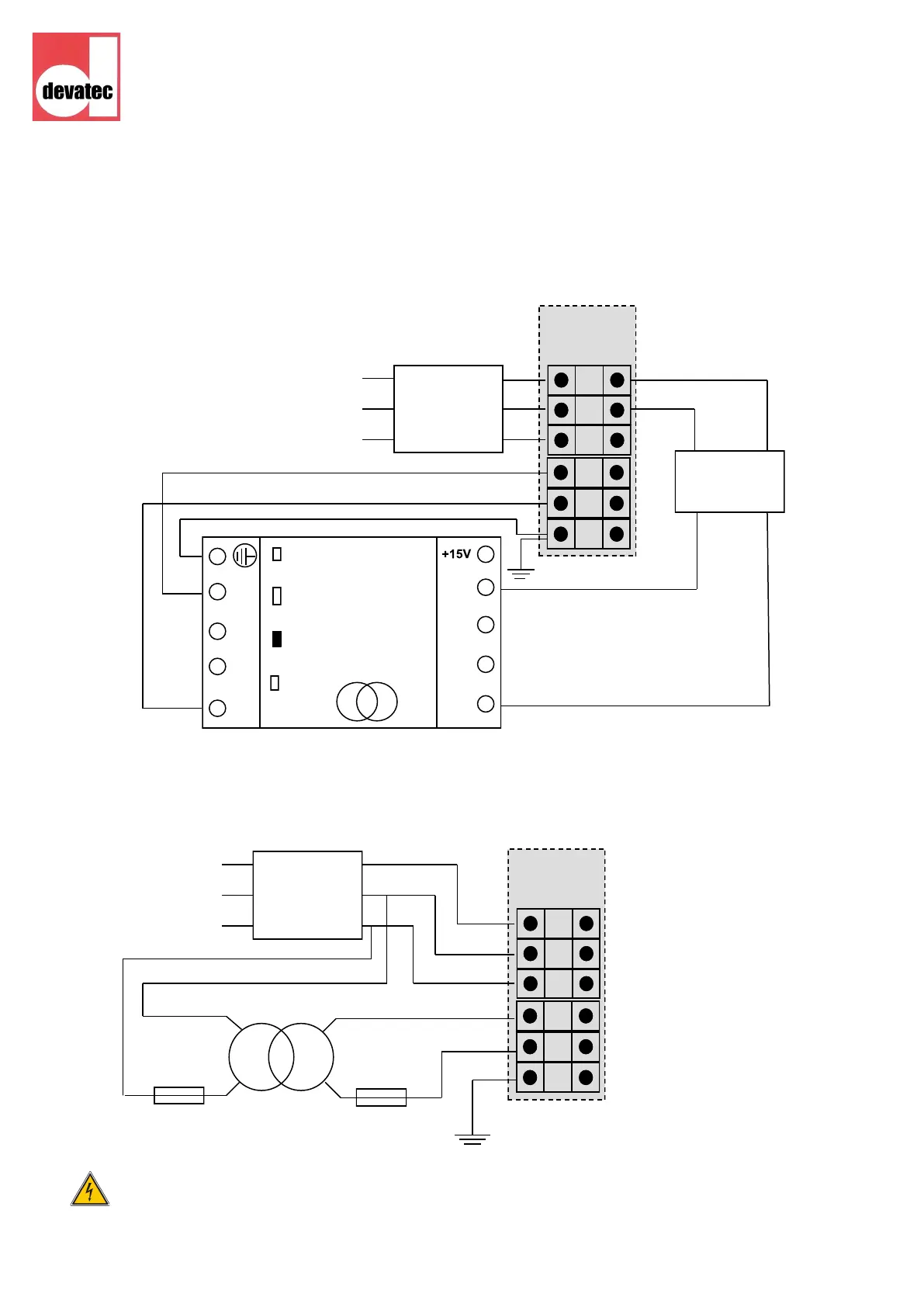

TRANSFOMER (OPTION)
The ELMC 5 to 90 humidifiers are electrically supplied in 3x400v + G + N. In case a neutral line is not
available, this can however be easily substitued by the use of our optional transfomer preventing the
installation of a specific neutral line.
1
2 3
4
0V
-15V
230V
400V
J1 J2 J3 J4
42
42
41
41
39
39
40
40
Primary circuit
protection
External
protection
power
Power
3x380-
400VAC
50-60Hz
Transformer
Prim: 400V
Sec: 230V
f: 50/60Hz
S=100VA
ALL WORKS CONCERNED WITH ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A SKILLED AND QUALIFIED PERSONNEL
The neutral is not earthed. In this case, we advocate the installation of a transformer
L2
L1
N
L3
L
PE
ELMC 5
to 90
WITH NEUTRAL « I T »
External
protection
power
Power
3 x-XXX
VAC
50-60Hz
L2
L1
N
L3
L
PE
ELMC 5
to 90
F2: 2A
F1
T
T: Transformer
Prim: XXXV
Sec: 230V
f: 50/60Hz
S=100VA
