ELECTROVAP MC2 STEAM BATH
Installation - Step 6
Failure to observe manufacturer’s installation recommendations will invalidate the manu-
facturer’s warranty.
ALL WORKS CONCERNED WITH ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A SKILLED AND QUALIFIED PERSONNEL

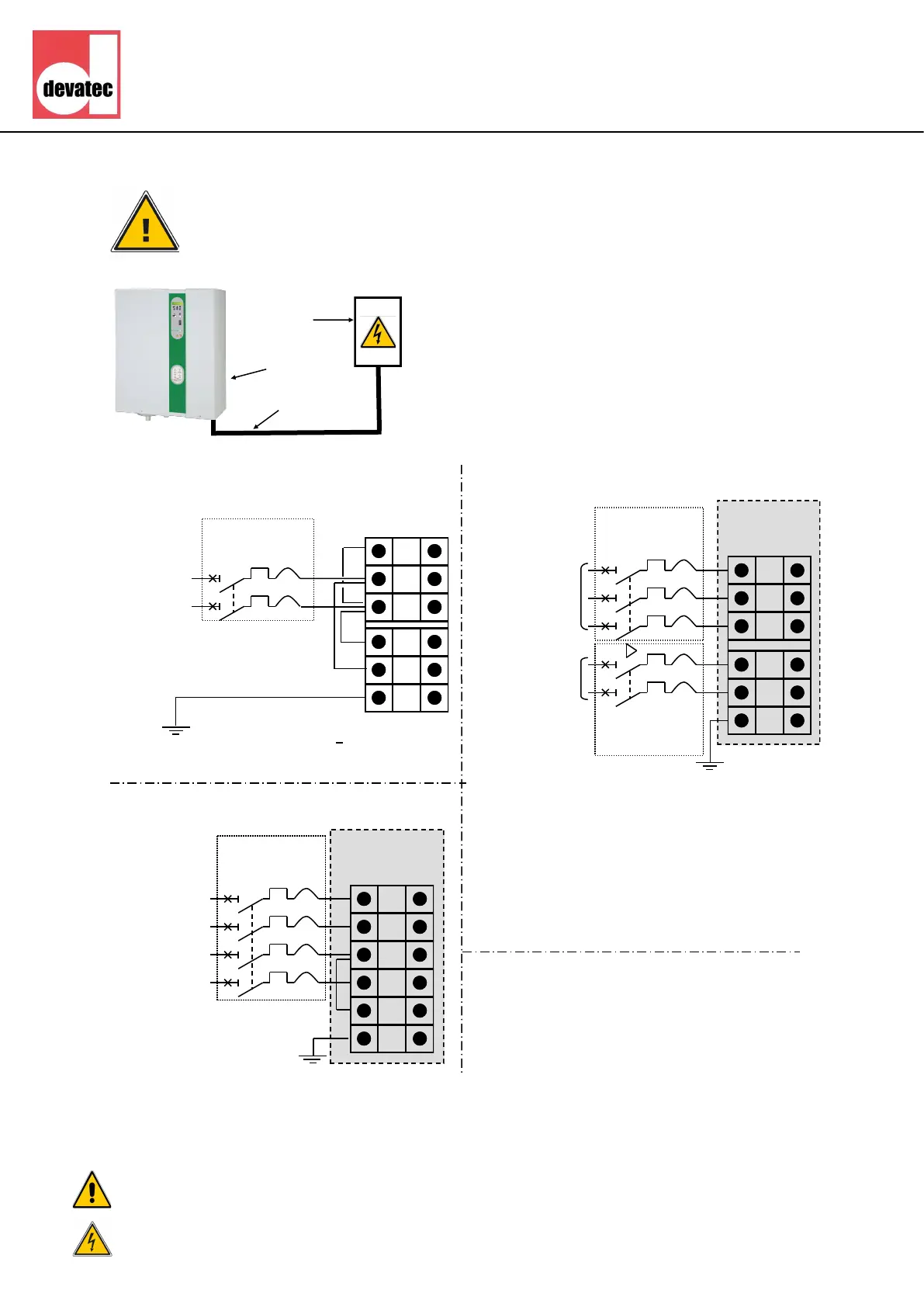

ELECTRICAL CONNECTIONS
3
2
L2
L1
N
L3
L
PE
ELMC 5
to 90
Q1: 2 poles
2A
3 x 380V /
3 x 400V
50-60Hz
220-230V
50-60Hz
Q2: 3 poles
C) 3 phases + neutral: 3 x 380-400 V
B) 3 X 380-400 V without neutral
L2
L1
N
L3
L
PE
ELMC
5/3 to 90
3x380V
3x400V
50-60Hz
+ neutral
Q2: 4 poles
D) 3 phases without neutral: 3 x 380-400 V
In this case, a transformer (option) must be ins-
talled (See technical notice page n°33)
All works concerned with electrical installation must be carried out by a skilled and
qualified personnel.
Make sure that all incoming power supplies are isolated before installation and
maintenance of the ElectroVap MC2 humidifier.
1 - Power supply isolator and MCB ( near the unit )
2 - Power supply cable
3– Electrical compartment
WARNING :
Failure to fit an electrical power isolator and MCB as
part of the electrical installation significantly increases
the risk of electric shock, which can be fatal.
Q1 and Q2: MCB and electrical power isolation
The symbol Δ between Q1 & Q2 means that
these MCB are coupled. The power MCB Q2
and control MCB Q1 are mechanically linked
together. So if a fault is detected, the power and
the control circuits are switched off and there is
no voltage on the unit. The unit is really off
voltage.
1
A) 2 x 220-230V
L3
L2
L
N
PE
ELMC 5
Q2: 2 poles
220 V /
230V
50-60Hz
L1
L
N
N
