ELECTROVAP MC2 STEAM BATH

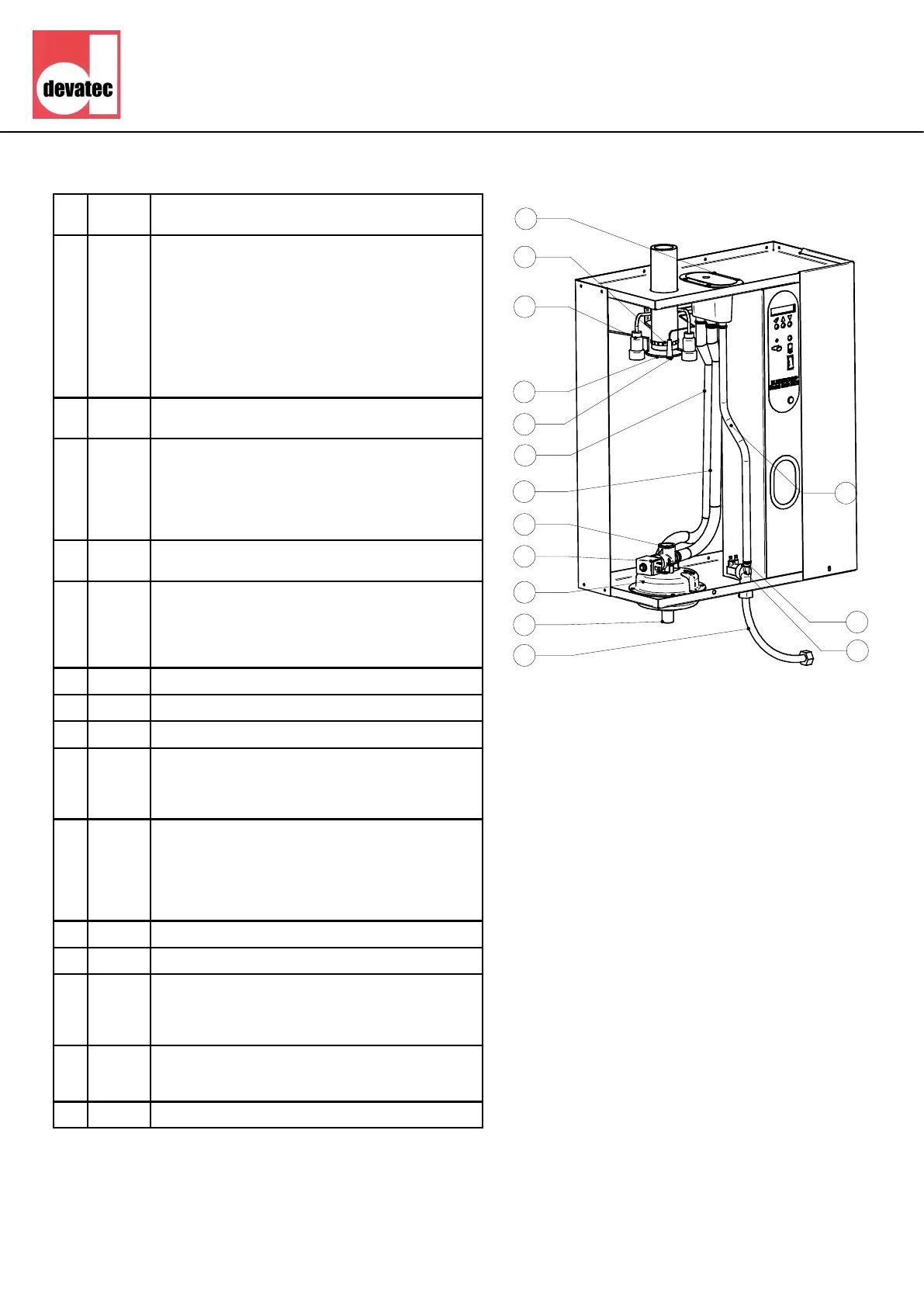

Maintenance - Spares list
• SM= Small model, LM= Large model
(Seer after electrical tables)
Re
p
Code Description
1 930058
930059
930060
930061
930062
Filling cup with hoses for ELMC 1 small sized
cylinder
Filling cup with hoses for ELMC 1 large sized
cylinder
Filling cup with hoses for ELMC 2 cylinders
Filling cup with hoses for ELMC 3 cylinders (left
hand side)
Filling cup with hoses for ELMC 3 cylinders (right
hand side)
2 930301
930302
Hose clamp Ø25x40mm
Hose clamp Ø40x60mm
3 930085
930086
930087
Power cable kit n° 1 (3 single cables with sockets
and boots)
Power cable kit n°2 (2 single cables + 1 split cable
with sockets and boots)
Power cable kit n° 3 (3 single cables + 1 split cable
with sockets and boots)
4 930079
930080
Cylinder retaining clip ELMC small sized cylinder
Cylinder retaining clip ELMC large sized cylinder
5 930088
930089
930090
High water level electrode cable ELMC 1 cylinder
High water level electrode cable ELMC 2 cylinders
High water level electrode cable ELMC 3 cylinders
6 930136 Overflow hose Ø18/22mm (per meter)
7 930136 Water feed hose Ø18/22mm (per meter)
8 930189 Bag of 10 drain valve 0-rings
9 930153
930307
930220
930161
230V complete drain valve
Plastic drain valve body
Drain valve stem with 230V solenoid
230V solenoid
10 930072
930074
930075
Drain cup upper half ELMC 1 cylinder, 2 cylinders
left hand side, 3 cylinders right hand side
Drain cup upper half ELMC 2 cylinders right hand
side, 90 middle
Drain cup upper half ELMC 3 cylinders left hand
side
11 930078 Drain cup lower half
12 930084 Water inlet hose
13 930150
930151
930152
930160
Inlet valve ELMC 1 small sized cylinder
Inlet valve ELMC 1 large sized cylinder
Inlet valve ELMC 3 cylinders
230V inlet valve solenoid
14 930081
930082
930083
Hose clamp Ø12x22mm
Hose clamp Ø16x27mm
Hose clamp Ø20x32mm
15 930135 Water feed hose Ø12/16mm (per meter)
