ELECTROVAP MC2 STEAM BATH
Installation - Step 3
1. We would recommend to use the steam hose from Devatec supply.
NB : when the steam generator is started up for the first time, a smell of burning may be smelt
especially when brand new hoses are installed. This is normal and will eventually dispel.
2. Steam hose selection :

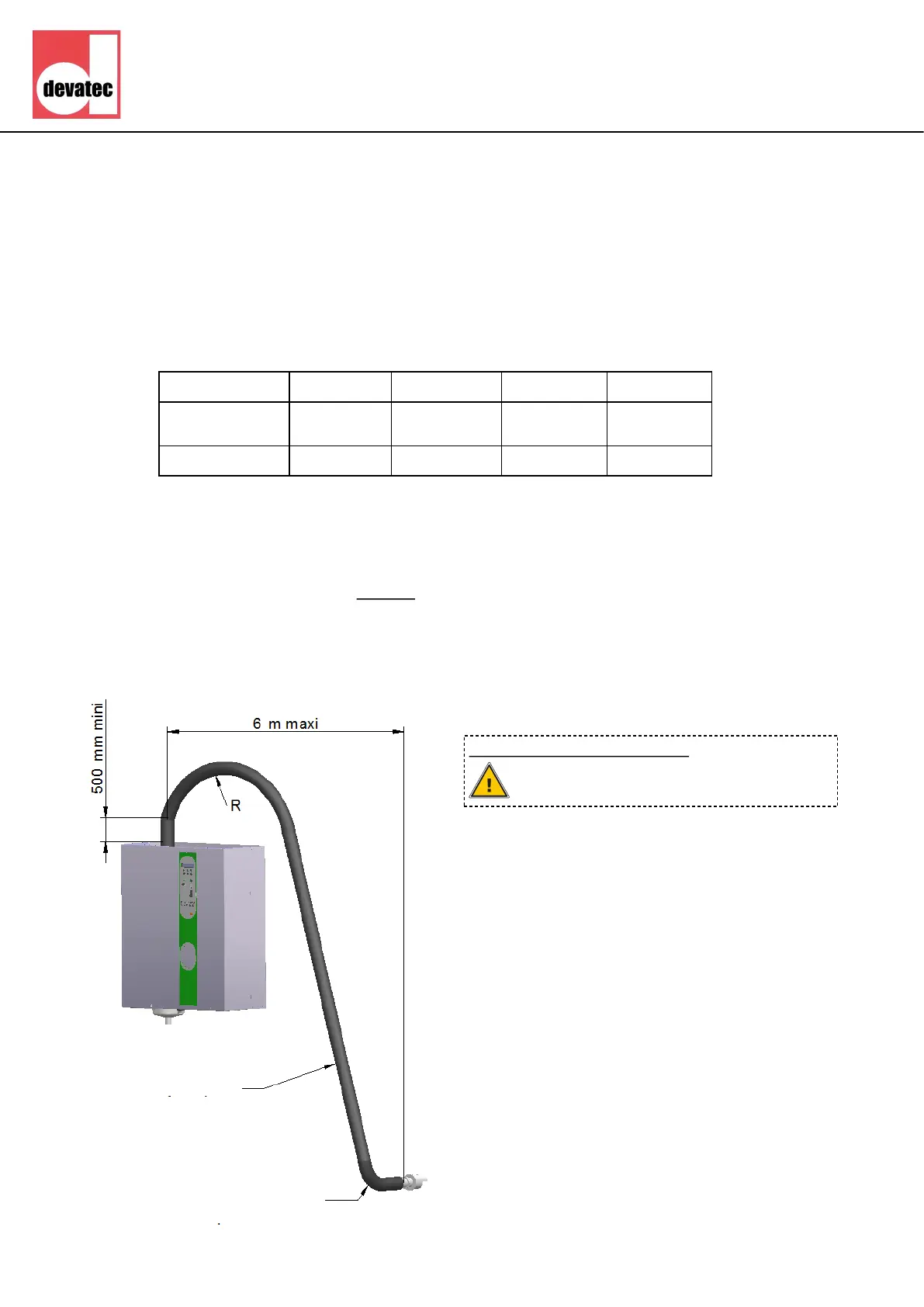

4. Please adhere to the recommendations given underneath for the installation of the steam
hose . A set of hose clamps is supplied for ensuring a correct installation.
The steam generator should be located within 6 m. of the steam distribution nozzle. If the
distance is superior to 6 m., insulated steel or copper pipe of a slightly larger diameter must be
used.
Steam outlet
ELMC model
1 SM CYL 1 LG CYL 2 CYL 3 CYL
Nb of steam
outlets
1 1 2 3
Steam outlet Ø
Ø 25mm Ø 40mm Ø 40mm Ø 40mm
Radius of bend for steam hose :
- Ø 25 mm hose = 250 mm minimal radius
- Ø 40 mm hose = 400 mm minimal radius
• SM CYL = small cylinder, LG CYL = large cylinder (s.a. electrical tables)
Steam hose
Do not create
pockets of water
