Field Service Ver. 1.0 Apr. 2005 14. Jam Display
119
ineo 161 ineo 210
Troubleshooting

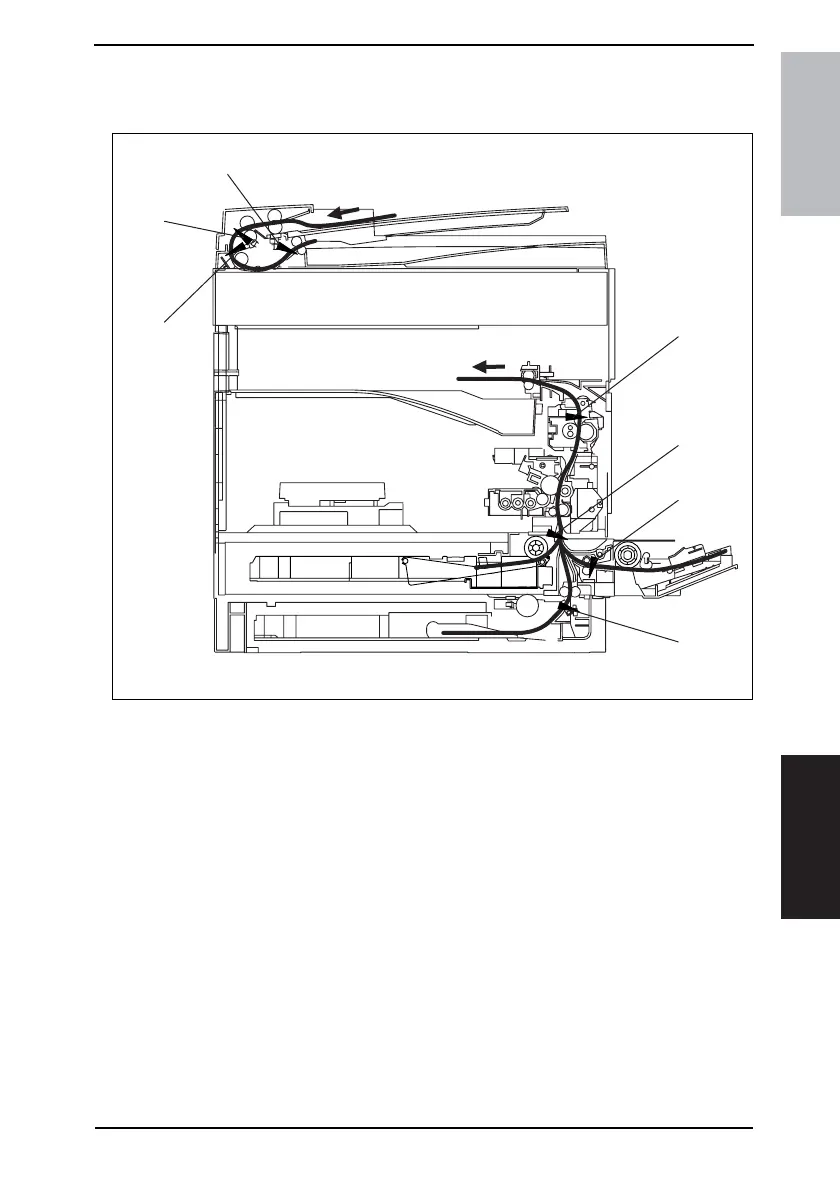

14.2 Sensor layout
14.2.1 System Mounted with DF-502, PF-502 and MB-501.
[1] Exit Paper Sensor (PC3) [5] Registration Sensor (PC3/AF)
[2] Synchronizing Roller Sensor (PC1) [6] Separator Sensor (PC4/AF)
[3] Paper Set Sensor/Bypass (PC2) [7] Paper Exit Sensor (PC5/AF)
[4] Paper Take-Up Sensor (PC12/PF)
1
2
5
6
7
3
4
4035T501AA
