Develop ineo 210 - Heater Relay Board (PWB-RY): 200 V Area Only; Pre-Image Transfer Board (PWB-R2)

Field Service Ver. 1.0 Apr. 2005 6. Other
37
ineo 161 ineo 210
Maintenance

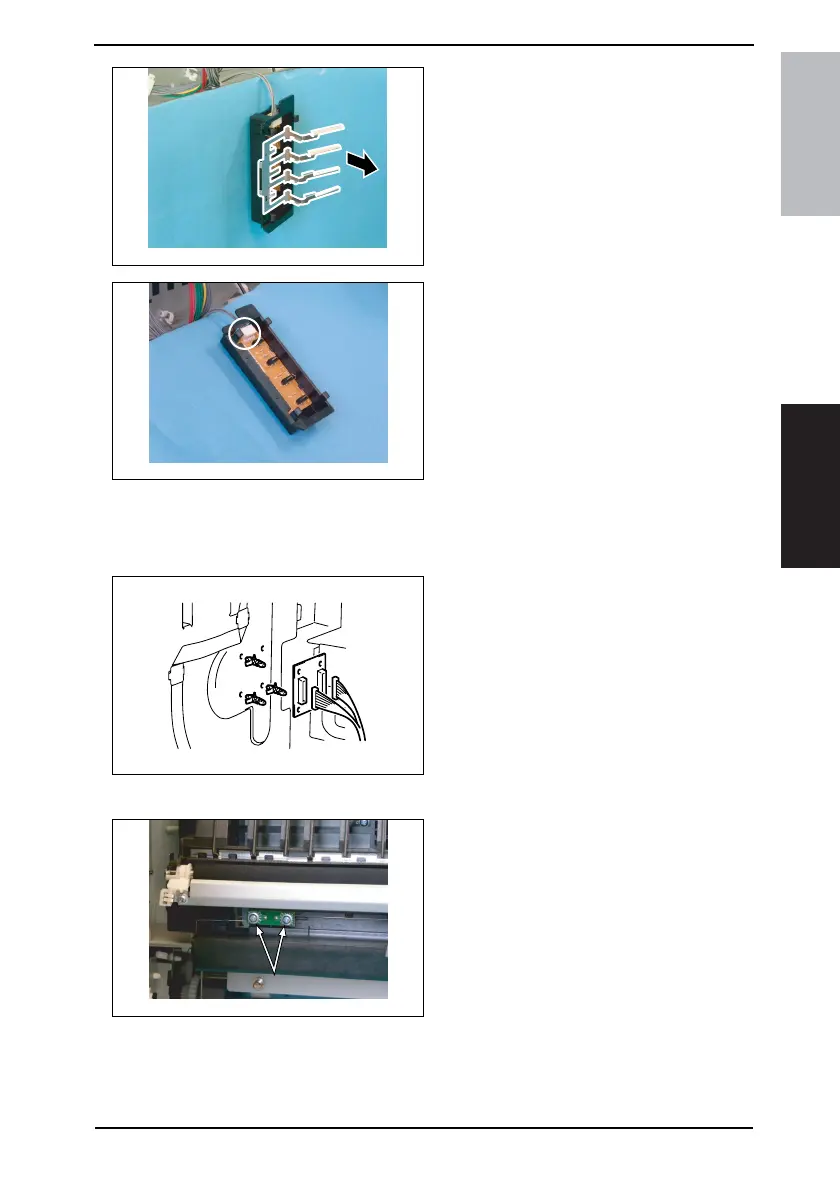

4. Remove the lever.
5. Unplug one connector and remove
the Paper Size Detecting Board.
6.3.7 Heater Relay Board (PWB-RY): 200 V area only
1. Remove the Front Cover and Left Cover.
☞ 31
2. Unplug two connectors and remove
three PWB supports and the Heater
Relay Board.
6.3.8 Pre-image Transfer Board (PWB-R2)
1. Open the Right Door.
2. Remove two screws and the Pre-
image Transfer Board.
4035D059AA
4035D060AA
4035D139AB
4035D061AA
