3. Periodical check Field Service Ver. 1.0 Apr. 2005
12
ineo 161
ineo 210
Maintenance

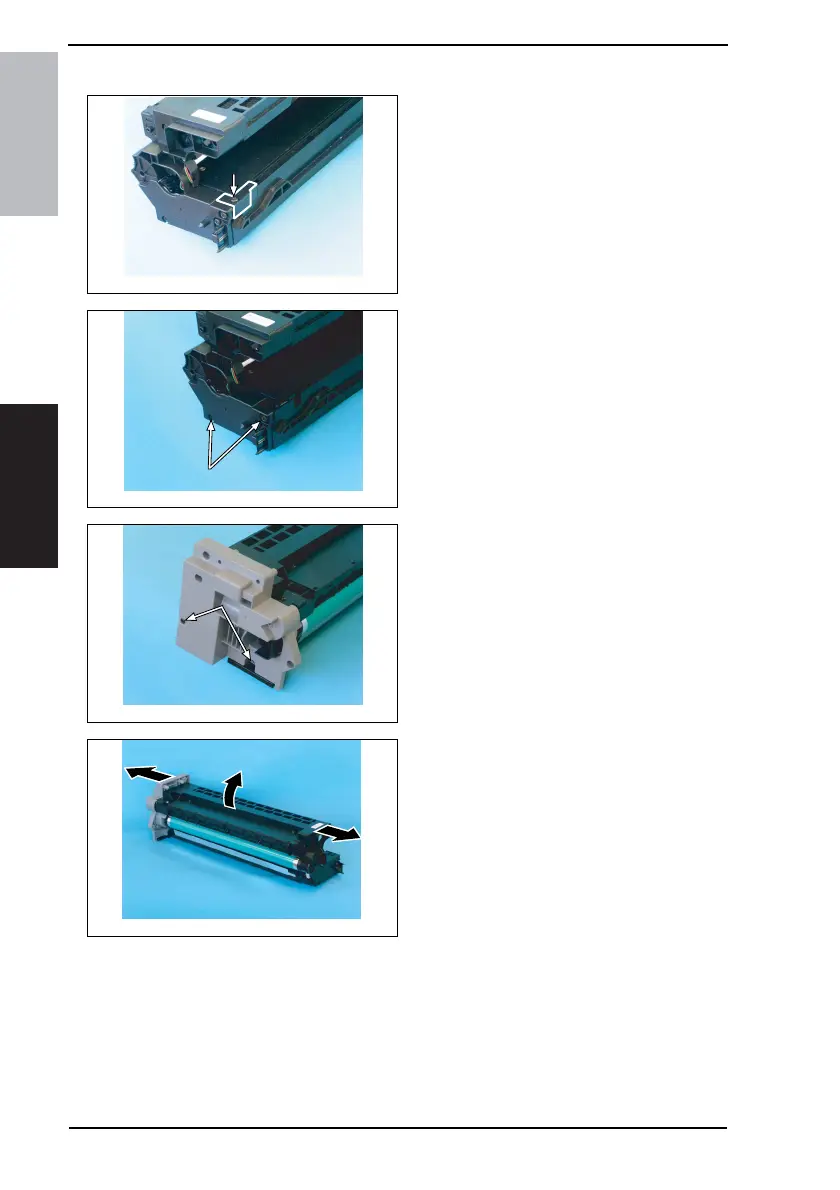

3.3.4 Disassembly of the IU
1. Remove one screw in the rear of the
IU and remove the harness cover.
2. Remove two screws in the rear of the
IU.
3. Remove two screws at the front of
the IU.
4. Widen flaps on both ends (marked
with A in the photo on the left) of the
Drum Assy in the direction of the
arrow and turn to take off the Devel-
oping Assy.
4035D022AA
4035D023AA
4035D024AA
4035D025AA
A
A
