Maintenance

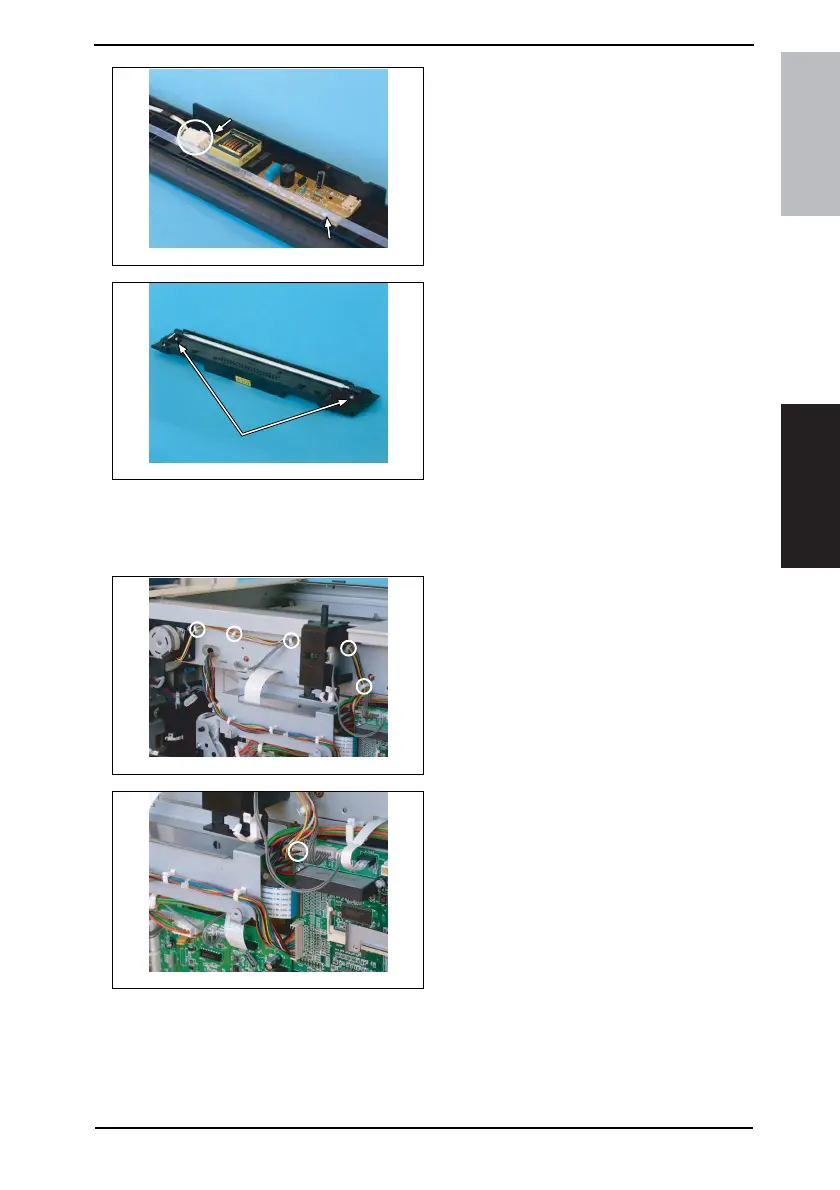

5. Remove two screws, unplug one
connector, and remove the Inverter
Board.
6. Remove two screws and the Expo-
sure Lamp.
6.3.16 Scanner Motor
1. Remove the Right Rear Cover.
☞ 31
2. Remove the Scanner Motor harness
from the five wiring saddles.
3. Unplug one connector from the Con-
trol Board.
4035D081AA
4035D082AA
4035D083AA
4035D084AA
