Develop ineo 210 - 3.3 Maintenance procedure (Periodical check parts)

3. Periodical check Field Service Ver. 1.0 Apr. 2005
10
ineo 161 ineo 210
Maintenance
3.3 Maintenance procedure (Periodical check parts)
NOTE
• The alcohol described in the cleaning procedure of Maintenance represents the
isopropyl alcohol.

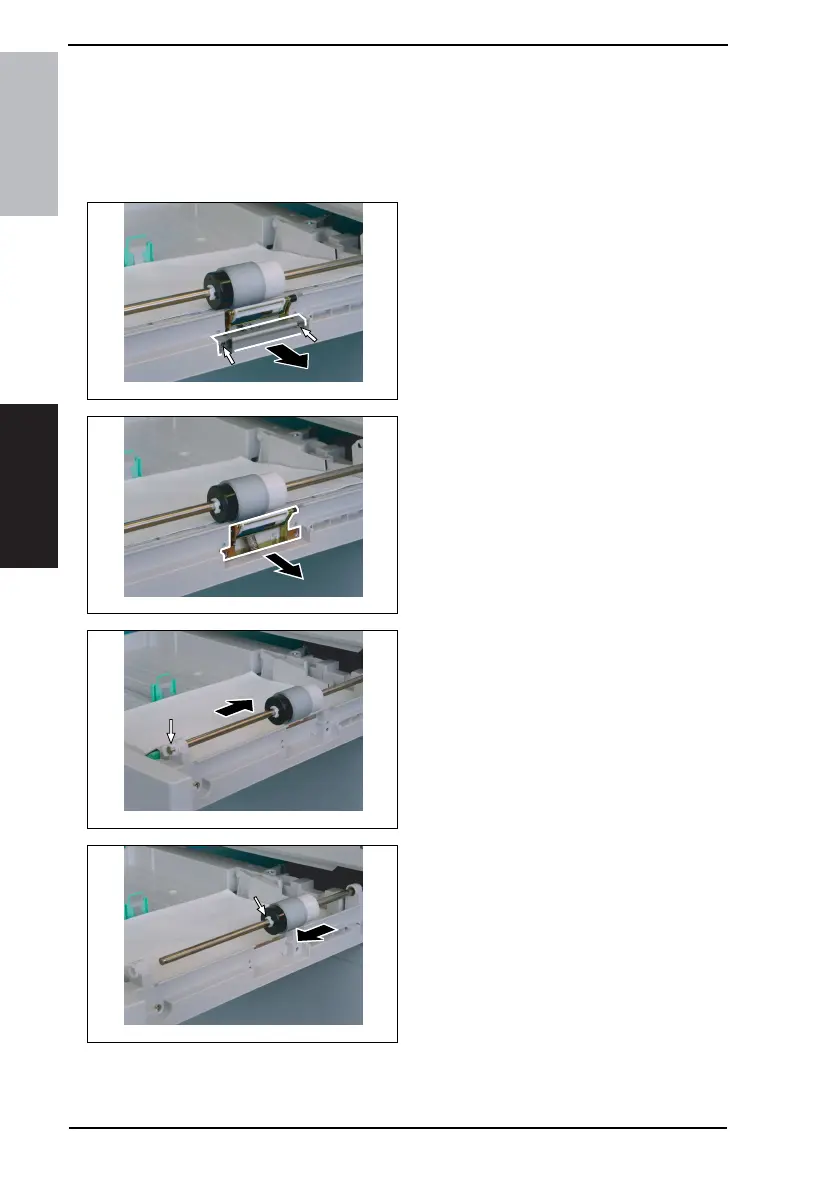

3.3.1 Replacing the Separation Roller Assy and Feed Roller
1. Slide out the Paper Feed Tray/1.
2. Remove two screws and the mount-
ing bracket.
3. Remove the Separation Roller Assy.
4. Press down the Paper Lifting Plate.
5. Snap off one C-clip from the Feed
Roller Assy.
6. Slide the Feed Roller Assy to the
rear and pull it off the Bearing at the
front.
7. Snap off one C-clip and remove the
Feed Roller.
4035D001AB
4035D002AA
4035D003AB
5
6
4035D004AA
