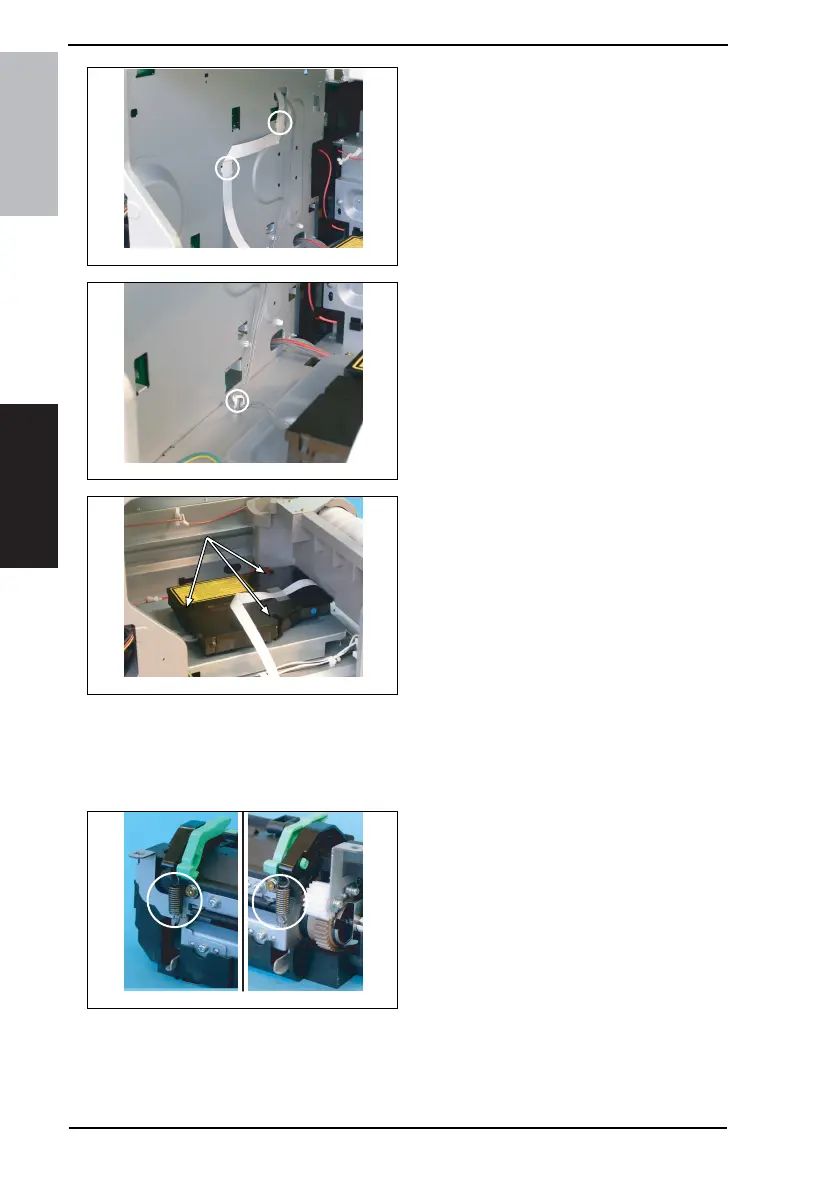

3. Remove two cable holders of the flat
cable.
4. Remove the harness from one wiring
saddle.
5. Remove three screws (with springs)
and the PH Unit.
6.3.13 Disassembly of the Fusing Unit
A. Removal of the Thermistor and Paper Separator Fingers
1. Remove the Fusing Unit.
☞ 19
2. Remove the pressure springs on
both ends of the unit.
4035D067AA
4035D068AA
4035D069AA
4035D070AA
