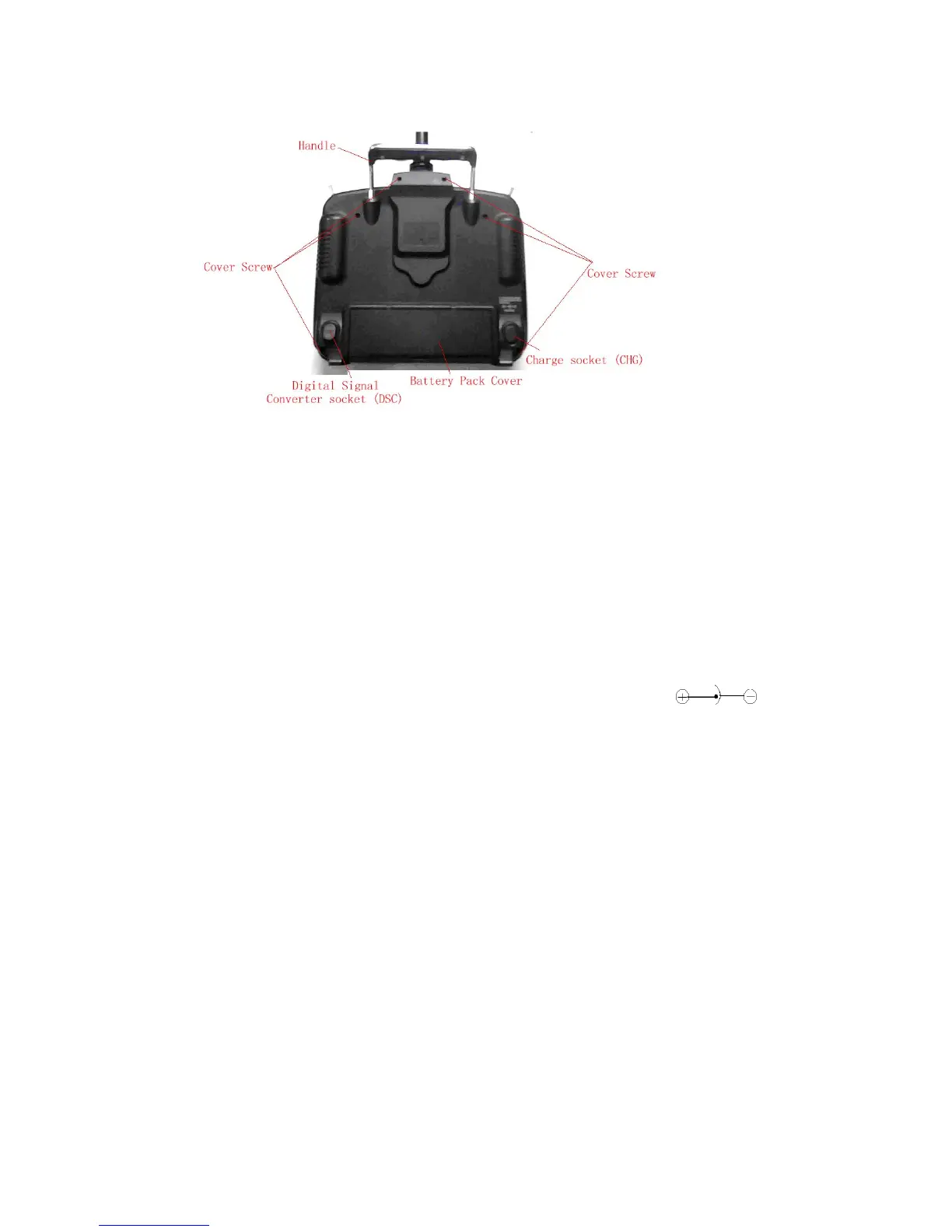

4.2 Back Cover Indicator Diagram
1． Handle
2. Cover Screw
3.Digital Signal Converter socket (DSC): used for simulator flight practice via
computer (You need a software and its dongle which are available in hobby shops)，
and for training.
4. Battery Pack Cover
5. Charge socket (CHG): input DC at 12V, Current 50MAH； Polarity:
