5.1 Stick Length Ajustment

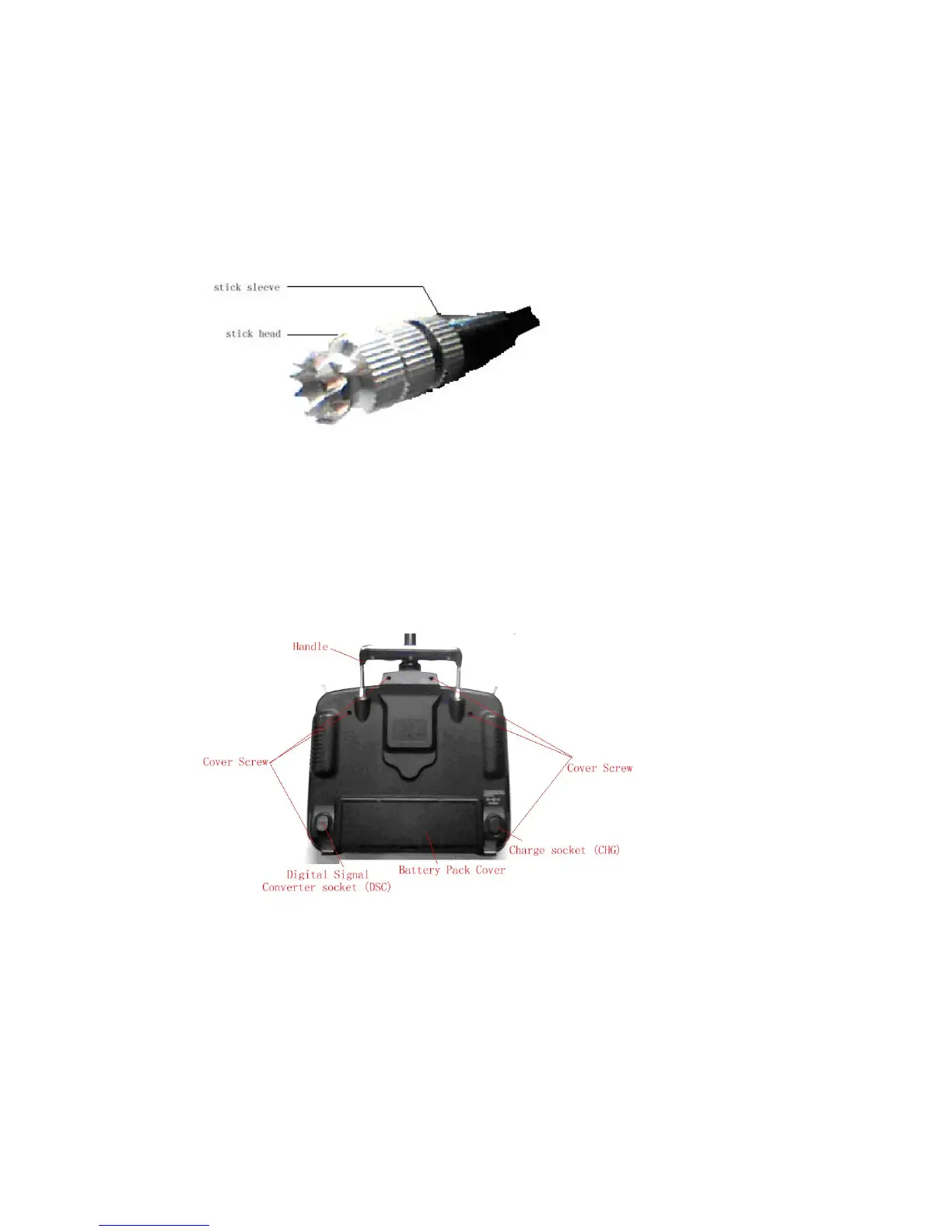

Prolong the stick length: CCW rotate the stick head until the length you hope，and then
CCW tighten the stick sleeve；
Shorten the stick length: CW rotate the stick sleeve until the length you hope，and then
CW tighten the stick head.
5.2 Stick Tention Adjustment
Use the screw driver to loosen the 6 screws in the back cover, take down the base plate as
below:
Find the inside structure of the left and right throttle stick as below. Use the cross
screw driver adjust the screw F and G, clockwise will tighten the crew while
counterclockwise will loosen the screw; Cover the base plate after accomplishment.
