DEVO-7 Page 103 of 170
1）Press R or L to select types , there are NORMAL,Flaperon, DLETA,make the wing
type blinking Choose the desired wing type.

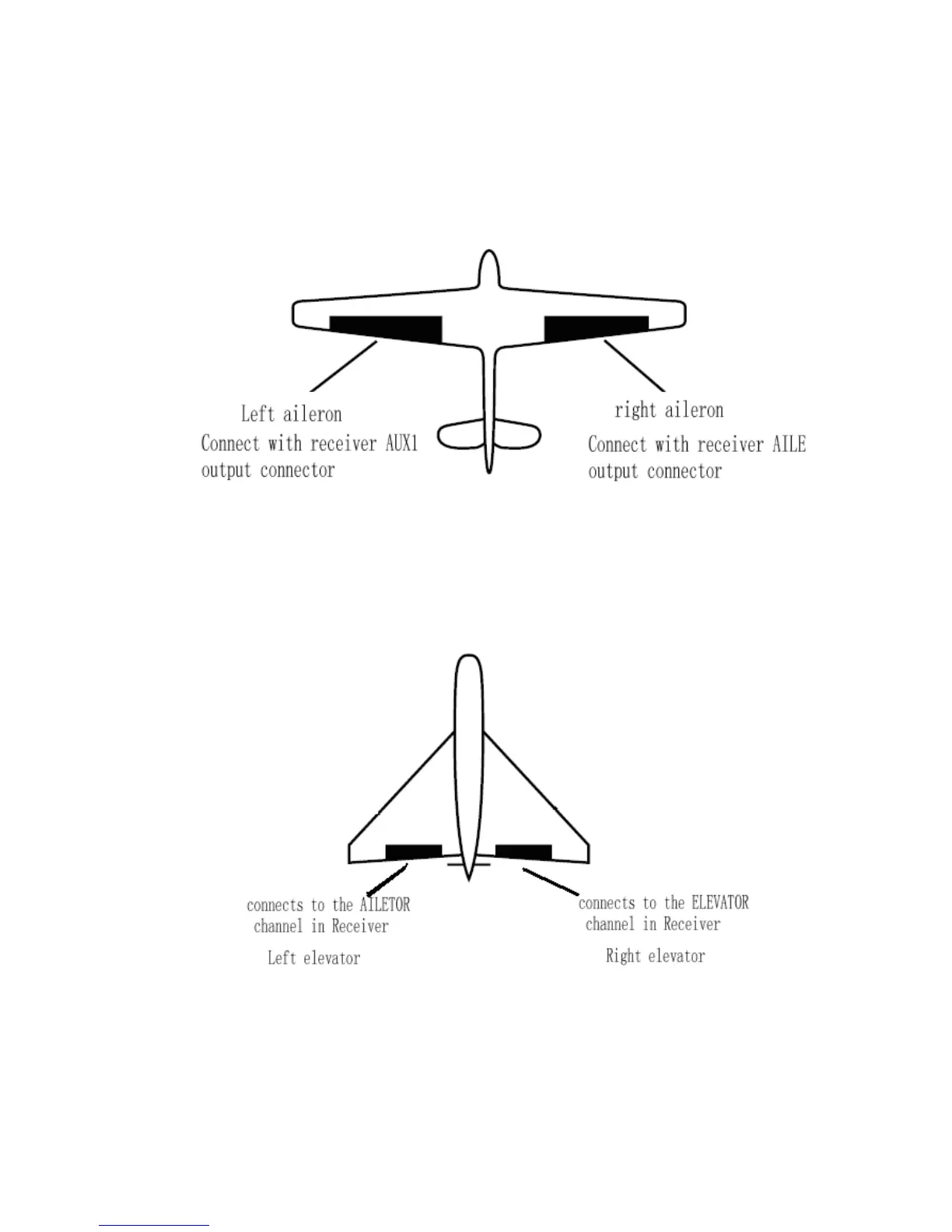

Below is the graphics for the servos location of the Flap and Aileron Type.
1.1) Flaperon
Below is the graphics for the servos location of the Flap and Aileron
1.2）DELTA
Below is the graphics of the servos location of the Delta Type.
connects to the ELEVRON channel in Receiver
