2. Create an IPsec endpoint interface named ipsec_endpoint2:

a. Zone set to Internal.

b. Device set to Ethernet: Loopback.

c. IPv4 Address set to the IP address of the local GRE tunnel, 172.30.0.2/32.

3. Create a GRE tunnel named gre_tunnel2:

a. Local endpoint set to the IPsec endpoint interface, Interface: ipsec_endpoint2.

b. Remote endpoint set to the IP address of the GRE tunnel on IX14-1, 172.30.0.1.

4. Create an interface named gre_interface2 and add it to the GREtunnel:

a. Zone set to Internal.

b. Device set to IP tunnel: gre_tunnel2.

c. IPv4 Address set to a virtual IP address on the GRE tunnel, 172.31.1.1/30.

Configuration procedures

Configure the IX14-1 device

Task one: Create an IPsec tunnel

WebUI

1. Log into the IX14 WebUI as a user with full Admin access rights.

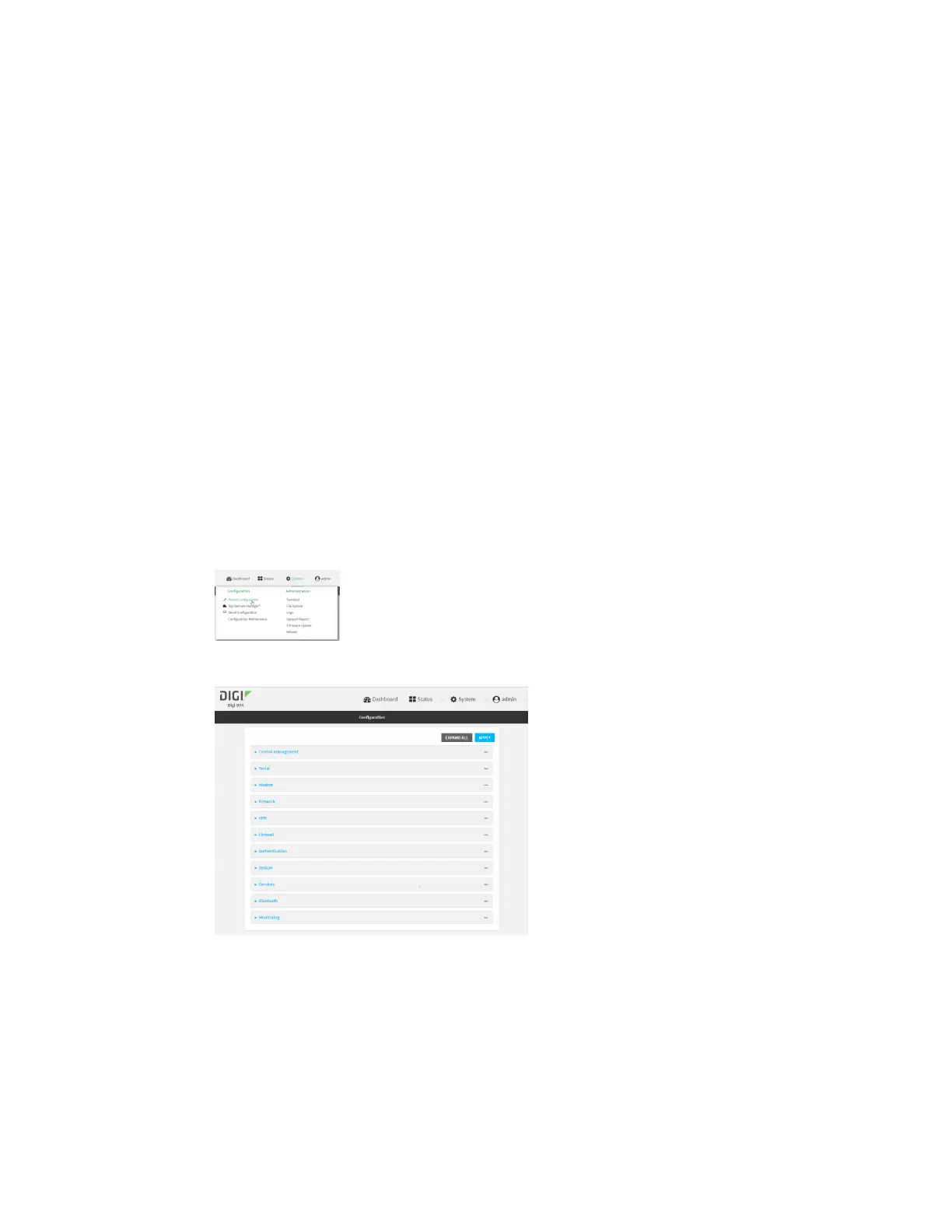

2. On the menu, click System. Under Configuration, click Device Configuration.

The Configuration window is displayed.

3. Click VPN > IPsec > Tunnels.
