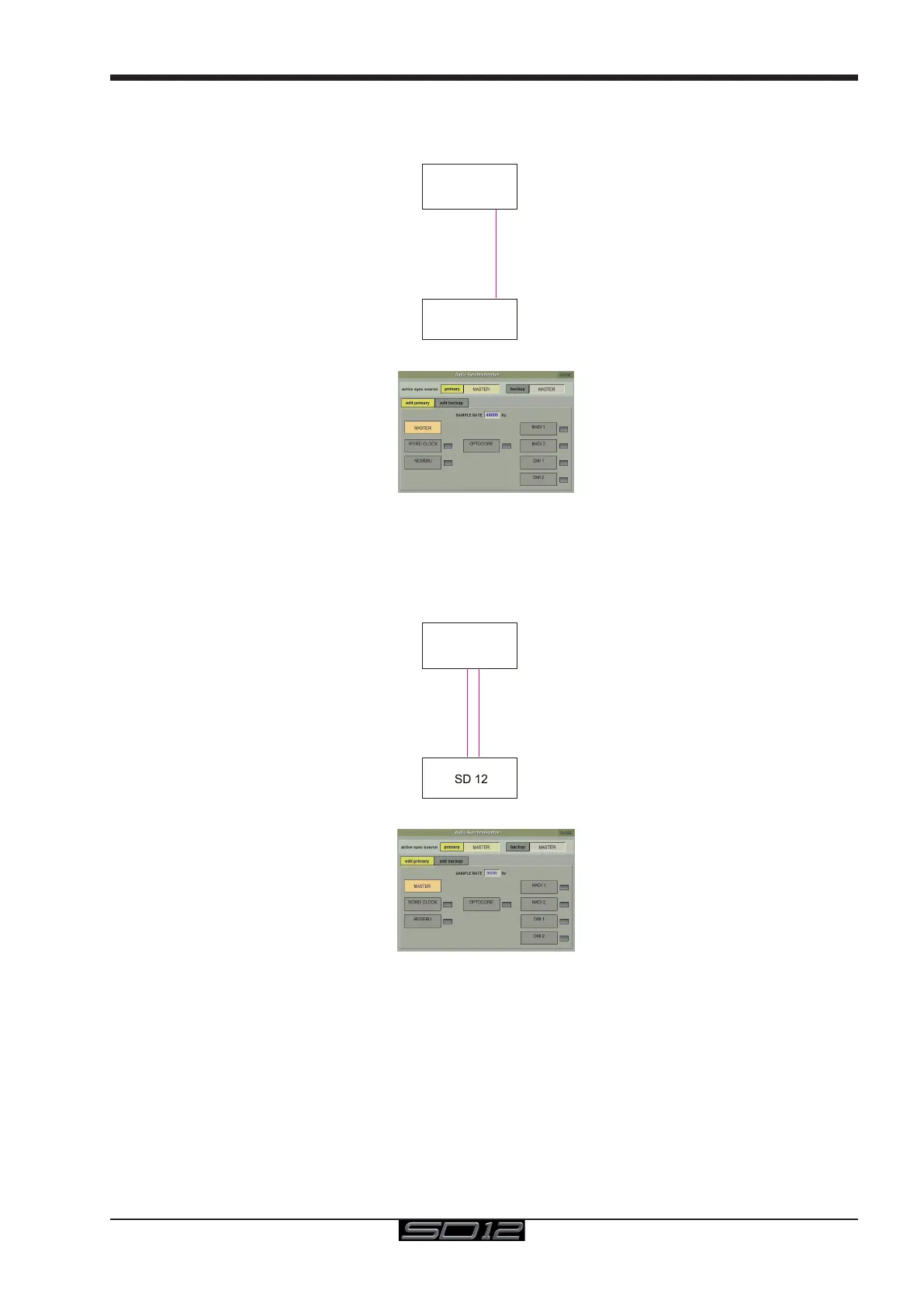

DMI MADI C to D2-Rack at 48KHz
Connect DMI card Cat5e socket A to D2-Rack Cat5e Main socket
D2-Rack
Single SD 12 to D2-Rack with DMI MADI C Card at 48KHz
DMI MADI C PORT A
IN/OUT
SINGLE CAT5e
MAIN MADI
CONNECTION
Audio Sync = MASTER
SD 12
DMI MADI C to D2-Rack at 96KHz
Connect DMI card Cat5e socket A to D2-Rack Cat5e MAIN socket
Connect DMI card Cat5e socket B to D2-Rack Cat5e AUX socket
D2-Rack
Single SD 12 to D2-Rack with DMI MADI C Card at 96KHz
DMI MADI C PORT A
IN/OUT
DMI MADI C PORT B
IN/OUT
CAT5e
MAIN MADI
CONNECTION
CAT5e
AUX MADI
CONNECTION
Audio Sync = MASTER
